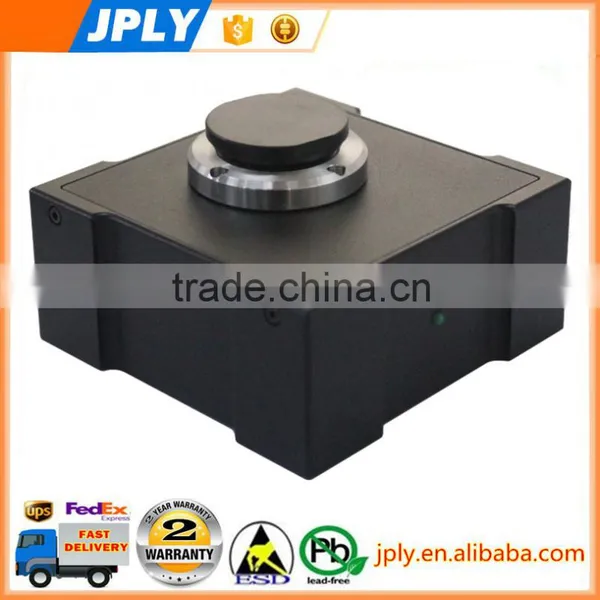

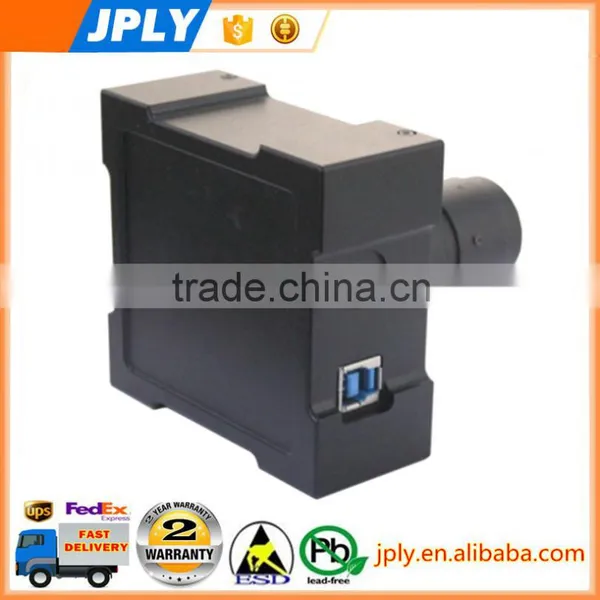

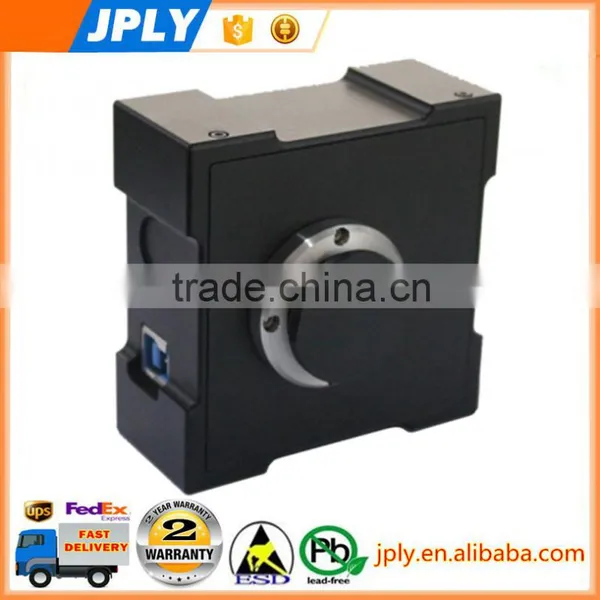

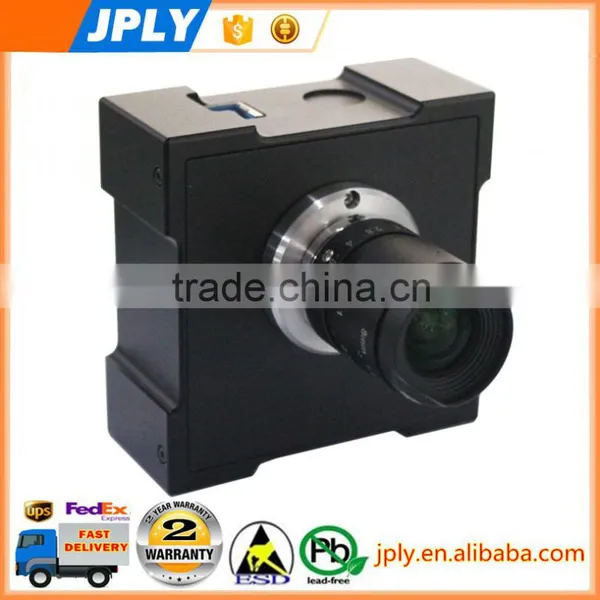

Fluorescent Imaging Global Shutter USB3.0/USB2.0 interface biological microscope camera
| Software Name | Introduction of software main function |
|
SpectrumSee
Image Analysis Software
|
SpectrumSee image analysis software with modular designing, including single snap, video record, adjust contrast, adjust brightness, adjust saturation, adjust gamma, adjust gain, auto exposure time control, manual exposure time control, manual white balance, flip, gray scale, adjust clarity, adjust sensitivity, manual spatial calibration, arrow, text note, scale bar, line measurement, angle measurement, circle measurement(multi-spots), rectangle measurement(multi-spots), polygon measurement (sides fitting ), arc measurement(sides fitting ), region measurement, curve measurement, results export, smooth, sharpness, rotation, inverse, image crop, image resize, image histogram, RGB separation, RGB combine, image merge, image stitching, recolor, image align, image remap, merge, probe color pre-set, user probe set, zoom in, zoom out, image fit window,and Non-Stretch display,etc. |
Want more Software details? Click here( https://www./product-detail/Multi-language-support-Microscope-Measurement-Sofware_60497966095.html )
Real Imaging taken by ICX285(S1TC01C-C):
Spectral Response figure:
SENSOR Model |
2/3’’ SONY ICX285 |
SENSOR Dimension |
6.45umx6.45um |
Resolution |
1360*1040,2x2bin |
Scan Method |
Progressive scan |
Sensibility |
1.24V |
Frame rate |
26fps@1360x1040,40fps@680x520 |
Shutter |
Global shutter |
SNR |
74dB |
Spectral Response |
400nm~1000nm |
Data interface |
USB3.0 |
Power |
DC5V± 5% |
Current |
≈400 mA |
White balance |
White balance |
Auto Exposure Control |
36μ~30mine |
Lens Mount |
CS Interface optional C |
Busy Indicator |
LED |
Working temperature |
0℃~60℃ |
Working humidity |
10%-90%RH(Without condensation ) |
Software |
spectrumsee image analysis software with modular designing,including image previewing, capturing,analysing,processing,sharing fuction.It gives users the latest image processing experiences.The software fuction:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc |
All of our cameras model:
| G1TD01C-M | 1/2”,1.3Mp Monochrome Cmos USB 3.0 Camera |
| G1TD03C-C | 1/2”,3.0Mp Color Cmos USB 3.0 Camera |
| G1TD05C-M/C | 1/2.5”,5.0Mp Color/Monochrome Cmos USB 3.0 Camera |
| G1TD10C-C | 1/2.3”,10.0Mp Color Cmos USB 3.0 Camera |
| G1TD14C-C | 1/2.3”,14.0Mp Color Cmos USB 3.0 Camera |
| G1TC030C-C/M | 1/4”,0.3Mp Color/Monochrome CCD USB 3.0 Camera |
| G1TC080C-C/M | 1/3”,0.8Mp Color/Monochrome CCD USB 3.0 Camera |
| G1TC01C-C/M | 1/2”,1.4Mp Color/Monochrome CCD USB 3.0 Camera |
| H1TD01C-C/M | 1/1.8”,1.3Mp Color/Monochrome Cmos USB 3.0 Camera(machine vision) |
| H1TD02C-C/M | 1/1.8”,2.0Mp Color/Monochrome Cmos USB3.0 Camera(machine vision ) |
| S1TC01C-C/M | 2/3”,1.4Mp Color/Black&white CCD USB 3.0 Camera for fluorescence imaging |
| D8 | 8.1Mp Color Auto-focus camera |
| H1TB02C | 1/1.9" 2.3Mega CMOS back-illuminated BSI Color(high sensibivity) |
General Application:
• Optical charactor recognize
•Machine vision and inspection
• Industrial Inspection and measurment
• Microscopy imaging and analysis
• Educational demonstration
• Lab automation
• Medical research
Camera size:
Packing method |
Every single camera is packed with white foam inside, and packed with carton box outside. |
Packing list |
1PC * Camera body 1PC * USB3.0 Card 1PC * USB3.0 Cable 1~3 meter 1PC * CD with software and driver |
Shipping method |
FedEx Express/UPS/DHL/TNT, Air mail, Transportation by sea, or others convenient shipping carrier for you. |
Lead time |
within 5~7days after payment confirmed |
As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business. With quality and integrity at our core, we deliver best-in-class camera and related product. JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world class brand. We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
1.What's your main products?
Answer:We are specilized in microscope and industrial camera,fluorscence image,machine vision camera from 1.3Mp to
10.0Mp.
2.Can we customize camera?
Answer:of course,if you have any camera application,our professional engineer can offer the best solutions to you.
3.How about the after sale sevice?
Answer:We also guarantee the after-sale service time within 24 hours through email, Skype, WhatsApp, phone, or team-viewer.
4.Do you have camera for fluorescence & Bright field / dark field application in microscope?
Answer:yes,our ICX285 Camera is specilized for fluorescence& bright field/dark field application in microscope.
| Contact Person | Mickle Pei |
| Skype on line | nology |
| Trademanger | jply2016 |
| WhatsApp/wechat | +86-13512723595 |
| Telephone | +86-20-3807 7661 |
| 2067981639 | |
| Website on | https://jply.en./ |
| Website | /EN/Default.aspx |
If you are interested in our product, please do not hesitate to contact us!
