Home > Products > Cmos camera > New Design 10.0Mega 1/2.3'' CMOS Sensor Microscope Camera
New Design 10.0Mega 1/2.3'' CMOS Sensor Microscope Camera
- Guangzhou
You May Like
-
Fluorescence Imaging CCD Camera for Biological Cells Research
-
Anniversary Sale High Sensitivity Fluorescence Image Camera
-
1.4MP CCD Microscopic Telescope Eyepiece Camera With ICX285
-
High Fps Digital Color CCD Camera for Fluorescence Microscope
-
5th Anniversary Sale 2.3MP Fluorescence Imaging Microscopic Camera
-
26fps 1360x1040 CCD 1.4Mp Colour and Black&white Lab Test Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | JPLY | |
| Model Number | G1TD10C | Theory | Biological Microscope | |
| Drawtube | Monocular |
Product Description
Application Areas
1. Machine vision and inspection
2. Industrial Inspection and measurement
3. Microscopy imaging and analysis
4. Educational demonstration
5. Laboratory automation research
6. Medical research
7. Optical character recognize
Specifications
Image sensors | 1/2.3" CMOS Color |
Pixel size | 1.67μm*1.67μm |
Resolution | 3840*2478 |
Scan method | Progressive scan |
Sensibility | 0.31V/lux-sec 550nm |
Frame rate | 7fps@3664*2748 |
Shutter | Electronic Shutter |
SNR | 40.5dB |
SpectraI response | 400nm~1000nm |
Data interface | USB3.0 480Mb/s 1.8M Cable |
Power | DC5V± 5% |
Current | ≈200 mA |
White balance | Manual/Auto One-key white balance |
Auto exposure control | 49μs~3s,Manual/Auto exposure |
lens mount | C Mount |
Busy indicator | LED |
Working temperature | 0℃~60℃ |
Working humidity | 45%-85% |
Support systems | Windows XP(32bit/64bit)/Win 7(32bit/64bit)/Vista(32bit/64bit) |

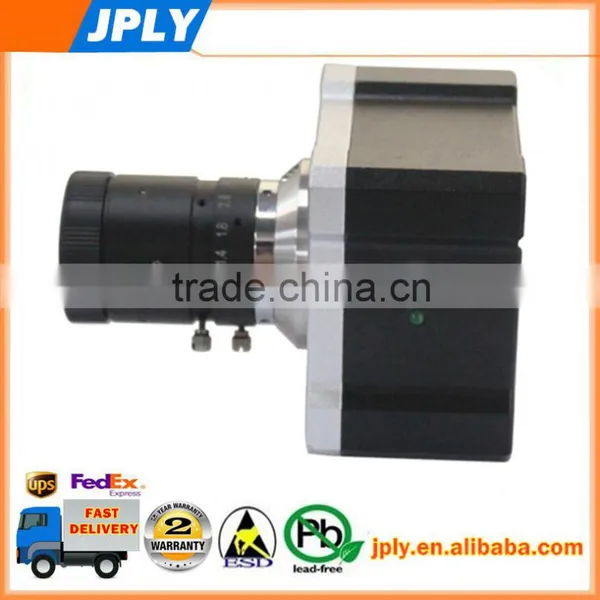

Camera outlook images
Spectral reponse
Camera size (mm)
Application Sample
| Packing method | Every single camera is packed with white foam inside, and packed with carton box outside. |
| Packing list | 1PC * Camera body 1PC * USB3.0 Card 1PC * USB3.0 Cable 1PC * CD with software and driver |
| Shipping method | FedEx Express/UPS/DHL/TNT, Air mail, Transportation by sea, or others convenient shipping carrier for you. |
| Lead time | within 5~7days after payment confirmed |
Packing images
Notes
| Software function | Image capturing, Time lapse, Measuring, Data exporting image mosaic, Depth of field overlaying, Text instruction inserting, etc,. |
| Software system | Linux, Windows7, Window8, Window10, Android, etc,. |
| Quality warranty | 2 years since you received the goods. |
(1) All of our camera come with free software and SDK, and if you require others OEM software, please
discuss with us any time !
(2) The software function including image capturing, time lapse, measuring, data exporting image
mosaic, depth of field overlaying, text instruction inserting,etc.
(3) If you have other camera application requirement, our professional engineer can offer the
best solution for you ! We can offer customized service !
(4) If you have any target price, please let us know, so we can we adjust to you if we can do,
because we did not want to lost a nice customer like you !
(5) We offer after-sale service within 24 hours through email, Skype, WhatsApp, Telephone,
or Team-viewer.
(6) All our product is guaranteed for no less than 2 years, since you received the goods !
