Help CenterMT9P031 Mono 5.0Mp Camera for Machine Vision and Inspection
Related Products
-
MT9T031 Cmos 3.0Mp 13fps Full HD Resolution Camera for Machine Vision and InspectionUS$ 109 - 129MOQ: 1 Piece -
1/2.5" Black and White 5.0 Mega CMOS Usb3.0 CameraUS$ 149 - 149MOQ: 1 Piece
-
High Speed USB3.0 3.0Mp CMOS Color Microscope CameraUS$ 129 - 129MOQ: 1 Piece
-
High Speed USB3.0 1.3Mp CMOS Mono Microscope CameraUS$ 109 - 109MOQ: 1 Piece
-
High Speed USB3.0 5.0Mp Color CMOS Microscope CameraUS$ 149 - 149MOQ: 1 Piece
Image sensors |
1/2.5" Color 5.0 Mega CMOS |
Pixel size |
2.2μm*2.2μm |
Resolution |
2592*1944 |
Scan method |
Progressive scan |
Sensibility |
1.4V/lux-sec 550nm |
Frame rate |
14fps@2592*1944 |
Shutter |
Electronic Shutter |
SNR |
44dB |
SpectraI response |
400nm~1000nm |
Data interface |
USB3.0 5Gbps 1.8M Cable |
Power |
DC5V± 5% |
Current |
≈500 mA |
White balance |
white balance |
Auto exposure control |
37μs~2.4s,Manual/Auto exposure |
lens mount |
C Mount |
Busy indicator |
LED |
Working temperature |
0℃~600℃ |
Working humidity |
0%-85% |
Software |
spectrumsee image analysis software with modular designing,including image previewing, capturing,analysing,processing,sharing fuction.It gives users the latest image processing experiences.The software fuction:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc |

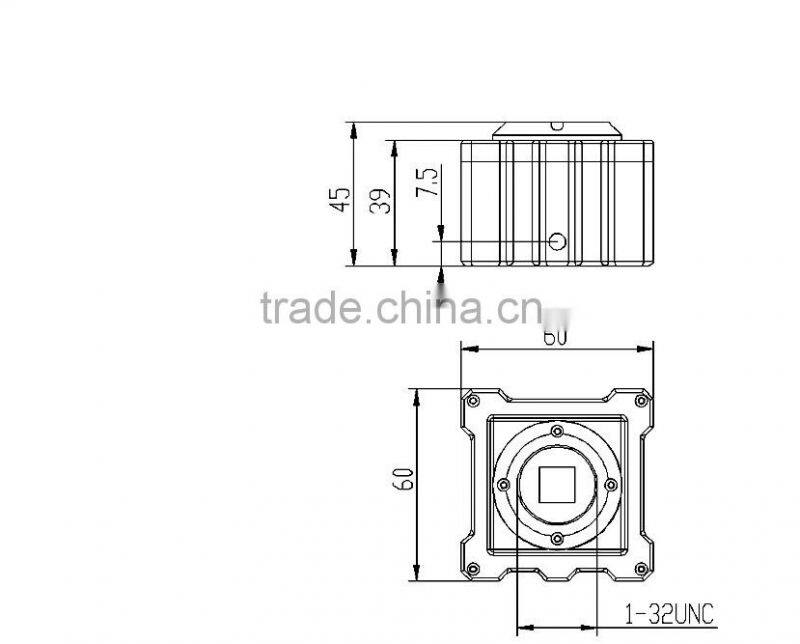

Camera Size:

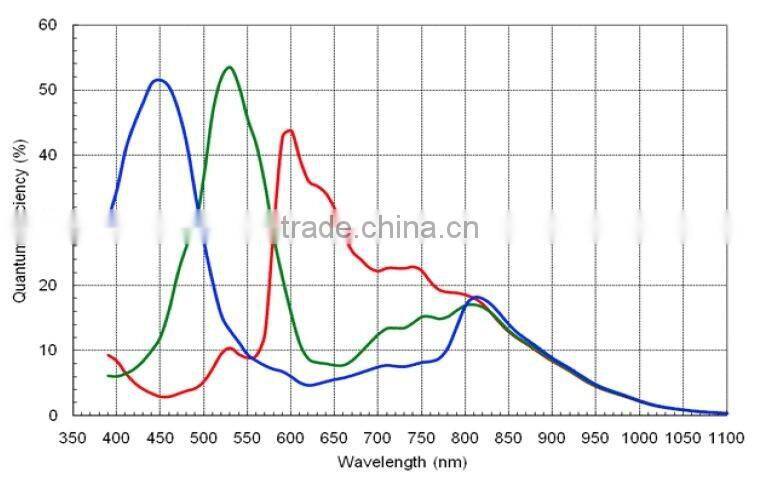

Spectral Response Figure:
Really Imaging:
As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business. With quality and integrity at our core, we deliver best-in-class camera and related product. JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world class brand. We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards
1.All of our camera come with free software ,and any OEM software you need ,please discuss with us any time !
2.The software function:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc.
3.If you have any camera application ,our professional engineer can offer the best solution to you !
4.If you have any target price ,please let us know ,and we will adjust to you if we can do ,as we did not want to lost the good customer like you !
5.We also guarantee the after-sale service time within 24 hours through email, Skype, WhatsApp, phone, or team-viewer.
More information also can visit our website:/EN/Default.aspx
