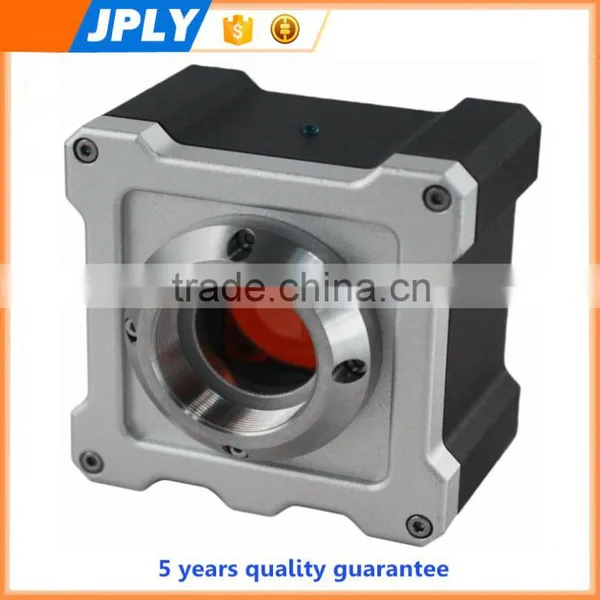

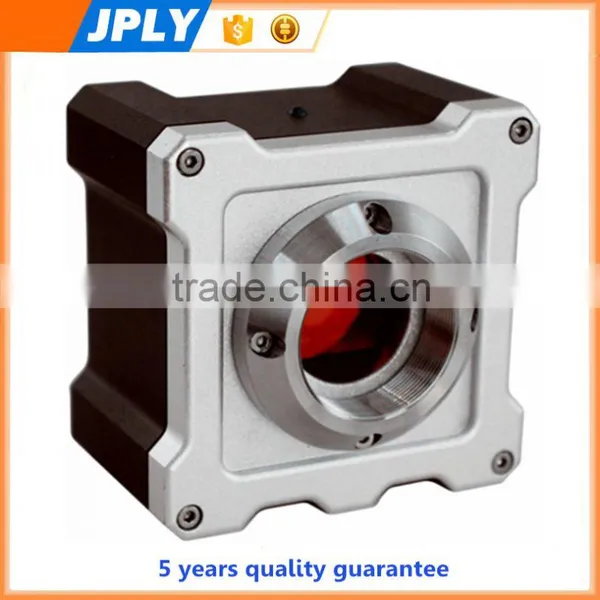

G1TC080C 0.8Mega Color/BW USB3.0 CCD Camera
- 1000 Piece / Pieces per Month
- Guangzhou
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JPLY | Model Number: | G1TC080C |
Theory: | Biological Microscope | Drawtube: | Trinocular |
Product Description
Camera Detail Specification
Sensor Model | 1/3" CCD Color/ B/w |
Sensor Dimension | 4.65μmx4.65μm |
Frame rate | 26fps |
Scan Method | Progressive scan |
Sensibility | 0.4V/lux-sec(550nm) |
Resolution | 30fps@1024x768 |
Shutter | Global Shutter |
Dynamic Rate | 61dB |
SNR | 44dB |
Spectral Response | 400nm~700nm |
Data Interface | USB3.0,5Gbps,3M Cable |
Power | DC5V± 5% |
Current | ≈500 mA |
White Balance | Manual /Auto /a key white balance |
Auto exposure Control | 26μs~20min,Manual/Auto exposure |
Lens Mount | C Mount |
Busy Indicator | LED |
Working temperature | 0℃~60℃ |
Working humidity | 0%-85% |
Notes for free software and technical support
SpectrumSee Software function | Image capturing, Time lapse, Measuring, Data exporting image mosaic, Depth of field overlaying, Text instruction inserting, etc,. |
Software system | Linux, Windows7, Window8, Window10, Android, etc,. |
Quality warranty | 2 years since you received the goods. |
Camera size(mm)
Application Sample
Packing method
| Every single camera is packed with white foam inside, and packed with carton box outside. |
Packing list |
1PC * Camera body 1PC * USB3.0 Card 1PC * USB3.0 Cable 1PC * CD with software and driver
|
Shipping method
| FedEx Express/UPS/DHL/TNT, Air mail, Transportation by sea, or others convenient shipping carrier for you. |
Lead time
| within 5~7days after payment confirmed |
Packing images
1. Why you will choose us?
Answer:
The company consistently delivers ODM/OEM products that are innovative, easy to integrate,
cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world
class brand. We ensure that customers stay with us over multiple product generations by consistently
meeting their demands for cutting-edge technology, technical consulting services, integration assistance
and the highest manufacturing standards.
2. Delivery time.
Answer:
the delivery date within 7 working days after payment confirmed.
3. And is there any case for industry such as LCD or Semiconductor inspection line?
Answer:
Yes,our camera can suitable for industry such as LCD or Semiconductor inspection line,
and we can recommend the best camera for your reference.
4. Can you forward me the price-list of your range of cameras suitable for Brightfield, Darkfield
and Phase Contrast microscopy?
Answer:
We are speccilized in mircoscope and industrial camera,we can send some really image
for your reference.
5. What's your main products?
Answer:
We are specilized in microscope and industrial camera,fluorscence image,machine vision camera
from 1.3Mp to 10.0Mp.
