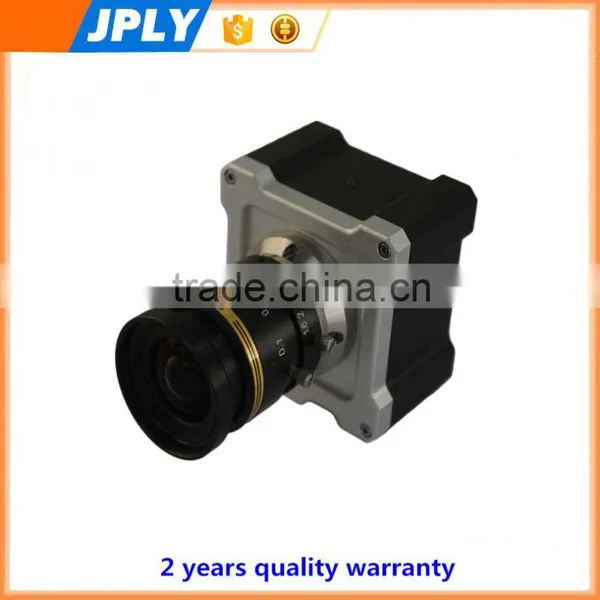

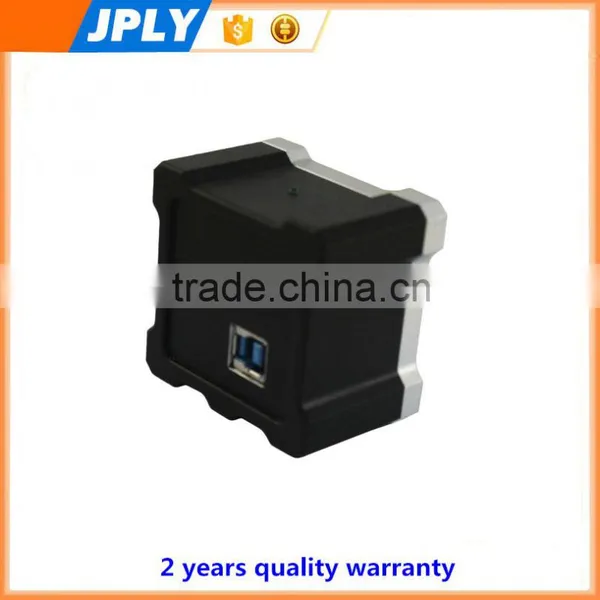

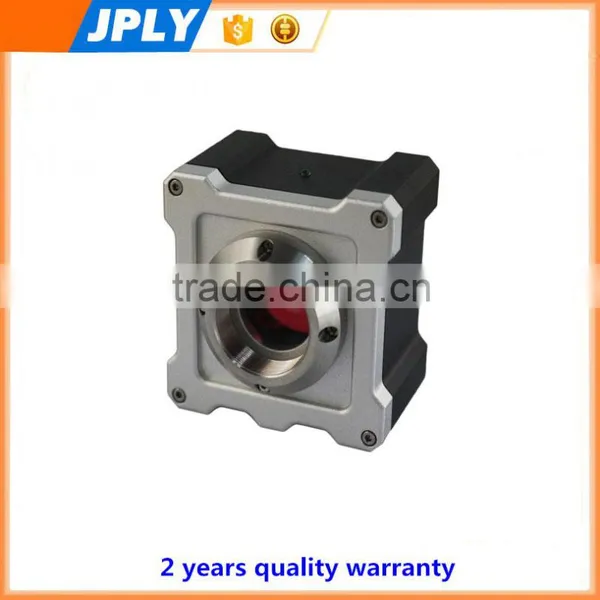

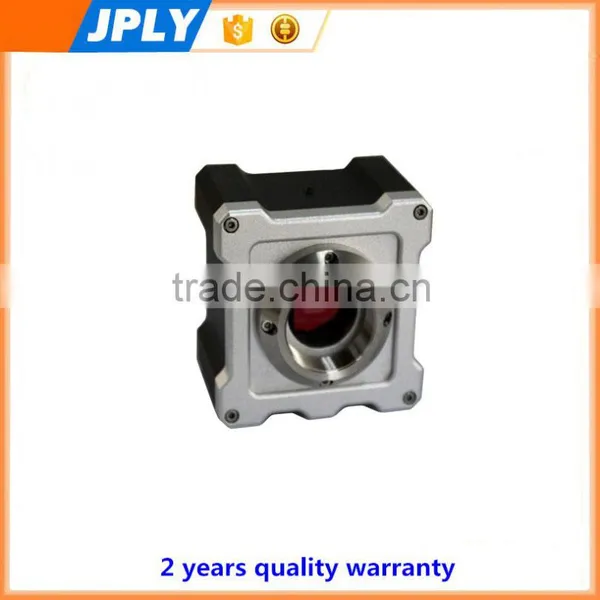

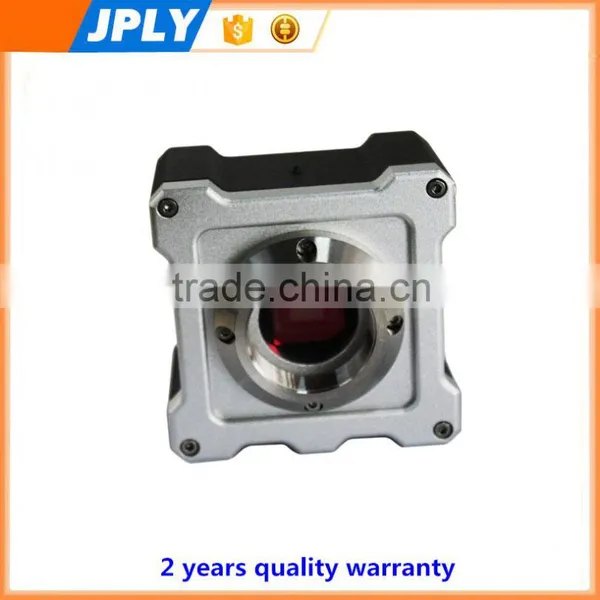

High Speed Scanning CCD Sensor Mono Scan Camera
Application:
1. Machine vision and inspection
2. Industrial Inspection and measurement
3. Microscopy imaging and analysis
4. Educational demonstration
5. Laboratory automation research
6. Medical research
7. Optical character recognize
Sensor Model |
1/2" CCD Color/ B/w |
Sensor Dimension |
4.5μmx4.5μm |
Frame rate |
26fps |
Scan Method |
Progressive scan |
Sensibility |
0.4V/lux-sec(550nm) |
Resolution |
26fps@1360x1040 |
Shutter |
Global Shutter |
Dynamic Rate |
61dB |
SNR |
44dB |
Spectral Response |
400nm~700nm |
Data Interface |
USB3.0,5Gbps,3M Cable |
Power |
DC5V± 5% |
Current |
≈500 mA |
White Balance |
Manual /Auto /a key white balance |
Auto exposure Control |
36μs~30min,Manual/Auto exposure |
Lens Mount |
C Mount |
Busy Indicator |
LED |
Working temperature |
0℃~60℃ |
Working humidity |
0%-85% |
All of our cameras model:
| G1TD01C-M | 1/2”,1.3Mp Monochrome Cmos USB 3.0 Camera |
| G1TD03C-C | 1/2”,3.0Mp Color Cmos USB 3.0 Camera |
| G1TD05C-M/C | 1/2.5”,5.0Mp Color/Monochrome Cmos USB 3.0 Camera |
| G1TD10C-C | 1/2.3”,10.0Mp Color Cmos USB 3.0 Camera |
| G1TD14C-C | 1/2.3”,14.0Mp Color Cmos USB 3.0 Camera |
| G1TC030C-C/M | 1/4”,0.3Mp Color/Monochrome CCD USB 3.0 Camera |
| G1TC080C-C/M | 1/3”,0.8Mp Color/Monochrome CCD USB 3.0 Camera |
| G1TC01C-C/M | 1/2”,1.4Mp Color/Monochrome CCD USB 3.0 Camera |
| H1TD01C-C/M | 1/1.8”,1.3Mp Color/Monochrome Cmos USB 3.0 Camera(machine vision) |
| H1TD02C-C/M | 1/1.8”,2.0Mp Color/Monochrome Cmos USB3.0 Camera(machine vision ) |
| S1TC01C-C/M | 2/3”,1.4Mp Color/Black&white CCD USB 3.0 Camera for fluorescence imaging |
| D8 | 8.1Mp Color Auto-focus camera |
| H1TB02C | 1/1.9" 2.3Mega CMOS back-illuminated BSI Color(high sensibivity) |
Spectral Response Figure:
Really Imaging:
As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business. With quality and integrity at our core, we deliver best-in-class camera and related product. JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world class brand. We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards
Our factory
| Software Name | Introduction of software main function |
|
SpectrumSee
Image Analysis Software
|
SpectrumSee image analysis software with modular designing, including single snap, video record, adjust contrast, adjust brightness, adjust saturation, adjust gamma, adjust gain, auto exposure time control, manual exposure time control, manual white balance, flip, gray scale, adjust clarity, adjust sensitivity, manual spatial calibration, arrow, text note, scale bar, line measurement, angle measurement, circle measurement(multi-spots), rectangle measurement(multi-spots), polygon measurement (sides fitting ), arc measurement(sides fitting ), region measurement, curve measurement, results export, smooth, sharpness, rotation, inverse, image crop, image resize, image histogram, RGB separation, RGB combine, image merge, image stitching, recolor, image align, image remap, merge, probe color pre-set, user probe set, zoom in, zoom out, image fit window,and Non-Stretch display,etc. |
Want more Software details? Click here( https://www./product-detail/Multi-language-support-Microscope-Measurement-Sofware_60497966095.html )
| Contact Person | Mickle Pei |
| Skype on line | nology |
| Trademanger | jply2016 |
| WhatsApp/wechat | +86-13512723595 |
| Telephone | +86-20-3807 7661 |
| 2067981639 | |
| Website on | https://jply.en./ |
| Website | /EN/Default.aspx |
More information also can visit our website:/EN/Default.aspx
