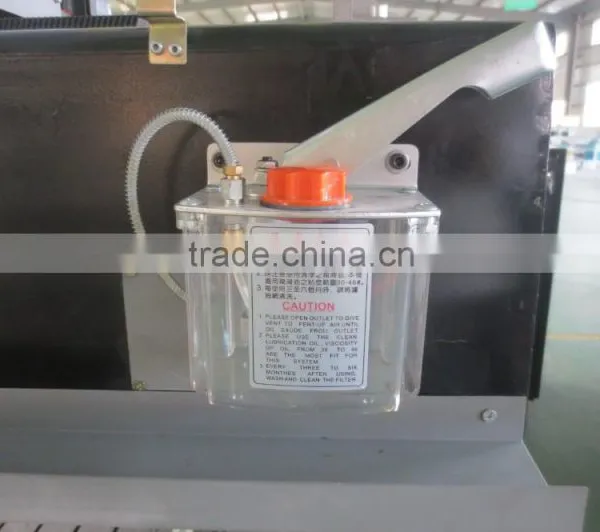

DL6090 mini cnc router in China jinan city with water cooled spindle, hand oil

Type

6090

working area

600*900*150 mm

spindle

1.5kw water cooled spindle

motor

leadshine 450A

XYZ traveling positioning accuracy

0.04 / 300 mm

XYZ repositioning positioning accuracy

0.05

Lathe structure

cast iron machine frame

XY Structure

square guide,rack pinion

Z Structure

square guide,Ball screw

spindle power

3.0 kw water-cooling(optional)

Max speed

0-24000 rpm/min

Max working speed

0-15000 mm/min

Spindle speed

0-24000 rpm

Working mode

Stepper/Servo

Working voltage

AC220V380V/50/60HZ

Operating system

NCstudio/ DSP system

cnc router machine optional accessories

Rotary axis

For engraving on cylindrical shape materials, please kindly tell us your cylindrical shape material’s length and diameter. then we can add right rotary axis to the machine , and quote the right price for your rotary axis.

Vacuum table (contain vacuum pump and vacuum pipes)

For fixing the material on the working table, especially for bigger working table.

Dust collector(contain dust collector pump and dust collector pipes)

For sucking away the dusts, such as wood dusts and so on.

DSP A11 controlling system(off-computer controlling)

USB interface, 128MB flash memory
