Home > Products > wood cnc router machine > china machinery 4.5kw 3d cnc router;1224 wood cnc router for sale ;cnc wood router with CE
china machinery 4.5kw 3d cnc router;1224 wood cnc router for sale ;cnc wood router with CE
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | DLTECH | Model Number: | DL-1224 | Voltage: | AC380V/50HZ |
Power(W): | 4.5KW | Dimension(L*W*H): | 1200mm*2400mm*200mm | Weight: | 1300kg |
Certification: | CE ISO | Warranty: | 12 Months | After-sales Service Provided: | Overseas service center available |
Product Description
china machinery 4.5kw 3d cnc router;1224 wood cnc router for sale ;cnc wood router with CE
Product description
Description | Parameters |
Model | DL-1224 |
X, Y working area | 1200mm*2400mm |
Feeding height | 85mm |
Structure | Aluminum casting structure Gantry moving type |
Movement part | X Y Z-----1605 ball screw; |
X &Y axis: 20 round rails; Z axis:12 round shaft | |
Motor | X Y:57BYG76; Z:57BYG56 |
Driver | YAKO 2608/ Leadshine860H |
Spindle power | 1.5kw water cooling spindle |
Working speed | 0-4000mm/min |
Control system | DSP |
Command code | HPGL, G-code |
Working precision | 0.05mm/300mm |
Repeatability | 0.01mm |
Power | AC220V+10% 50-60Hz |
Compatible software | Type3/Artcam/UG/pro-E/Mastercam/UcancamV8 etc |
Tool bits shank | 3.175-6mm |

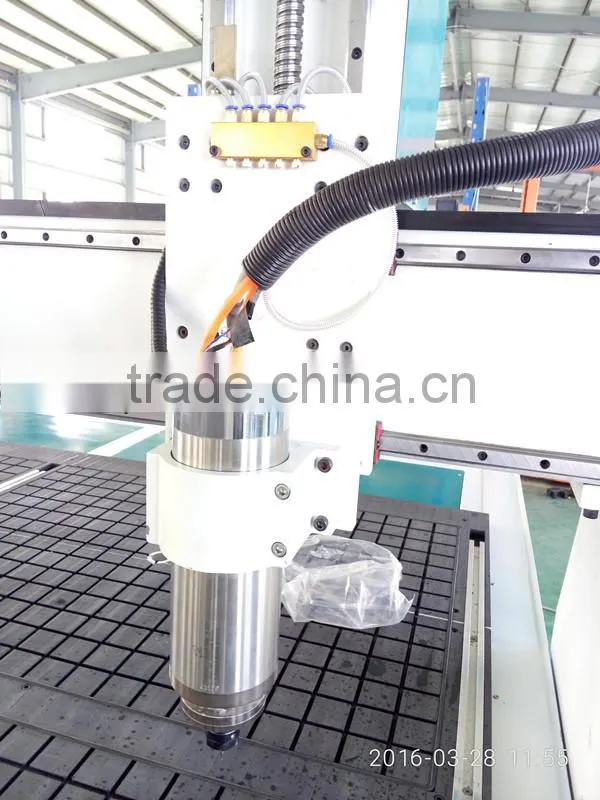

Pictures of details
Parts of the machine can do some changes as your requirement:
1. Motor (stepper or sever motor)
2. Spindle ( air-cooling or water-cooling spindle)
3. Guide rail (round guide rail or square guide rail)
4. The table of the machine (Vacuum table, T-slot table, Combination of Vacuum table & T-slot table,normal table, table moving).
Applications and samples
CNC Router has a wide range of application, such as advertising field, seal field, packing field, pane making field, decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry field. It is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wood sheet, scagliola, PCB, granite, stone, steel and etc.
our service
After-sale service of the cnc router
1. Small parts will be supplied to you for free, such as, software CD, dongle.
2. Any problem will be replied to you within 24 hours!
3. By video, solution manual in English, Email, skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional’s guide for free!
5, Free training in our factory.
Warranty and technical support
18 months for the whole machine.
24 Hours technical support by email or calling.
user friendly English manual and Video CD for machine operation and maintain.
Delivery
(1)Terms of delivery: 7-15 days after receiving your deposit.
(2)Port of loading: Qingdao port,guangzhou port,Tianjing port ,China
(3)Terms of payment :30% to be paid before the produce and the balance should be paid before shipment.
We are one of the professional manufacturer in Jinan city, We do OEM for many trading companies.For me, I have been in this machinery for 2 years, I know well how to give you the suitable process programand focus on the after sales service during China's third industry transform to the second stage period.We hope we could establish long term business relationship not only one machine.
Frequently Asked Question
1. How should i pay for my order ? what is the procession of this purchase ? we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. i will send the machine to you.
2. How about your service after sales ?can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine,how to use machine.
how to let machine work. and so on. usually we will teach you how to do by email or by skype .
our engineer has many years of experience for cnc machine service . he can speak very good english ,
so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted,
and most important thing is we can do better service after sales. we know how to fix the problem in each
parts easliy. so welcome to visit to our factory
4. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines
according to client s specific requirements, it would be 15 to 30 days.
5. How about the documents after shipment?
Aftershipment, we'll send all original documents to you by DHL, including Packing List, Commercial Invoice
, B/L, and other certificates as required by client.
If you want to know more machine details or prices or videos, please don't hesitate to contact me.
My information
Contact Us
- Jinan Donglian CNC Technology Co., Ltd.
- Contact nameAnnie shen
- Phone86-531-88677575
- AddressXingsheng St., Yuhuangmiao Town, Shanghe County
