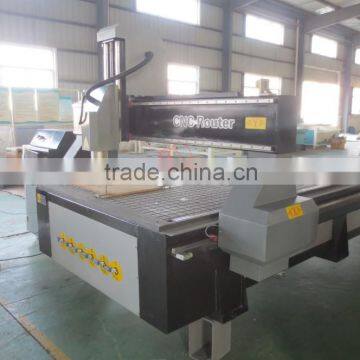

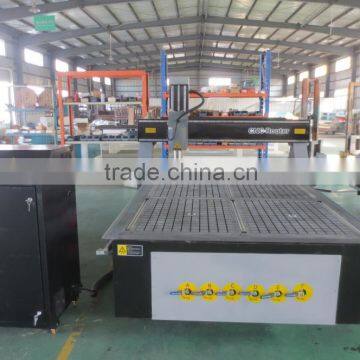

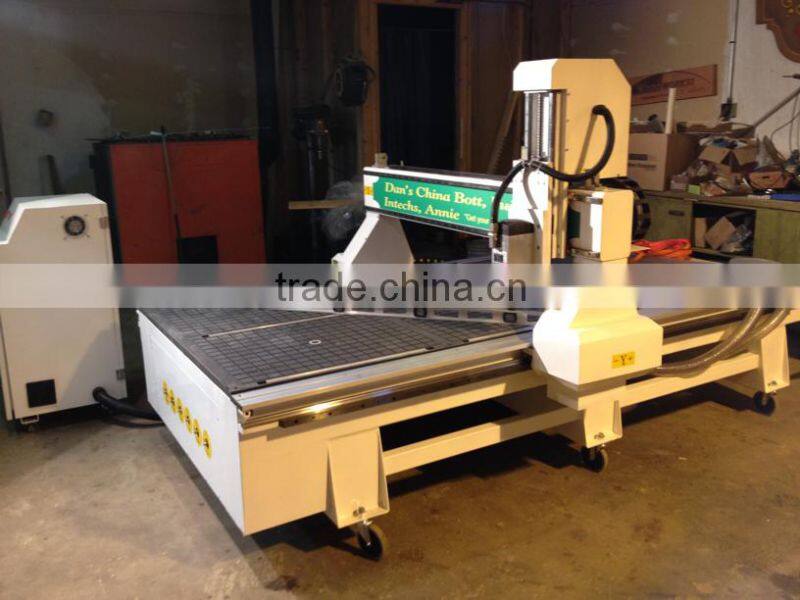

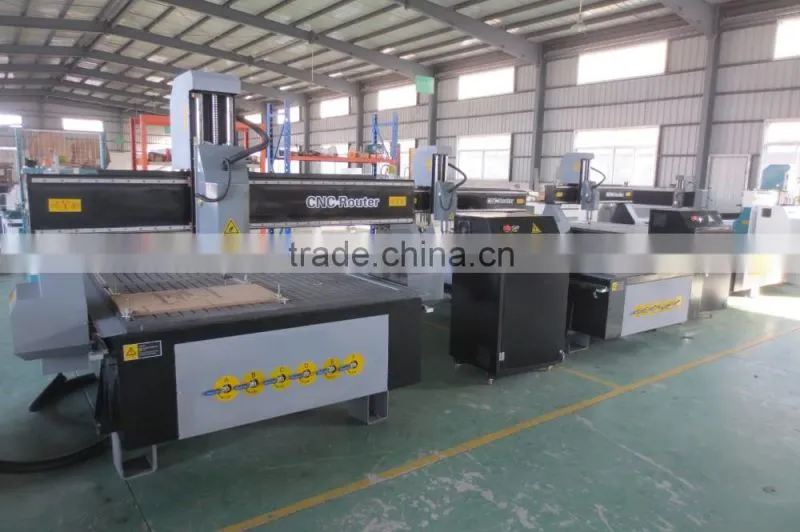

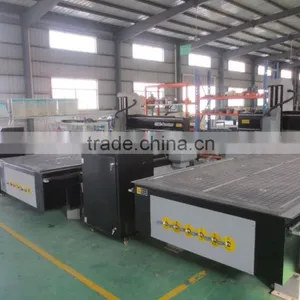

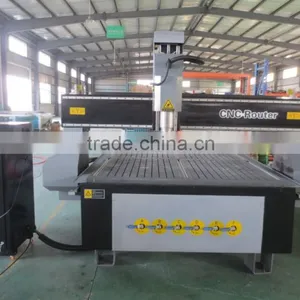

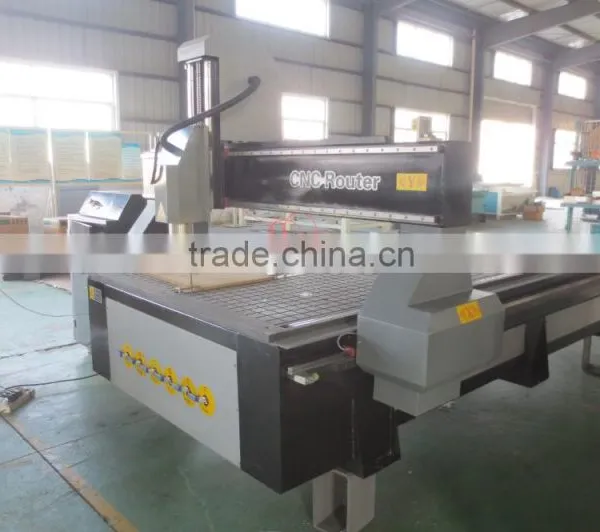

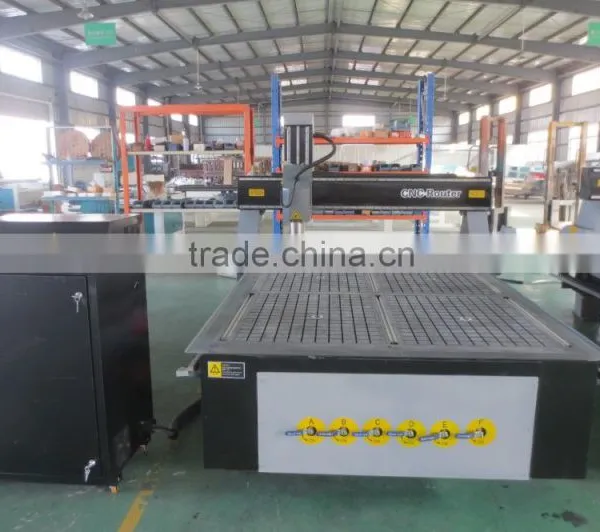

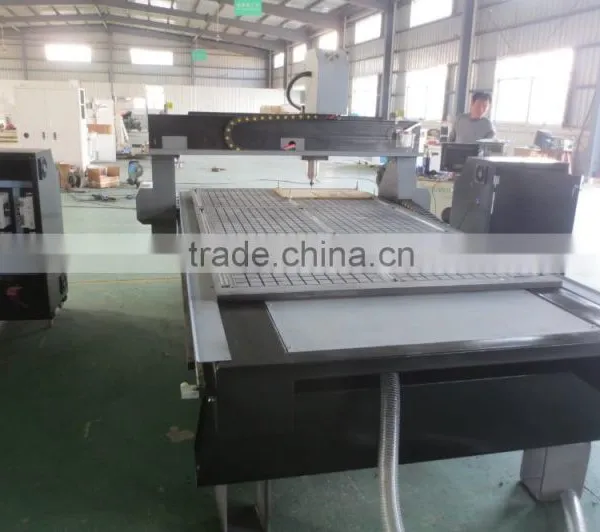

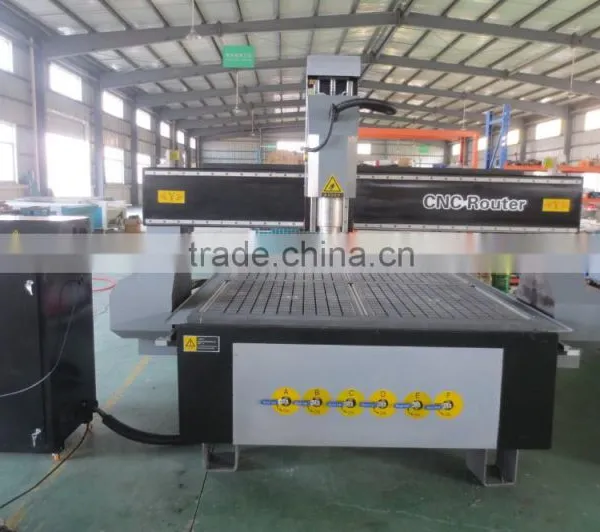

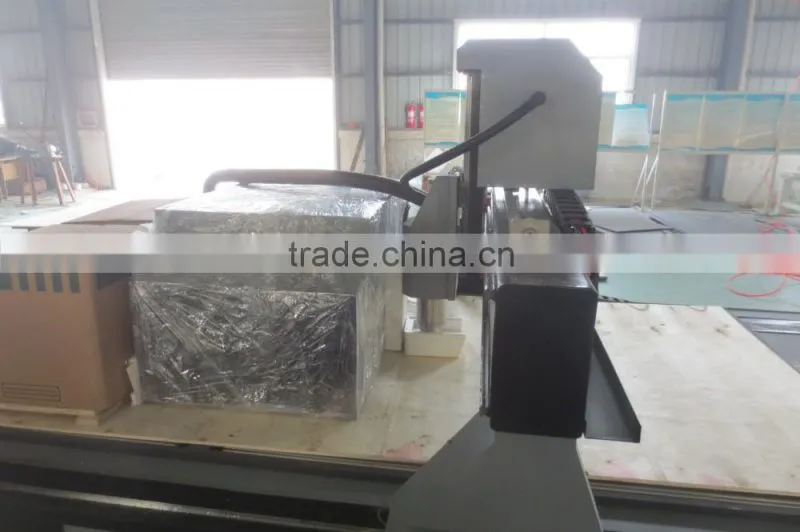

DL1325 3d cnc router wood machine with thicken frame and vacuum adsorb table China shandong jinan manufactory
Type |
1325 |
working area |
1300*2500*200 mm |
spindle |
3.2kw water cooled spindle |
motor |
leadshine 450B |
| driver | leadshine MA860 YAKO2608 |
XYZ traveling positioning accuracy |
0.04 / 300 mm |
XYZ repositioning positioning accuracy |
0.05 |
Lathe structure |
haevy body steel structure |
XY Structure |
square guide,rack pinion |
Z Structure |
square guide,Ball screw |
spindle power |
3.0 kw water-cooling(optional) |
Max speed |
0-24000 rpm/min |
Max working speed |
0-15000 mm/min |
Spindle speed |
0-24000 rpm |
Working mode |
Stepper/Servo |
Working voltage |
AC220V380V/50/60HZ |
Operating system |
NCstudio/ DSP system |
---1300mm*2500mm*200mm
---thicken steel square tube welded structure

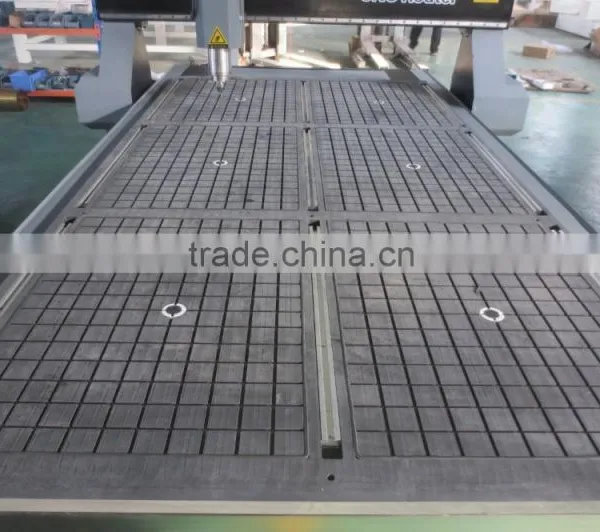

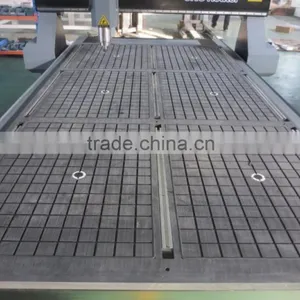

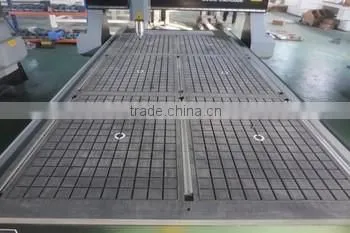

---vacuum table and 5.5kw pump
---China best square rails 20mm
---X,Y axis helical rack and pinion transmission, Z axis ballscrew transmission
---NC studio control system
---high speed 3.2kw HQD water cooled spindle
---Fuling inverter
---Leadshine 450B/YAKO 2811 motor and driver
---20 days stress release process and level test to ensure the stability and precision
---12 months warranty
Other parts also are optional, like control system, spindle, dust collector, oil system and so on.
cnc router machine optional accessories | ||
|
Rotary axis |
For engraving on cylindrical shape materials, please kindly tell us your cylindrical shape material’s length and diameter. then we can add right rotary axis to the machine , and quote the right price for your rotary axis. |
|
Vacuum table (contain vacuum pump and vacuum pipes) |
For fixing the material on the working table, especially for bigger working table. |
|
Dust collector(contain dust collector pump and dust collector pipes) |
For sucking away the dusts, such as wood dusts and so on. |
|
DSP A11 controlling system(off-computer controlling) |
USB interface, 128MB flash memory |
Q: Are you a manufacturer or trading company?
A: We are a Manufacturer and enjoying independent R&D team for 10 years.
Q: Do you have after-sale service team?
A: 24 hours online service for you, via tel/email/video or other way you prefer.
Q: Is there any inspection before delivery?
A: Strict quality examine before delivery, qualified industry related standard requirement.
Q: Can you offer customize manufacture?
A: Customize available based on your demands.
