Home > Products > wood cnc router machine > DL1325 Good maket response cnc router machine,good quality router cnc,high pricision cnc wood router
DL1325 Good maket response cnc router machine,good quality router cnc,high pricision cnc wood router
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | DLTECH | Model Number: | DL-1325 | Voltage: | AC380V/50HZ |
Power(W): | 4.5KW | Dimension(L*W*H): | 1300*2500*200mm | Weight: | 1300kg |
Certification: | CE ISO | Warranty: | 12 Months | After-sales Service Provided: | Overseas service center available |
Product Description
DL1325 Good quality cnc touter,Jinan polular cnc router,high pricision cnc wood router
"Quality Integrity Innovation Service"
Advantages and features
1.Machine body design with high strength and double driving motors of Y axis, which have more
reasonable design,fast processing speed, easy-operated maintenance and low fault rate.
2.Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.
3.Imported drivers and motors have characteristics such as powerful strength, fast processing speed,stable operation and extreme low noises.
4.High power spindles have constant power, low noises and super strong cutting force, which improve working efficiency greatly.
5.Imported and high precise linear guide ways have features such as stable operation, high precision and steady support, which prolong service life of machines.
6.Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.

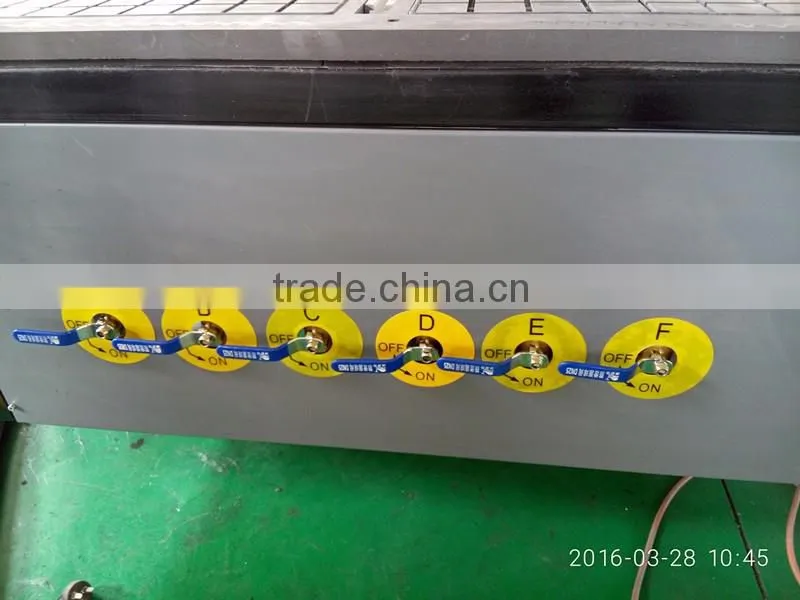

7.Energy-saving vacuum absorption table function and dust collectors can protect the environment.
8.Software has good compatibility. The machine can be compatible with various CAD/CAM design &making software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and so on.

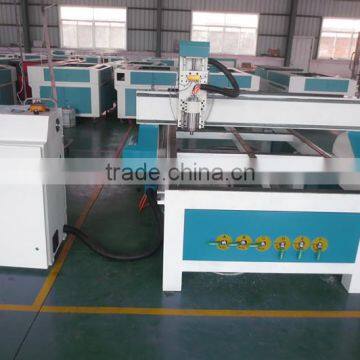

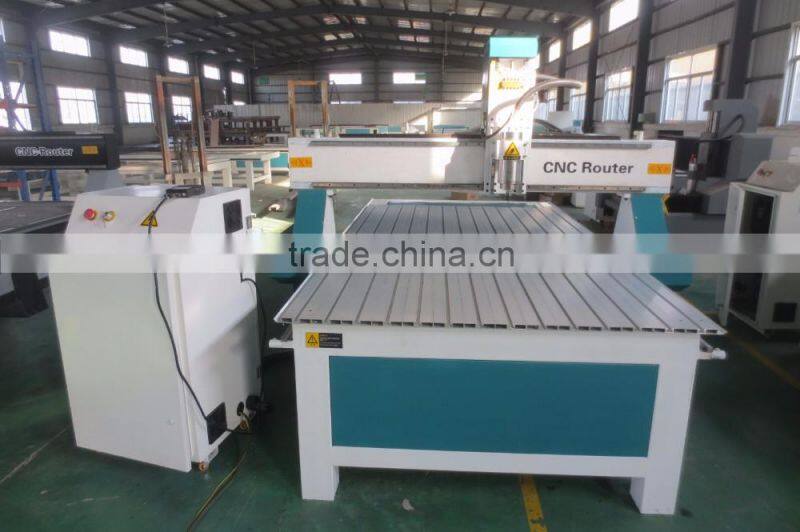

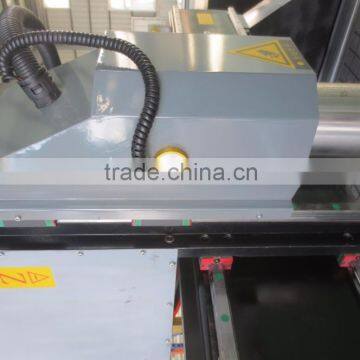

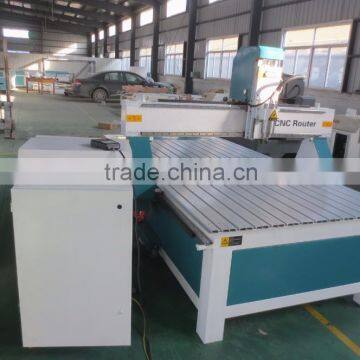

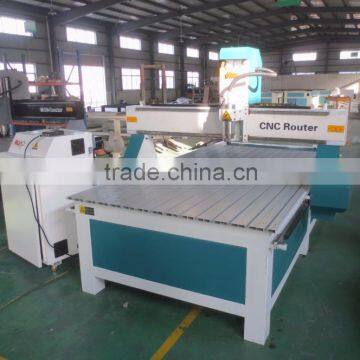

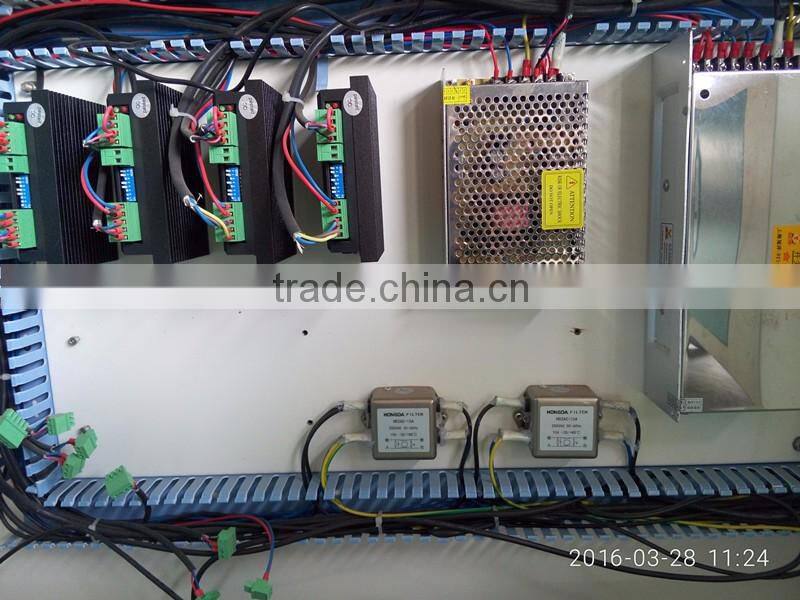

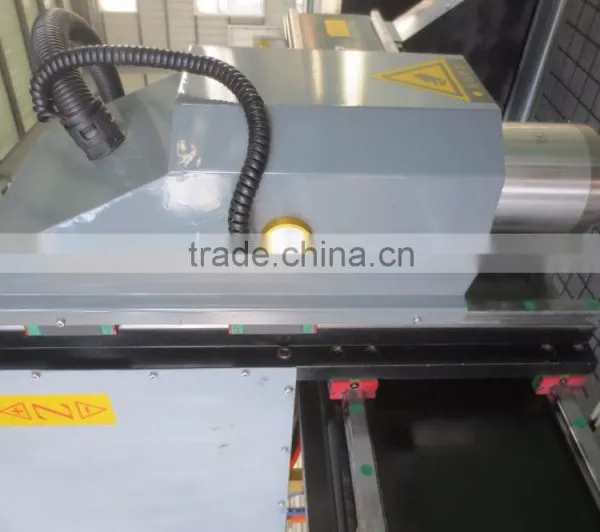

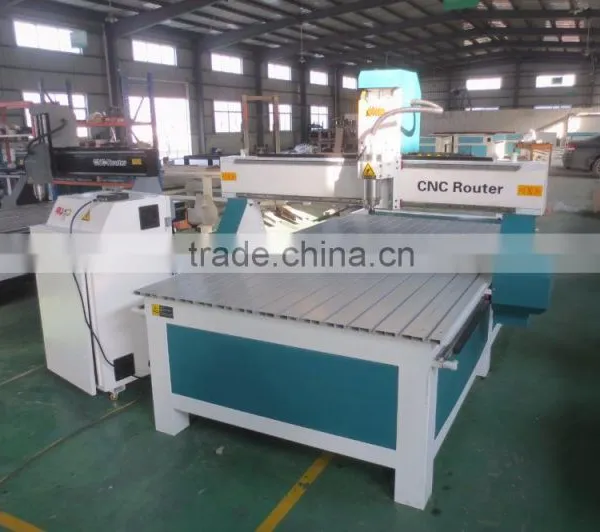

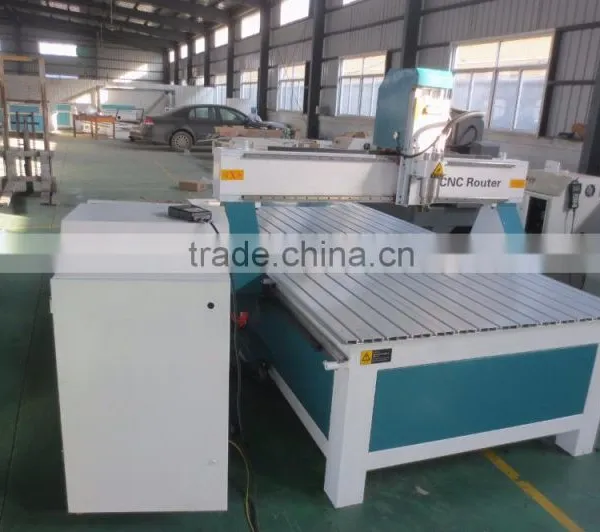

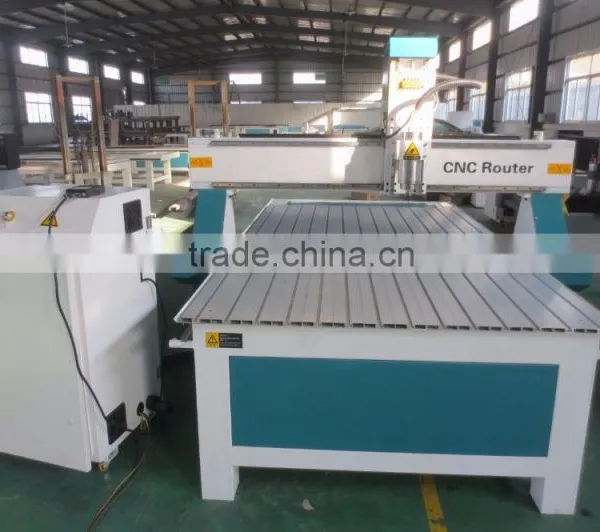

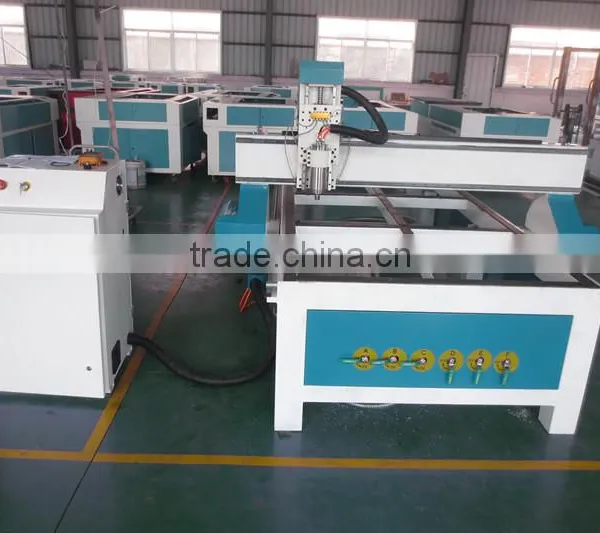

Pictures of details
Technical parameters
No. | Description | DL-1325 | Optional parts of the CNC Router |
1 | X,Y,Z Working Area | 1300x2500x200mm | Other working sizes are optional. |
2 | Table Size | 1360x2940mm (4.5'x9.6') | |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm | |
4 | X,Y,Z Repositioning Accuracy | ±0.01 mm | |

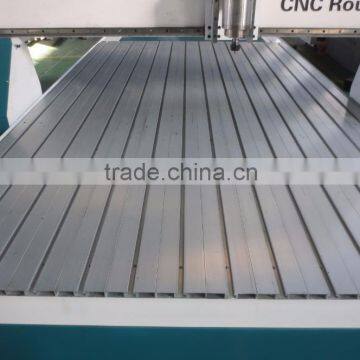

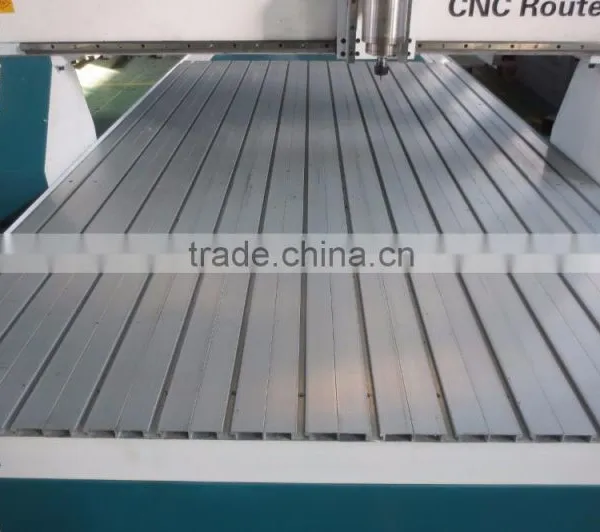

5 | Table Surface | T-slot, hold the material by clamps | Combined vacuum table and T-slot |
6 | Frame | Thick,strong and high quality steel tube welded | |
7 | X,Y axis driving way | Rack and Pinion /Linear square guide rails and blocks imported from Taiwan, HIWIN brand | |
8 | Z axis driving way | Ball screw / Linear square guide rail and blocks imported from Taiwan, HIWIN brand | |
9 | Max. Power Consumption | 2.0kw(without spindle) | |
10 | Max. Rapid Travel Rate | 33,000mm/min | |
11 | Max. Working Speed | 25,000mm/min | |

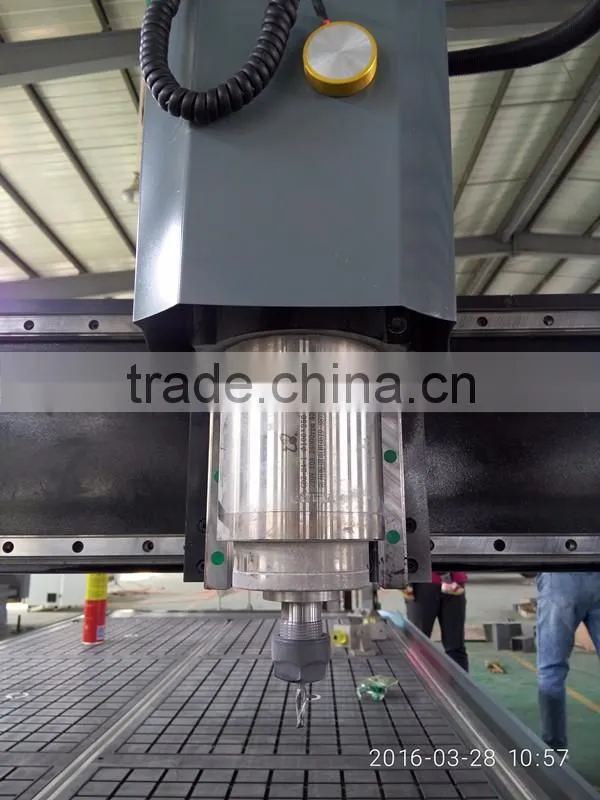

12 | Spindle Power | 3.0KW/4.5KW/6KW water cooling spindle | Italy HSD or Chinese air cooling spindle |
13 | Spindle Speed | 0-24000 RPM | 0-18000RPM |

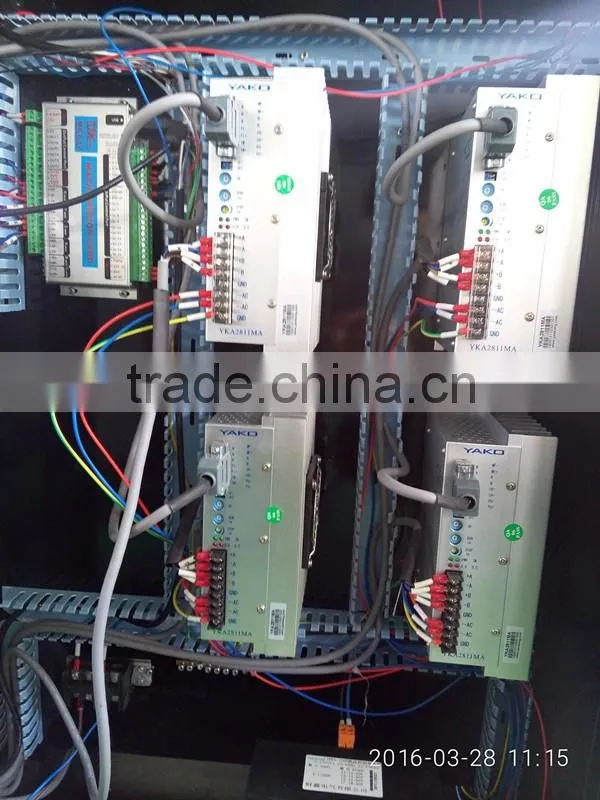

14 | Drive Motors | Stepper System | Yaskawa, Panasonic, Delta or others |
15 | Inverter | Fuling | Yaskawa, Panasonic, Delta or others |
16 | Working Voltage | AC380V/50-60Hz/3PH | AC220V/50-60Hz/Single or 3 phase |
17 | Command Language | G Code | |
18 | Control system | DSP and control handle | Ncstudio, Mach 3, Syntec or others |
18 | Computer Interface | USB | PCI |
20 | X,Y Resolution | < 0.01mm | |
21 | Software Compatibility | Type3/ Ucancame V9 software (Option: Artcam Software) | |
22 | Dust collector | 2.2KW with 2 bags | 3KW/4KW |
23 | Vacuum pump | 5.5KW, water cooling | Dry cooling |
24 | Running Environment Temperature | 0°-45° | |
25 | Relative Humidity | 30%-75% | |
26 | Packing Size | 3200x2100x1980mm | |
27 | N.W. | 650kg | |
28 | G.W. | 750kg |
Parts of the machine can do some changes as your requirement:
1. Motor (stepper or sever motor)
2. Spindle ( air-cooling or water-cooling spindle)
3. Guide rail (round guide rail or square guide rail)
4. The table of the machine (Vacuum table, T-slot table, Combination of Vacuum table & T-slot table,normal table, table moving).
Applications and samples
Mini CNC Router has a wide range of application, such as advertising field, seal field, packing field, pane making field, decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry field. It is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wood sheet, scagliola, PCB, granite, stone, steel and etc.
Certificate and our factory
Delivery
(1)Terms of delivery: 7-15 days after receiving your deposit.
(2)Port of loading: Qingdao port,guangzhou port,Tianjing port ,China
(3)Terms of payment :30% to be paid before the produce and the balance should be paid before shipment.
We are one of the professional manufacturer in Jinan city, We do OEM for many trading companies.For me, I have been in this machinery for 2 years, I know well how to give you the suitable process programand focus on the after sales service during China's third industry transform to the second stage period.We hope we could establish long term business relationship not only one machine.
Q: How to choose the right Wood CNC Router ?
Q 1. What kind of processing does Wood CNC Router do? |
A:The Wood CNC Router can be used in cutting, milling, grinding, planning, drilling, engraving etc., especially for abnormal shape’s cutting. |
Q 2. What kinds of materials applies to Wood CNC Router ? |
A:It can work on a lot of different materials besides kinds of wooden materials, such as acryl, light guide, diffusion board, PVC, ABS PF, PE, PU, Fiber glass, man-made stone, compact grade laminate board, Bakelite, aluminum profile, cooper plates etc.. For different materials, we have corresponding machines for choices. |
Q 3. What kind of bits I should use for the Wood CNC Router? |
A:There is no standard answer for this question, you should choose the bits according to your processing. Normally, the sizes of the bits can be 3.175mm to 16mm, and there are a lot of “Shaped bits” to meet up processing requirements. The bits can also be customized. |
