Mcdonalds Indoor Playground Equipment

Specifications

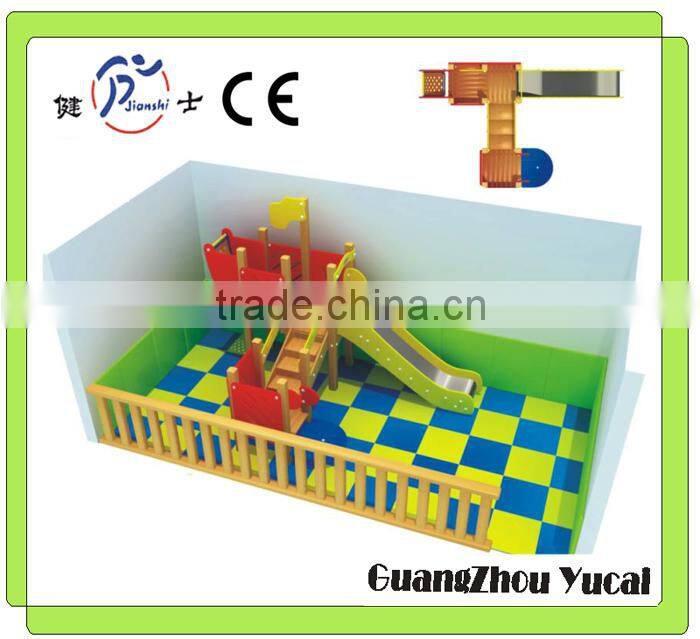

Mcdonalds indoor playground equipment

Description:
Provide different size of outdoor playground, large-size, medium-size and mini-size. Redesign is OK for any set if you want to cut down or add any part (e.g.: the swing, slide or some decoration, etc). Optional color for metal and plastic components.

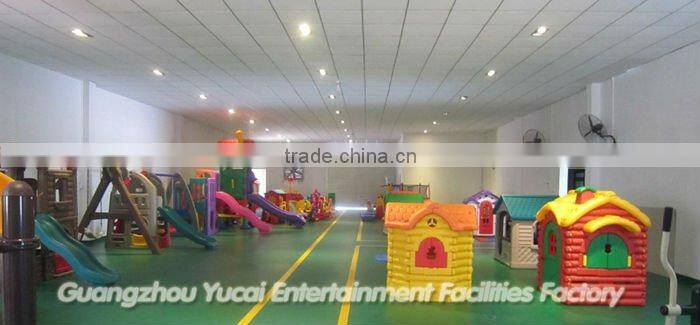

.Our showroom

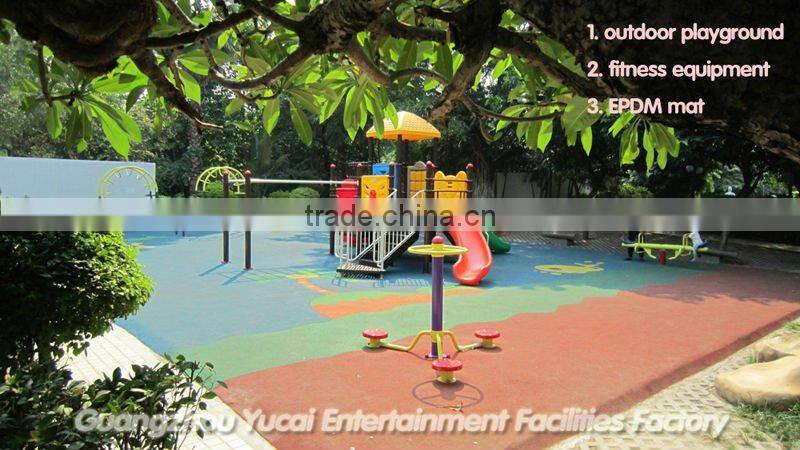

.Our project in park

 . Our sample

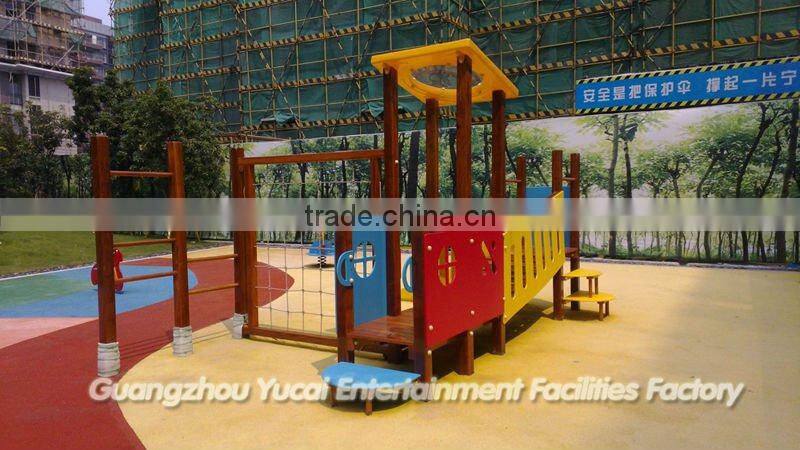

. Our project in community- outdoor wooden playground

·Details

The upright column is made by a steel pipe with diameter of 114 mm, wall thickness of 2.5 mm, quality and technical standard of which have met the requirements of BS1387-1985 standards.

The platform is shaped by piercing a 2.2 mm-thick cold-roll steel sheet, with bores of 6 mm in diameter. Conforming to the European standards of EN1176, the platform owns a strong bearing capacity.

The iron part is made of a steel pipe with diameter of 60 mm, 48mm, 38mm, 32mm, 28mm, wall thickness of 2.5 mm, quality and technical standard of which have met the requirements of BS1387-1985 standards.

All the metal parts are welded by Argon arc welding and carbon dioxide gas shield welding are adopted here and both conform to the requirements of GB/T8810-1995. Surface of the product is applied with DuPont outdoor polyester pearl powder coating which is friendly to the environment and solidified at high temperature. With smooth surface and excellent anti-ultraviolet property, our product has bright colors, which are difficult to fade and corrosion-resistant.

Plastic parts are formed by rotational moulding of LLDPE, the exclusive material for rotational moulding imported from the South Korea Samsung Corporation. With a wall thickness of above 6 mm, the plastic parts of bright color own anti-ultraviolet property of grade 8, which conforms to the standards of food in Australia. Safe and eco-friendly, the plastic parts put on an excellent performance in weather fastness, toughness, intensity, ageing resistance. In bright color and beautiful appearance, they are colourfast and durable in use.

 .Optional color

. Parts

Fittings:

Fittings are made of high strength aluminium alloy by one-time cast forming. After the slinging processing, all the corners are round and smooth.

Ropes and nets:

The material for ropes and nets is imported sailing ropes, which is 14 mm or 16 mm in diameter. The knots are mated with round aluminium alloy fasteners.

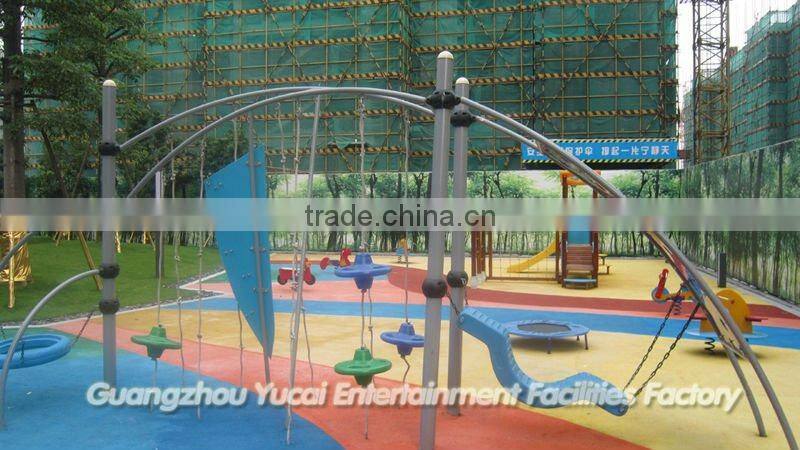

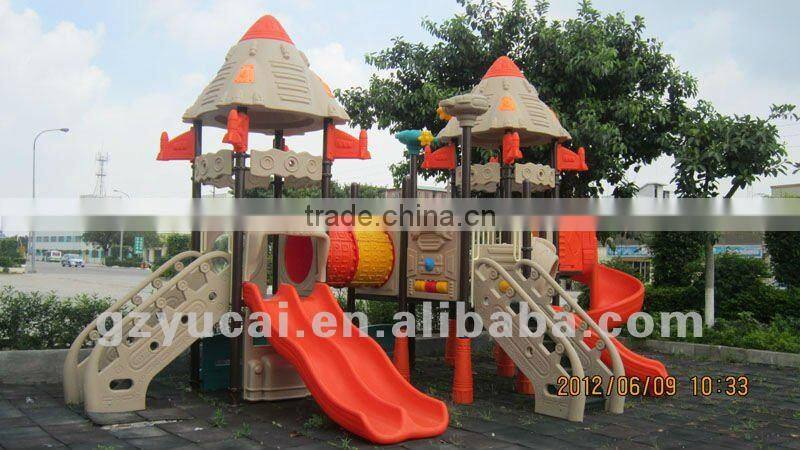

.Our projects in park/community/school,etc.

 . Trade show

What are we? Our Factory-Guangzhou Yucai-Established in 1995, YUCAI has been involved in the industry for 17 years. over years' continuously struggles of our ordinary workers,we have evolved from a mill with only several workers producing outdoor fitness equipment, to a famous enterprise in Guangzhou which not only researches and develops, but also produces and installs.

Our factory covers an area of 4,200sq.m,products range from outdoor fitness equipment,indoor and outdoor playground equipment,site furnishings,educational furniture to safety surfacing.we have already done a excellent job in domestic market with manufacturing and installation of 120 sets of outdoor playground monthly. our eyes on the future focus on the global market.

With strong capability in mold development ,sophisticated testing equipments, stringent serious production and installation workers,as well as the commitment on providing top quality service under the theory of customer foremost. we strive to ensure that we have maintain international standards. we guarantee to meet your strictly requirements on both products and services. You can click our company profile to see our factory video to get a general impression of our company.

We will strive to provide you with high quality products and quality service,We can also accept any kinds of payment terms,such as T/T,Western Union,L/C,OA,D/P,etc.

.Certificate
