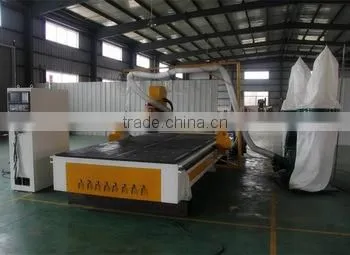

Cnc Router Auto Tool Changer 3d Smart ATC With Servo Motor and HSD Spindle
US$ 2,500 - 99,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 China Price High-profile High Performance ATC Cnc Router Machine for Wood WorkingUS$ 2,500 - 999,999MOQ: 1 Set -
2016 High Efficiency Low Energy Consumption 1325 ATC Router Cnc WoodworkingUS$ 2,500 - 999,999MOQ: 1 Set
-
1325 China Good Character Servo Drive Motor 3d Atc Cnc Router Machine PriceUS$ 2,500 - 999,999MOQ: 1 Set
-
China Good Character Servo Drive Motor Atc Cnc Router PriceUS$ 2,500 - 999,999MOQ: 1 Set
-
China Good Character Servo Drive Motor Atc Cnc Router Wood Machine for AluminumUS$ 2,500 - 999,999MOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Shandong, China
Brand Name
DONGLIAN
Model Number
1325
Voltage
220V/380V
Power(W)
5.5KW atc
Dimension(L*W*H)
1300*2500*200mm
Weight
2000kg
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
cnc router auto tool changer 3d smart ATC with servo motor and HSD spindle
Product Description
| Name | 1325 atc cnc router | Optional parts |
| X,Y,Z working area | 1300*2500*200mm | 1530 2030 2040 |
| Table size | 1500*3040mm | |
| Spindle | HQD 5.5kw atc water cooled spindle | Italy HSD9 kw auto tool change air cooling spindle 24000rpm (ES929) |
| Tool magazine | Carrousel type | Linear type |
| Tool holder | 8 pcs ISO30-ER32 tool holders | HSK F63 optional |
| Tool Diameter | Φ 3.175, Φ 4, Φ 6, Φ 12.7mm | |
| Tool change time | 8seconds (Carrousel type tool magazine) | |
| Calibration | Auto | |
| Frequency converter | Taiwan Delta | Fuling/Rituo |
| Motor | 4sets Inovance servo motor | Yaskawa/Delta |
| Drive | 4sets Inovance | |
| XYZ Travelling Potioning Accuracy | ±0.05/300mm | |
| Max Rapid Travel Rate | 50,000mm/min | |
| Max working speed | 30,000mm/min | |
| Table surface | Bakelite Vacuum Table +Aluminum T-slot Extrusion | |
| Vacuum System | Independed divided part vaccum area with Electronic switch | Manual switch |
| Frame | Steel Square Tubes up to 8mm, T type | |
| X, Y structure | Helical Rack & gear transmission ,squre guide linear bearing | |
| Z structure | TBI ballscrew,Hiwin rail linear bearing | |
| Lubrication | Auto | Manual |
| Control system | ncstudio NK260 with handwheel | Syntec control system |
| Command languages | G code | |
| Software compatability | Origin Artcam+Dongles / Type 3 | |
| Switch and emergency stop | SCHNERDER switch, Omron emergency stop from Japan | |
| Working voltage | AC220v/3phase 380v3phase | |
| Net weight | 2100KG | |
| Gross weight | 2500KG | |
| Packing size | 3300*2200*2200mm, | |
| standard parts include | ||
| heavy body | yes | |
| Vacuum pump | Germany Becker KVT3.140 (140cbm/h) | China dry pump 160cbm/h |
| Dust collector 3KW with 2 bag | 35-40m/second, 3150cbm/h |
Machine parts
Carrousel/circular type tool magazine
straight line/linear type tool magazine
Syntec operating system with handwheel
Ncstudio system with handwheel
Auto tool height sensor
Samples
FAQ
Q: Are you a manufacturer or trading company?
A: We are a Manufacturer and enjoying independent R&D team for 10 years.
Q: Do you have after-sale service team?
A: 24 hours online service for you, via tel/email/video or other way you prefer.
Q: Is there any inspection before delivery?
A: Strict quality examine before delivery, qualified industry related standard requirement.
Q: Can you offer customize manufacture?
A: Customize available based on your demands.
