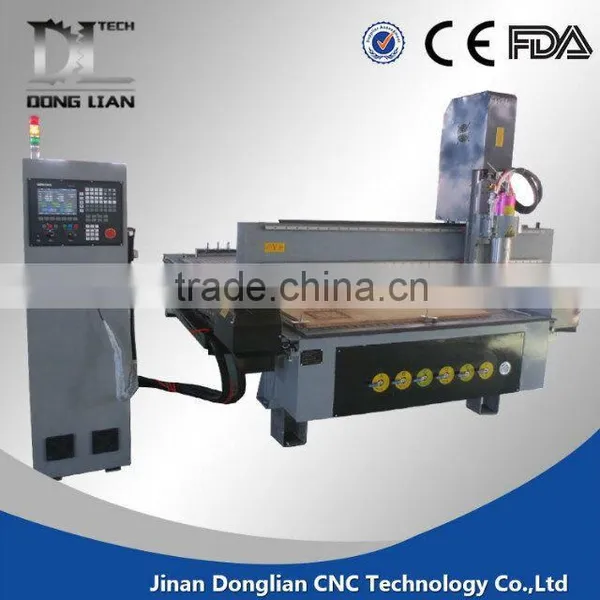

2030 Atc China Cnc Router 4x8 ft With Italy HSD Air Cooled Spindle

Name: 2030 Atc China Cnc Router 4x8 ft With Italy HSD Air Cooled Spindle
Brand: DONGLIAN
SKU: 129784555

US$ 2,500 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Donglian CNC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name DONGLIAN

Model Number 1325

Voltage 220V/380V

Power(W) 5.5KW atc water cooled spindle

Dimension(L*W*H) 2000*3000*200mm

Weight 1800KG

Certification CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

2030 atc china cnc router 4x8 ft with italy HSD air cooled spindle

Company Information

We support Alibaba Trade Assurance , which can ensure the Transaction Security.

We are the manufacture of cnc router and laser cutting machine for 10 years.

We have 10 years experience in production of cnc router and laser cutting machine.

We promise to provide high quality product with competitive price!

I believe you will fall in love with our machine after see our quotation.

Product Description

Model	4’x8’ ATC cnc router
X,Y,Z working area	13002500300mm
Drive motors	Delta servo motor(imported from Taiwan)

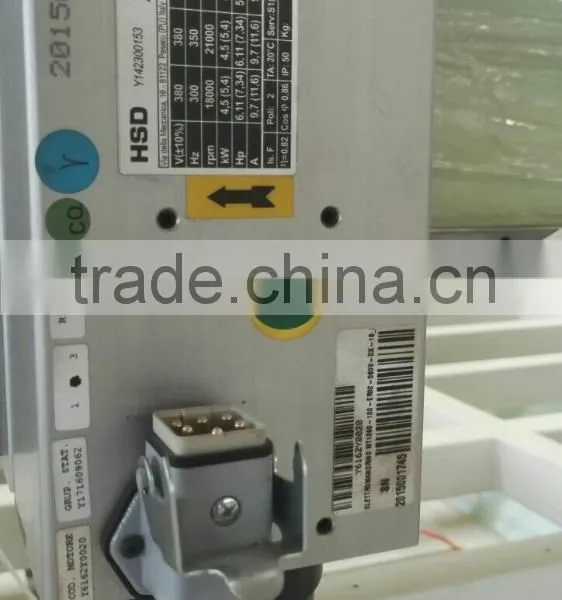

spindle	5.5kw water cooled ATC spindle
Inverter	Delta (imported from Taiwan)
Control system	NCSTUDIO control system
Machine table	Table surface-bakelite combined Aluminum T -slot extrusion, vacuum table
X, Y, Z Travelling Potioning Accuracy	±0.02/300mm
X, Y, Z Travelling Repositioning Accuracy	±0.02mm
Frame	Big thickened Steel Square Tubes, thickness up to 8mm
X, Y structure	Rack and pinion drive, Hiwin square rail linear bearing 20mm
Z axis structure	Germany imported ballscrew and Hiwin square linear rail 20mm
Max Rapid Travel Rate	32,000mm/min
Max working speed	20,000mm/min
Working voltage	AC380V, 60Hz/50hz, 3 phase
Command languages	G code
Limit stop	Hard limit stop ,electronic limit stop
Cutter diameter	3.175-12.7mm
Automatic tool change time	8 seconds
Vacuum pump	15kw
Cw5000 water chiller	Yes
Dust collector	Two bags
Package size	2.24.51.9m
package	In one wooden case
Gross weight	2000kg
Net weight	1800kg
