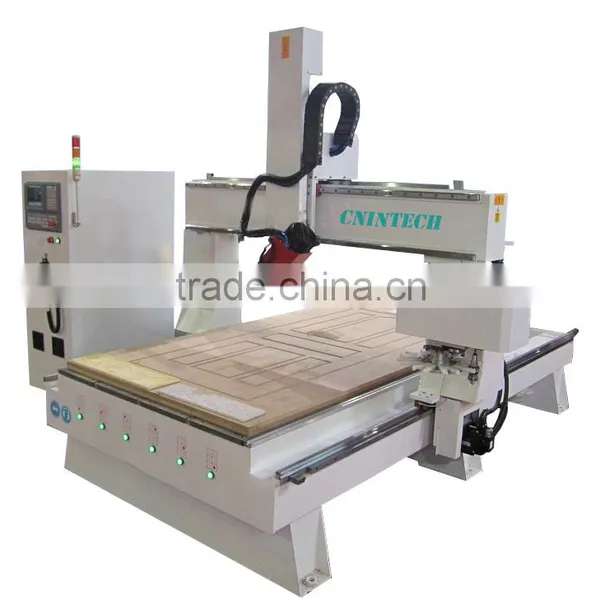

6090 4 axis cnc router engraver machine 4th rotary for PCB/pvc/aluminum/wood
Description |
Parametrs |
X,Y,Z,C,AWorking Area: |
1200*1200*950mm*120degree*213degree |
X,Y,Z Traveling Positioning Accuracy: |
±0.03/300mm |
X,Y,Z Repositioning Accuracy: |
±0.03 mm |
Frame: |
Heavy Steel |
X,YStructure: |
Rack and Pinion Drive, |
Z Structure: |
Ball Screw, |
working table |
vacuum table with dust collector |
Max. Rapid Travel Rate: |
25,000mm/min |
Max. Working Speed: |
15,000mm/min |
Spindle Power: |
9 KW air cooled spindle and VFD |
Spindle Speed: |
0-24000 RPM |
Drive Motors: |
Yaskawa Servo |
Working Voltage: |
AC380V, 50/60Hz, 3PH (Option:220V) |
Command Language: |
G Code |
Operating System: |
OSAI Control System with handwheel |
oil system |
yes |
Computer Interface: |
CF Card, Ethernet |
Flash Memory: |
512M (U Disk) |
X,Y Resolution: |
< 0.03mm |
Software Compatibility: |
UGS, Alpha Cam, Becam, Type3, Ucancam V9 |
Running Environment Temperature: |
0°-45° |
Relative Humidity: |
30%-75% |
Packing Size: |
3800*2200*2000mm (in parts) |
N.W.: |
1650kg |
G.W.: |
1800kg |
4 axis spndle
machine body framecnc router machine parts | ||
|

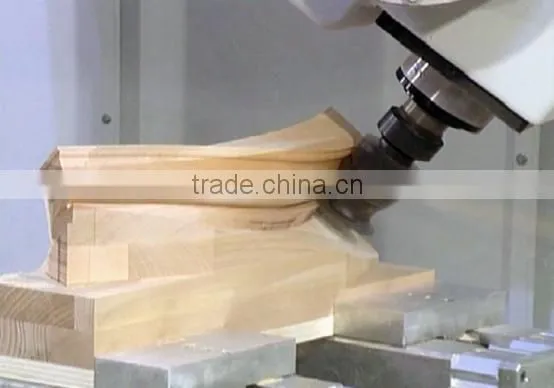

Rotary axis |
For engraving on cylindrical shape materials, please kindly tell us your cylindrical shape material’s length and diameter. then we can add right rotary axis to the machine , and quote the right price for your rotary axis. |
|
Vacuum table (contain vacuum pump and vacuum pipes) |
For fixing the material on the working table, especially for bigger working table. |
|
Dust collector(contain dust collector pump and dust collector pipes) |
For sucking away the dusts, such as wood dusts and so on. |
|
DSP A11 controlling system(off-computer controlling) |
USB interface, 128MB flash memory |
Q: Are you a manufacturer or trading company?
A: We are a Manufacturer and enjoying independent R&D team for 10 years.
Q: Do you have after-sale service team?
A: 24 hours online service for you, via tel/email/video or other way you prefer.
Q: Is there any inspection before delivery?
A: Strict quality examine before delivery, qualified industry related standard requirement.
Q: Can you offer customize manufacture?
A: Customize available based on your demands.
