PRIME Battery Regenerators (for Lead-acid)

What is different between PRIME Regenerator and Charger ?

* PRIME Regenerator : With the world exclusive high-frequency pulse and restoration algorithm, it can restore inside cells by melting sulfate crystals on the plates and grids, and it can improve its capacity and life span as almost similar as new battery condition. PRIME Battery regenerators were developed by the World Exclusive Technology, and these make the remarkable micro-bubble featured de-sulfation effects by the real high-frequency pulsations. And these can make the highest charging performance for used-batteries. PRIME technology is the revolutionary invention for battery life extension and cost savings!

* Charger : It cannot improve the capacity and life span of battery.  Even though charger made a full charge, but capacity is not more improved.

PRIME Regeneration System (For Lead-Acid Battery)

PRIME products are the most advanced battery regeneration system which we invented on the innovative technology exclusively, and PRIME will be “NECESSARY” item for all lead-acid batteries in near future. Please review our new technology and marketability in detail. You will find a huge potential demand all over the world.

* What is the PRIME Battery Regenerator?                     * Exclusive Advantages - All New Innovation!

* Special Advantages – All New Innovation!

1. Universal compatibility - All kinds of Lead-acid batteries from 2V to 96V and 40Ah~3000Ah (RPT-S500/S600).          6V~48V and 40Ah~1000Ah (RPT-E400 & H700). 6V~12V and 40Ah~300Ah (RPT-C200/C300/T300)

2. A full automatic operation by very simple set up.

3. Excellent system durability and stability - Lowest defects by good quality parts and stable system

4. Lowest power consumption (ex. 12V 100Ah = about 2 KW power consumption only for 15 hours totally)

5. Adoption of various electrical safety protection circuit design

6. No battery explosion with the advanced circuit system and micro-bubble desulfation process.

7. Sustaining lower temperature in the battery by automatic output voltage & current control

8. Satisfactory customer service and quick after service

9. Portable light weights and easy to carry

10. Using anywhere with AC220V Single phase or AC110V Single phase (RPT-C200/C300/T300)

PRIME makes the best customer's satisfaction!

Warranty : Two years limited & conditioned warranty would be supported. If you have any trouble with PRIME products, we will send a detailed instruction manuals with pictures for disassemble & assemble guide case by case. 1st Year Limited Warranty : All damaged caused by manufacturer's fault (Free Warranty including Freight Costs. 2nd Year Conditioned Warranty : Replacement and Repair (Free or Payable Warranty, Freight costs are not supported)
 * All defects caused by user's mis-use, our free warranty will not be supported.

After Service Commitment : If you have any defective matter with PRIME products, you should inform us of its symptom with pictures or video earlier to return. If we determine that it should be repaired or replaced, then you should disassemble a board to be dispatched via an express mail service. Or, we will send some parts via DHL for replacement by your technician. The free warranty will be covered for all defective matters without any defects by misuse. Of course, we will pay for all return international freight cost for replacement or repair during one year limited free warranty period. After One Year ~ Two years – we will supply for the consuming of troubled consuming parts with a collect DHL freight cost.

All of our products are very easy to operate like an electric cooker. Every process will be done with a full automation. In this reason, you do not need to have any training for PRIME machines. But, you should have some knowledge of battery maintenance. Every business should be done by a distributor itself with our given marketing & technical files. After testing our products for a couple of months, then your operator will know almost everything how to do it. After then, you should have the introduction to the Defense Services, Telecom companies, Electric Power companies, Solar & Wind Power companies, Forklift companies, Government Offices and so on.

PRODUCTS : PRIME Battery Regenerator, Discharger and Tester

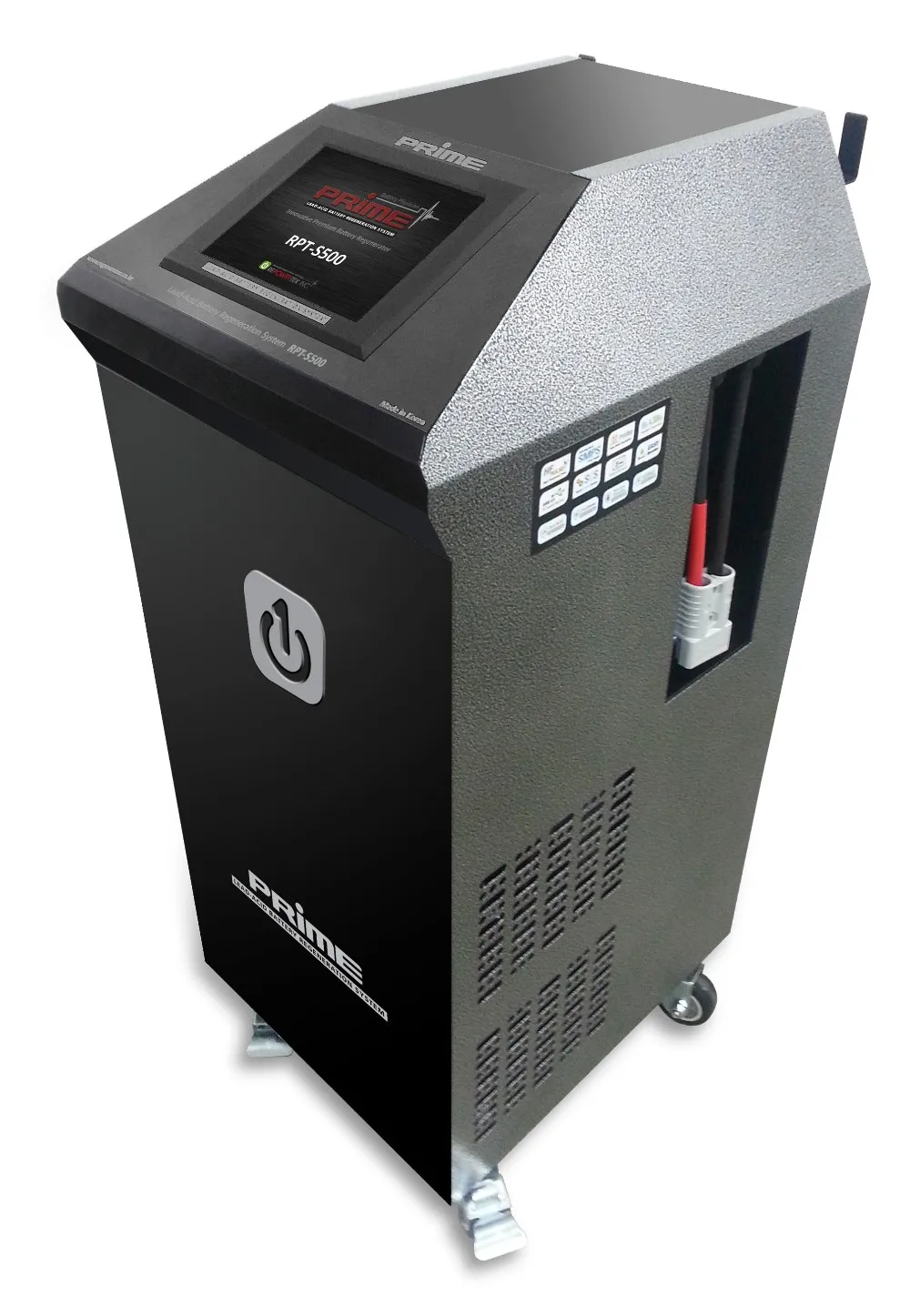

1. PRIME RPT-S500 Universal Battery Regenerator (All new renovation from 2016) : 2V~96V all-in-one voltage, 3.6KW SMPS, Max. 60A output current, 8 inch Touch Screen Monitor. This system easily de-sulfates all kinds of lead-acid batteries up to 3,000Ah such as Forklift, Telecom UPS, Golf Carts and automotive /solar/UPS batteries with sizes of 2-volt, 4-volt, 6-volt, 8-volt, 10-volt, 12-volt, 24-volt, 36-volt, 48-volt, 60-volt, 72-volt, 80-volt, 84-volt or 96-volt batteries. You can also connect batteries in series, such as max. 8 batteries of 12 volts each, which equals a 96-volt bank of batteries or max. 24 batteries of 2 volts, which equals a 48-volt bank of UPS and Forklift batteries as well. And more .... (Maximum Power Consumption : 3.6KW, Maximum Input AC Current : 20A, 210~240VAC, Single Phase - Direct cable connection to the main breaker)

RPT-S500 (3-in-1) : Packaging Size : 1010mm(H) x 400mm(W) x 480mm(D), 60kgs
1. Regenerator (2V~96V all adjustable voltages-in-one, 40Ah~ 3,000Ah capacity) at ‘REGENERATION’ mode
2. Charger (2V~96V all adjustable voltages-in-one, Up to 3,000Ah capacity) at ‘CHARGE’ mode
3. Power Supply (2V~96V free setting mode of Voltage, Current & Time for special & sleeping batteries)
* Mainly used for Forklift, TELECOM UPS, Golf Cart & other Traction bank connected batteries
* Maximum Limited Output Current : 2V~48V = 60A and 50V~96V = 30A
* A serial connection up to 12V x 8 (or 2V x 24) batteries at the same time.

1. RPT-S500 (U) : Universal 2V~96V 40Ah~3000Ah (3-in-1) 2. RPT-S500 (F) : Forklift 24V~80V up to 1500Ah (2-in-1)


2. RPT-S600 (All new renovation from 2016) is all same specifications with RPT-S500, except its housing size and weight only. Portable Compact Type for Maintenance Usage. Packaging Size : 550mm(H) x 400mm(W) x 480mm(D), 46kgs Discharger is NOT included.

1. RPT-S600 (U) : Universal 2V~96V 40Ah~3000Ah (3-in-1) 2. RPT-S600 (F) : Forklift 24V~80V up to 1500Ah (2-in-1)


3. PRIME RPT-E400 (Newly renovated from 2016) Universal Battery Regenerator : 6V~48V adjustable voltages, 1.8KW SMPS, Max. 30A output current, 210~240VAC Single Phase. This system easily de-sulfates all kinds of lead-acid batteries up to 1,000Ah such as Forklift, Telecom UPS, Golf Carts and automotive /solar/UPS batteries with sizes of 6-volt, 8-volt, 10-volt, 12-volt, 24-volt, 36-volt or 48-volt batteries. You can also connect batteries in series, such as max. 4 batteries of 12 volts each, which equals a 48-volt bank of batteries or max. 24 batteries of 2 volts, which equals a 48-volt bank of UPS and Forklift batteries as well. And more .... (Sales availability from July 2016)

RPT-E400 (3-in-1) :
1. Regenerator (6V~48V all adjustable voltages-in-one, 40Ah~ 1,000Ah capacity) at ‘REGENERATION’ mode
2. Charger (6V~48V all adjustable voltages-in-one, Up to 1,000Ah capacity) at ‘CHARGE’ mode
3. Power Supply Mode (6V~48V free setting mode of Voltage, Current & Time for special & sleeping batteries)
* Mainly used for Forklift, TELECOM UPS, Golf Cart & other Deep Cycle batteries
* Maximum Limited Output Current : 6V~48V = 30A
* A serial connection up to 12V x 4 (or 2V x 24) batteries at the same time.

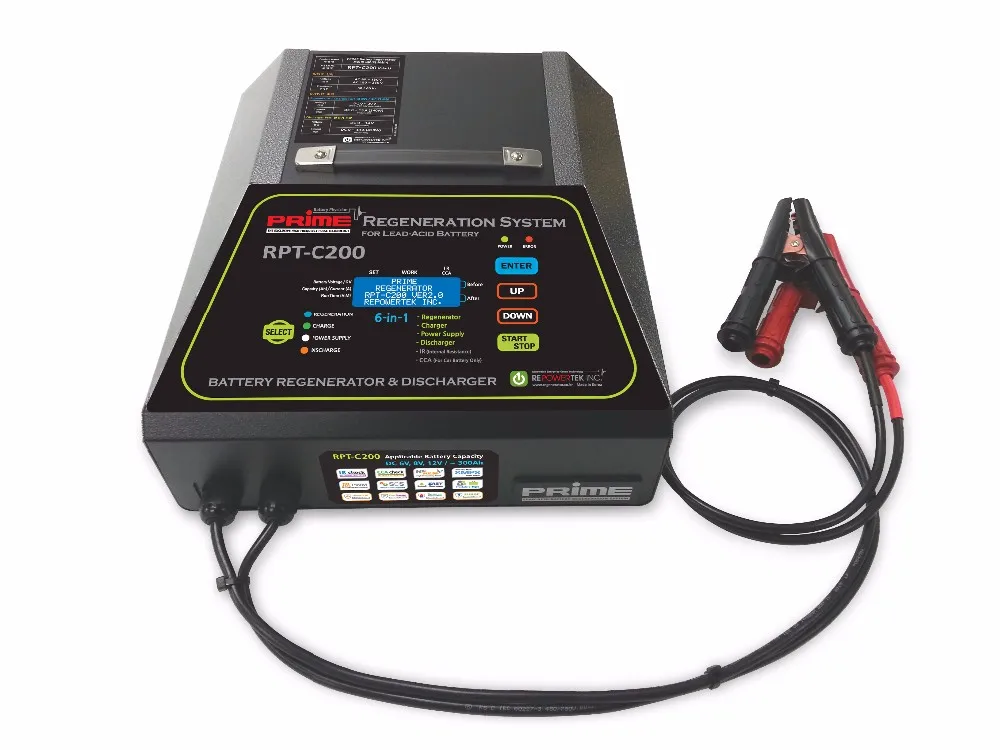

4. RPT-C200 (Newly upgraded from 2016) : 6V~12V Regenerator Mode(Max. 15A), Charge Mode, Power Supply Mode, Discharge Mode(Max. 30A) and Internal Resistance & CCA (For Car battery ) Checking (6-in-1) as newly upgraded. For 6V~12V all kinds of Lead-Acid Batteries, the regeneration performance will be much superior to any other products. You can resell RPT-C200 to Battery wholesale, retail shops and Car repair shops as a battery physician. This item will be very good for battery sellers due to the superior restoration effectiveness for feeble new batteries which lost chemical activation and over-discharged.

RPT-C200 (6-in-1) :
1. Battery Regenerator at ‘REGENERATION’ mode FOR 6V~12V, 40Ah~ 300Ah
2. Battery Charger at ‘CHARGE’ mode FOR 6V~12V, 40Ah~ 300Ah
3. Power Supply at ‘POWER SUPPLY’ mode (6V~12V manual setting mode of Voltage, Current & Time for special & sleeping batteries)
4. Battery Discharger (420 Watts) at ‘DISCHARGE’ mode
5. IR (Internal Resistance) Checking - before & after 2 ways
6. CCA (Clod Cranking Ampere for Car Battery ONLY) Checking - before & after 2 ways
* Mainly used for all types of batteries, but mostly applied up to 300Ah of 12V Solar, UPS, Deep Cycle & Automotive batteries.
* Maximum Limited Output Current : 6V~12V = 15A
* A serial connection up to 6V x 2 (12V) batteries at the same time.

* SPECIAL FEATURES :
- The most advanced battery regenerator – Highest restoration performance (Regenerator Mode)
- The highest efficient battery charger (Charge Mode)
- Perfect desulfation performance by high-frequency pulse and charge algorithm

- Special Battery Regenerative Power Supply (Power Supply Mode)
- Lower Current Charging for Non-used battery (Sleeping Battery) for a long time (Power Supply Mode)
- Stable Digital Discharger (Discharge Mode ; Max. 30A)
- Measurements for Voltage, Internal Resistance and CCA (Car battery ONLY)
- A full automation and easy to use
- Operation LED (Twinkling of one blue LED to see the operation at a long distance)
- Monitoring graph for output Voltage & Current situation in real time - Can be communicated with a Computer connecting by the USB Serial Port. USB Drive should be installed for the USB Serial Port, before connecting with the regenerator and computer. When you press this ‘PRINT’ Button, the graph will be printed on the above sheet image. (‘USB AM-AM Cable with double-shielded’ will be included in a package)


5. RPT-C300 (6-in-1) : All functions and features are same with RPT-C200. Only one difference is ‘Maximum Limited Output Current : 6V~12V = 25A’, The discharger supports up to 420 watts. The maximum power consumption: 600 watts

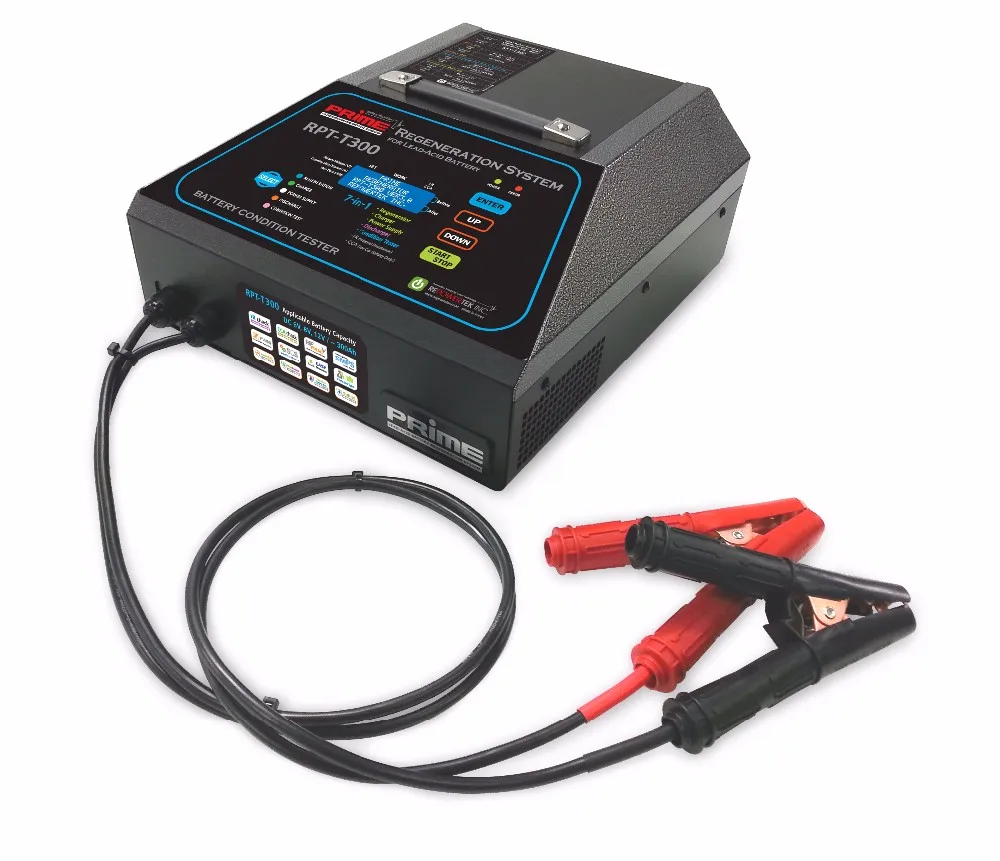

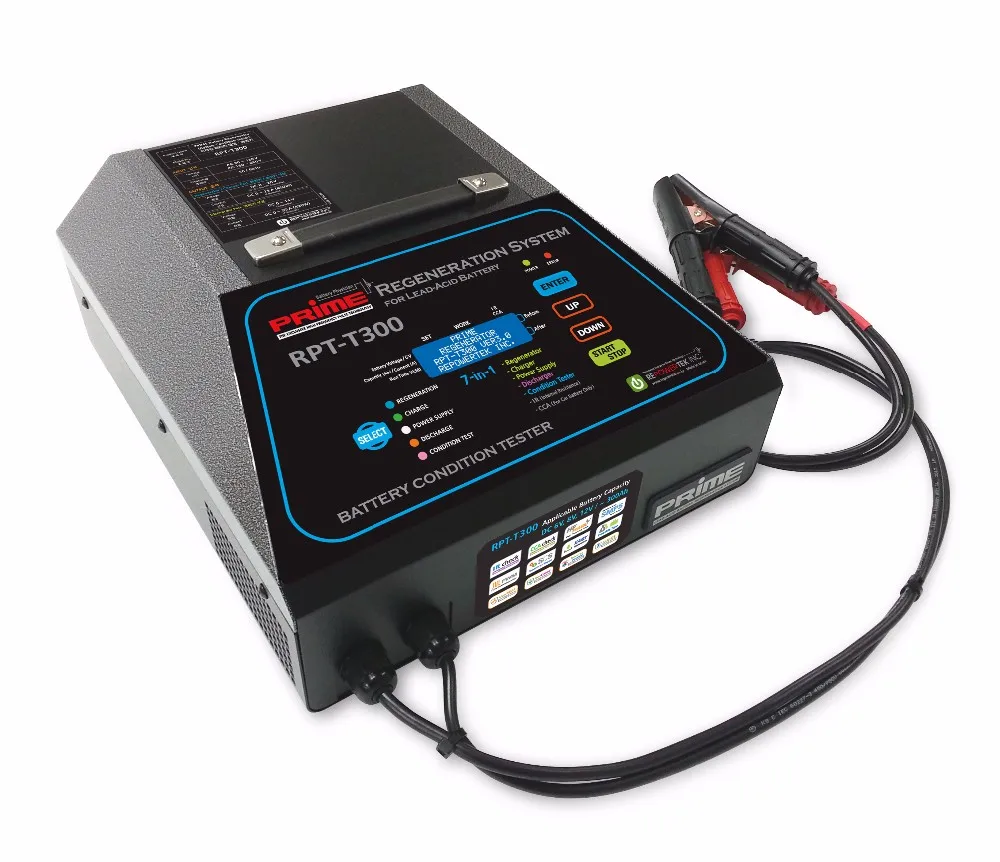

6. RPT-T300 (7-in-1) : All functions and features are same with RPT-C300. Only one difference is ‘Battery Test Mode’ included. (Same as a Battery Condition Identifier) ‘Maximum Limited Output Current : 6V~12V = 25A’, The discharger supports up to 420 watts. The maximum power consumption: 600 watts

* RPT-T300 Battery Condition Tester (7-in-1); It is a very special all-in-one Battery Condition Tester for 6V~12V lead-acid batteries. It supports multi-functions of digital Regenerator + Charger + Discharger + Power Supply + IR & CCA Checkers + Battery Condition Tester up to 300Ah at 6V~12V batteries . For 12V battery, it is composed of 2 volts x 6 cells. It is hard to know about shorted circuit /cell cut/cell corrosion state and any damaged cells prior to a restoration process. In this reason, the other competitors must check on these damaged cases after finishing a process only. So, we have developed on ‘RPT-T300’. It can find the short of electrodes and damaged cells within few minutes before restoration procedure. Auto battery condition test function (whether to be restored or not - by ‘TEST’ mode). By using it, most batteries will be assorted for targeting ones to be regenerated with our new RPT-T300 if they do not have any cell cut or short and internal cell's damage (corrosion). RPT-T300 has a full automated function to regenerate by setting of Voltage and Total capacity.

RPT-T300 is not an analyzer, but a battery condition tester with Regenerator & Charger & Power Supply & Discharger – 5 modes and 2 measuring functions combined for 6V~12V batteries. At ‘Condition Test’ mode, it can test the battery conditions (6V~12V, up to 300Ah) within a few minute. You can see it as Cell-cut, Cell-short or Corrosion on the screen with a beep sound. If the battery is tested as a good battery to be regenerated, then you can see "O.K-Tested" on the screen with a beep sound as well. With RPT-T300, you can regenerate all kinds of lead-acid batteries including 6V~12V VRLA AGM & GEL, Car, Deep Cycle, Solar and so on. The discharger supports up to 420 watts.

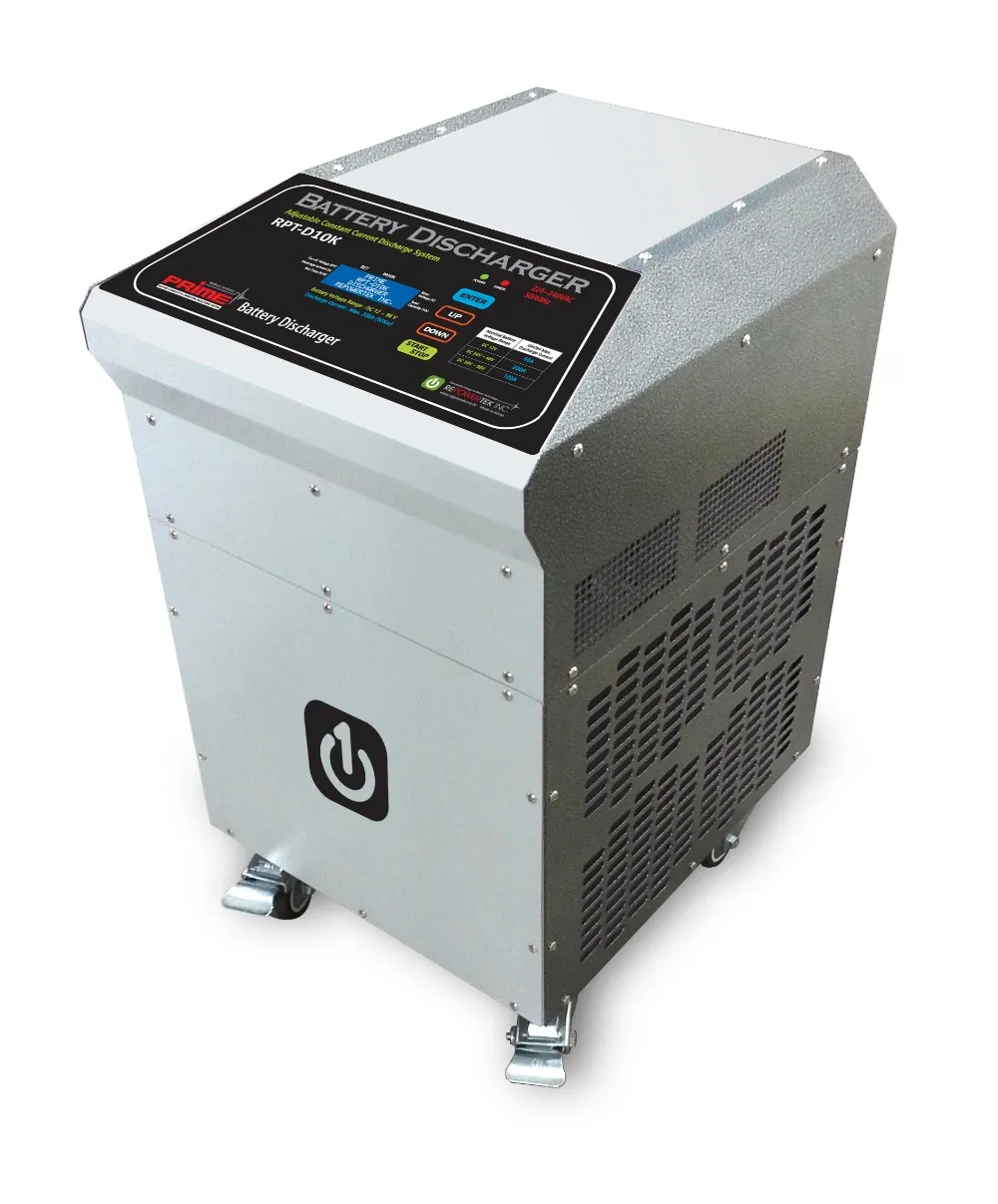

7. RPT-D10K Discharger : 220VAC, 10KW, Digital Constant Discharging mixed technology with IGBT and Resistor and high-frequency pulse, Maximum Limited Discharge Current Rates : 12V-50A, 24V~48V : 200A, 50V~96V : 100A. It supports a monitoring data sheet to be printed, after connecting by a USB between Discharger and PC. Net Weight 42.10kgs Gross Weight : 64.10kgs(DHL) 670 x 520 x 920 mm RPT-D10K can be communicated with a Computer connecting by the USB Serial Port. USB Drive should be installed for the USB Serial Port, before connecting with the regenerator and computer. When you press this ‘PRINT’ Button, the graph will be printed on the above sheet image.


* The regeneration time with any PRIME regenerator takes 15 hours including a full charge. But any battery was already nearly full charged, the operation of PRIME will be automatically finished earlier than setting time.

* PRIME regeneration methods are not adding any sulfuric-acid and chemical additive in any cell at all.
