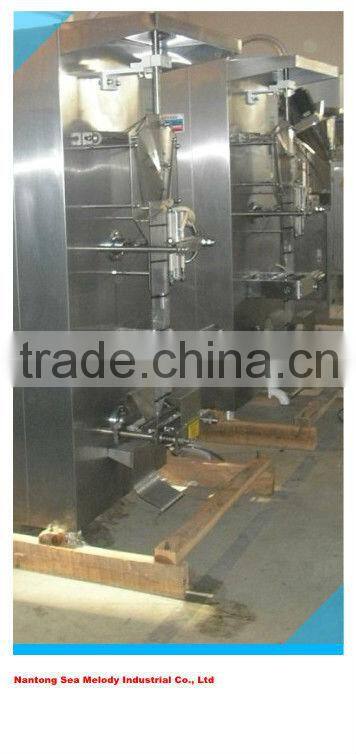

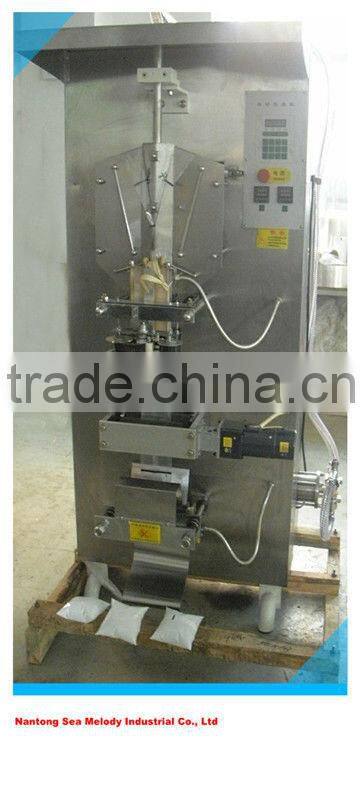

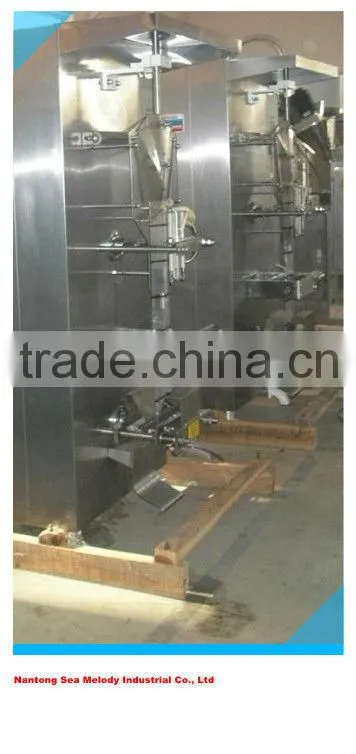

SM Full-automatic Liquid Packing Machine

Specifications

SM Full-automatic Liquid Packing Machine
1. high accuracy and efficiency
2. easy operation
3. reasonable price

SM Full-automatic Liquid Packing Machine









I.Main characteristic

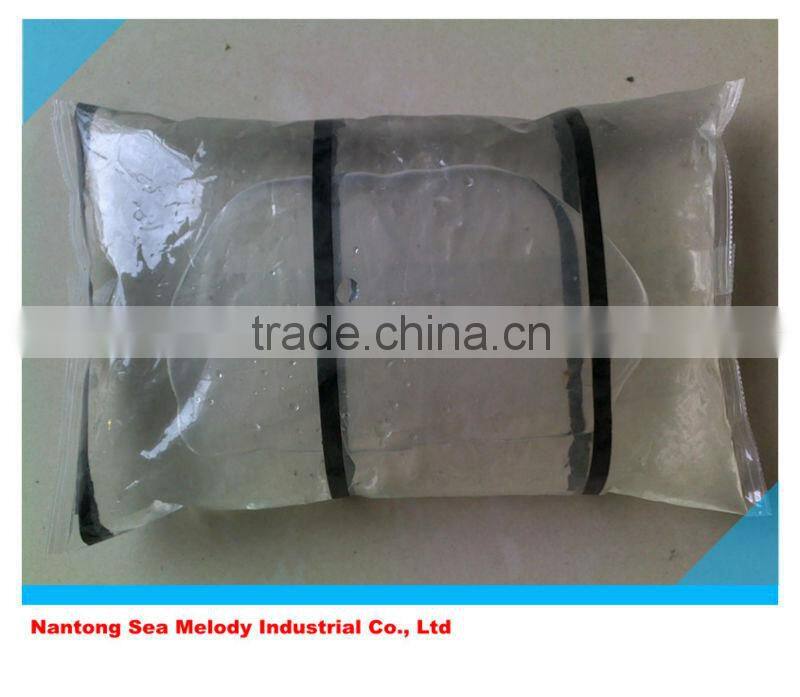

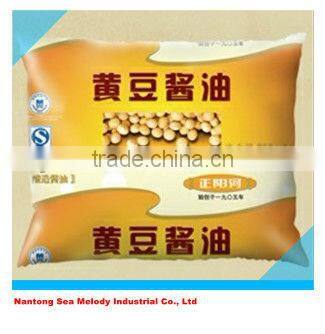

This machine is a vertical type machine, it seal three sides, intermittent high-accuracy liquid packing machine. It can automatic complete the full process of bag-making, fill, seal, print number, cut and counting and so on, be controlled by microprocessor, the photo electricity eye automatic track color code , allocated accurately and reliable , it is the most advanced liquid object in domestic market at present, especially suitable to pack the single and compound films, such as pack sauce, liquor, vinegar, soft drinking, soymilk, milk, peanut oil, vegetable oil, and various plant oil , mineral water and liquid chemical products.





II.Performance parameter



Model	SM-1000
Speed	1800Bags/H   1100~1300Bags/H
capacity	50~500ml / 200~1000ml
power	AC220V/50Hz   AC380
Confession paper electric motor	25W/220V
heat-seal power longitudinal seal/ transversal seal	300W/500W
Hotor power	370W/380V/220V
Outline dimension	950× 800×2000 mm
Machine weight	380Kgs
