SM PLC Controlled Piston Filling Machine

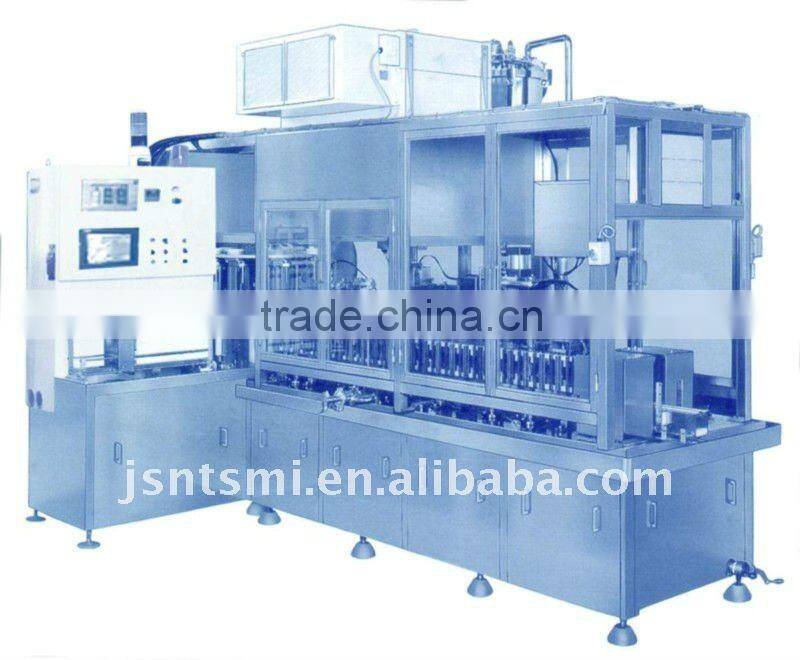

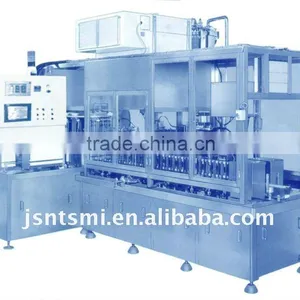

SM PLC Controlled Piston Filling Machine photo-1
US$ 6,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Nantong
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity
Packaging Type Cartons
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Mechanical
Power 10kw
Place of Origin Jiangsu, China
Brand Name SM
Model Number 240

Specifications

SM PLC Controlled Piston Filling Machine
1.Good sales in overseas
2.PLC controller
3.Special order

SM PLC Controlled Piston Filling Machine



Major characteristics:

This is our newly developed filling machine, the whole parameters have matched the international advanced level, especially, the partial have surpassed the abroad similar products, also approved by the world famous chemical magnate. This is an linear piston filling machine for cream and liquid. Material filling is controlled by PLC and touch screen control panel. Accurate measuring, advanced structure, stable operating, low noise, widely adjusting range, and fast filling speed. It is suitable for filling materials that are easily volatilizing, easily crystallizing or easily foaming;liquid which can strongly corrupt rubber, plastic, high viscous liquid, and semifluid .

Digitize adjustment in the Human–Computer Interaction ,and the filling volume requiment of 100ml, 200ml,etc can be easily done by the touch screen. The filling capacity of each filling head can be adjusted finely ,

Outside and wetted parts are made of excellent stainless steel. The surface is processed by polishing. Beautiful look, meets GMP standard.

Technical parameter:

No.

Items

Performance

1

machine dimension (L×W×H)

2000mm×1100mm×2200mm

2

No. of filling head

8

3

Suitable bottle size  (abnormal bottles can also be valid)

Diameter

Φ30mm~Φ100mm

Height

50mm~350mm

4

diameter of bottle mouth

≥φ18mm

(if the size less than 18mm, that can be specially designed)

the outer diameter of the bottle error range ≤±1mm

5

suitable filling range

50ml~500ml

6

production capacity

≤ 4000 bottles/hour

(tested by water)

7

error range

±1%

8

voltage

220V; 50Hz

9

power of main engine

2.5Kw

10

Pneumatic(air-operated)source

0.6 Mpa clean and stable compressed air





SM PLC Controlled Piston Filling Machine
