Specifications
SMZG-100C automatic tube making machinery1.new generation tube processing equipment
ntrolled by PLC

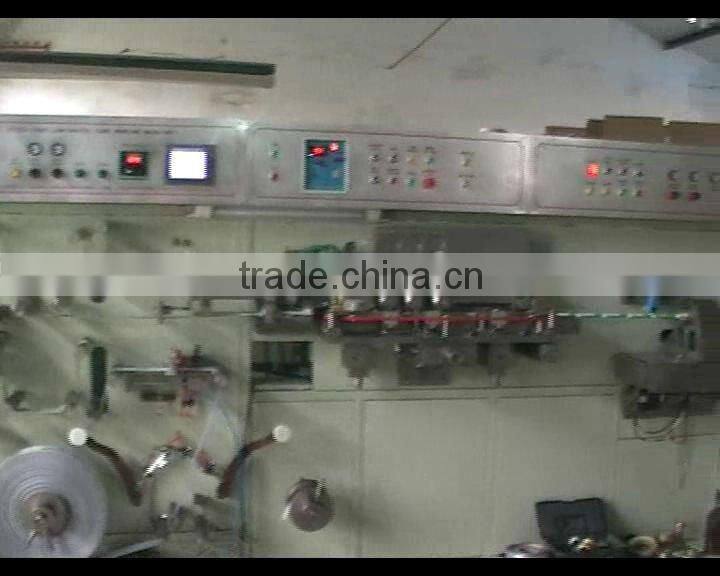

SMZG-100C automatic tube making machinery
I. Brief Introduction
Model SMZG-100C Tube Body Maker Machine. It is new generation tube processing equipment that is developed successfully.
It is controlled by PLC contacting and pressing man-machine dialogue screen function firm operation and adjustment easy. It specializes in welding the side crack of compound soft tube cracks keep firmly and smoothly; it can cover the outer aluminum foil, while welding aluminum-plastic-compound soft tube. It can keep the filling products in good quality for a long time. It is widely used in the producing of products, packing soft tube such as creams, lotions including toothpaste, food, medicine, cosmetics and etc.
II. Main technique parameter
Tube Length: |
65-200mm |
Tube Diameter: |
12.7-50mm |
Power Supply: |
220VAC/50 Hz |
Power of the Machine: |
10KW |
Cooling water requirements : |
water pressure0.2MPa; |
Flow capacity |
3 to 5 L /minute, soft water |
Air pressure requirement |
0.5-0.7MPa |
Shape size: |
3300X1900X1200mm |
Machine weight: |
1800kg |
