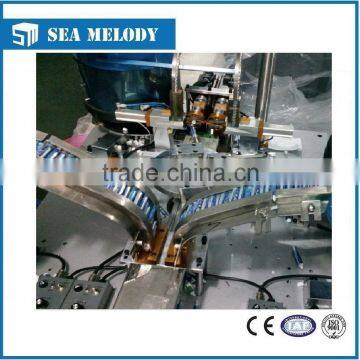

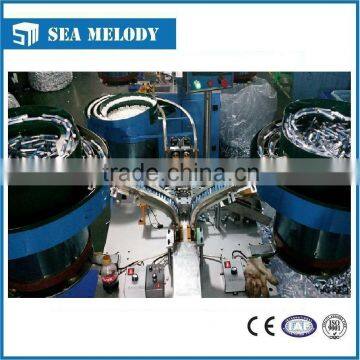

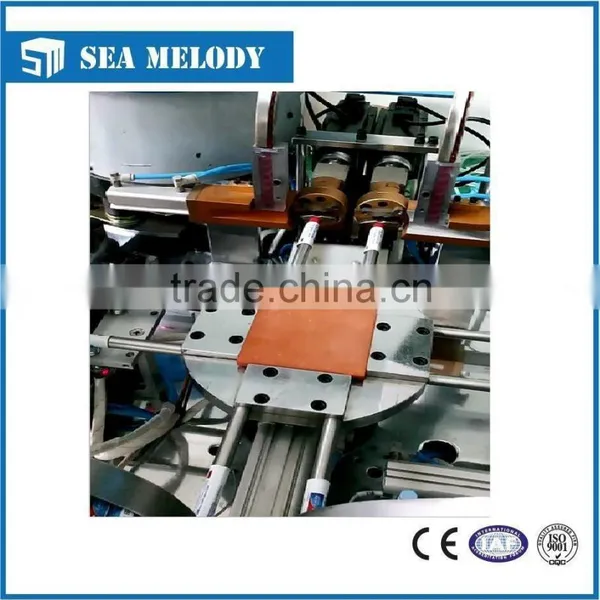

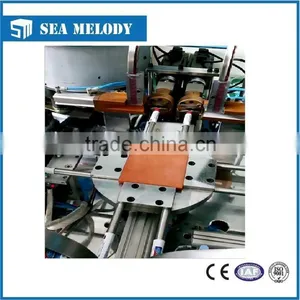

mini toothpaste tube aluminum foil sealing and capping machine
- 0 per Month
- SHANGHAI
- T/T
- high speed metal can vacuum seamer machine
- Factory Automatic Powder Can Seamer/Sealing Machine with Discount
- fish canning machine food cans sealing machine
- milk powder tin sealing machine special-shaped cans sealing machine
- MDcare MD660 LCD Screen Continuous Medical Sealer Dental Cutting 1.2cm width Sterilization Machinery
- MDcare MD386 7'' LCD Touch Screen 77cm length Intellectual Cut-seal-print Complexer
Product Details
Condition: | New | Application: | Food, Commodity, Medical, Chemical | Packaging Type: | Cartons |
Packaging Material: | Plastic, Wood | Power: | 500w | Place of Origin: | Jiangsu, China |
Brand Name: | SM | Certification: | ISO9001 |
Product Description
Specifications
mini toothpaste tube aluminum foil sealing and capping machine1.Good sales in overseas
2.PLC controlle
mini toothpaste tube aluminum foil sealing and capping machine y
1.Brief introduction
Our newly produced foil sealing and Cap screwing machine is widely used in industry of tooth paste, cosmetic, drugs and food etc.
It can load and unload the tubes automatically,
foil sealing can also be done together.
Controlling system PLC is adopted, so the operation is now rather easy.
The normal size sealing and cap screwing speed can be 60pcs, capping speed is adjusted by frequency button on the PLC monitoring.
We adopt the organization of precise-cam-degree in Position-turning.
This organization can fix position precisely and firmly.
The position-turning electric machine can change speed by using different frequency.
Customers can adjust the working speed themselves.
The rotary valve adopts accuracy cam indexing mechanism with precise and smooth positioning, universal.
Heating aluminum foil with special technique makes sealing quick, nice and fast.
Servo engine driving makes capping adequately screwed.
The user can adjust speed with the frequency conversion type speed control to the rotating engine.
P.S. All types of screwing capping rocker screens, guide rails and sealing dies can be customized.
2.Main technique parameter
Power supply: | 220VAC/50Hz | Equipment power: | 2.5KW |
Air consuming capacity: | 0.35 m3 / min | Soft tube diameter: | Φ16-40mm |
Soft tube length: | 70-180mm | Production Capacity: | 50-60 pcs/min |
Shape size: | 1700×2100×1800mm | Net weight: | 1200Kg |
