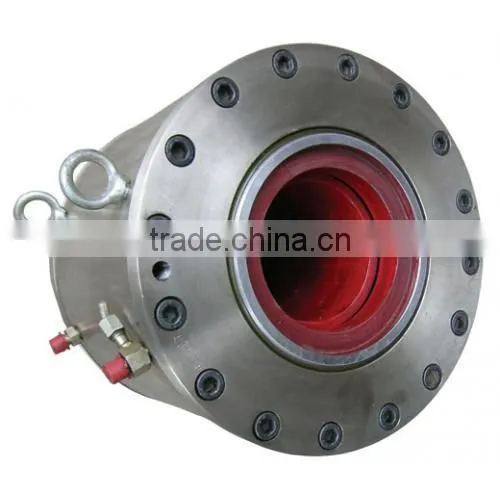

Hydraulic jack for prestressing
- 1000 Set / Sets per Month
- Qingdao
- T/T
- cheap tap and die set metric screw thread taper
- custom rubber silicone suction cups
- High Quality Professional 6PCS Coarse Thread Screw Extractor Set
- Mini Electric Hand Drill Holder Suitable For Electric Drill Factory Direct Sale Good Price In Stock
- Solid Carbide Twist Drill
- China Good price manufacturer Professional PDC drill /Used for diamond diamond core drill bits
Product Details
Place of Origin: | Henan, China | Brand Name: | CMEC | Model Number: | YDC series |
Type: | Hydraulic Jack | Certification: | CCC | Min Height: | 320-450mm |
Max Height: | 520-650mm |
Product Description
Hydraulic jack is a specialized machine for prestressing engineering. It can be applied both to pre-tension and post-tension project. Using different models, you can simultaneously stretch a bunch of 2 to 22 strands. The nominal tensile force is 65t up to 1000t.
Our YDC series hydraulic jack is a product by our independent research and development. After tens of years’ improvement, it is compact in size, smooth and steady while working, and very reliable in leak tightness and service life.
The hydraulic jack is powered by our ZB series high-pressure electric oil pump.
Model | Rated Tension | Stroke | Tension cylinder area | Rated oil pressure | Weight | Size |
KN | mm | mm2 | MPa | Kg | mm | |
YDC650 | 650 | 200 | 13253 | 50 | 44 | Ø 190×320 |
YDC1200 | 1200 | 200 | 24327 | 50 | 75 | Ø 245×325 |
YDC1500 | 1500 | 200 | 30257 | 50 | 91 | Ø 270×332 |
YDC2000 | 2000 | 200 | 37791 | 53 | 110 | Ø 297×342 |
YDC2500 | 2500 | 200 | 46181 | 54 | 133 | Ø 325×347 |
YDC3000 | 3000 | 200 | 56347 | 54 | 180 | Ø 375×362 |
YDC3500 | 3500 | 200 | 64795 | 54 | 218 | Ø 417×362 |
YDC4000 | 4000 | 200 | 73434 | 55 | 280 | Ø 424×365 |
YDC4600 | 4600 | 200 | 84528 | 55 | 316 | Ø 472×374 |
YDC5000 | 5000 | 200 | 93717 | 54 | 376 | Ø 500×392 |
YDC6000 | 6000 | 200 | 106814 | 56 | 480 | Ø 540×410 |
YDC6500 | 6500 | 200 | 124112 | 53 | 550 | Ø 580×434 |
YDC10000 | 10000 | 200 | 202318 | 50 | 1450 | Ø 590×740 |
1. Considering the loss of tensile force by resistance, the hydraulic jack outputs about 95% of nominal tensile force. If the jack needs strict and continuous working, we recommend higher nominal tensile force than the load, by about 20%.
2. The diameter of center hole shall be 17mm larger than the outer circle of taper holes.
3. In order for your convenience, we made a table of model selection for stretching 1860Mpa Ø15.24mm strands at 0.85Fptk tensile force.
1. Preparing | |
| 1. Clean the rust on the strands; 2. Install the working anchor; 3. Install the grippers and tighten them. |
2. Install the hydraulic jack and tooling anchor | |
| 1. Install the spacing ring; 2. Install the hydraulic jack, and connect it to the oil pump; 3. Install the tooling anchor and grippers. |
3. Stressing | |
| 1. Pre-tension the strands and record the initial data; 2. Adjust the position of the hydraulic jack and let it coaxial with the anchor; 3. Feeding oil to the jack until the pressure rises to set data; 4. Measure the elongation of the strands and record the process. |
4. Anchoring | |
| 1. Slowly open the stop valve of feeding circuit, the cylinder will return and the grippers will grasp the strands; 2. Close the stop valve of returning circuit, return the oil to the tank; 3. Remove the grippers, tooling anchor, hydraulic jack and the spacing ring. |
5. Seal the anchor. | |
| 1. Cut the strands at 50mm from the anchor, and seal the anchor with concrete; 2. Grout the duct with mortar within 48h; 3. Smoothen the end with concrete. |
CPS is short for CMEC PRESTRESS SYSTEM (TM). It contains all kinds of prestressing jacks, oil pumps, duct making and processing machines, fix-end anchor making machines, as well as all kinds of anchorage, couplers, ducts (metal and plastic corrugated pipes), PC strands, as well as mortar mixers and pumping system. We are a one-stop supplier and servicer for your prestressing project. The CPS is widely adopted in highway bridges, railway bridges, dams, high-raise buildings and so on.
Mono stressing jack | Electric oil pump | Anchorages | Anchor coupler |
Corrugated duct maker | Corrugated duct flatter | PC strands | Extruder |
Onion jack | Strand pusher | Grout pump | Grout mixer |
