Help CenterPrestressed Anchorage
Related Products
Specifications
P anchorage system is used for directly transmitting post-stressing to beam end.

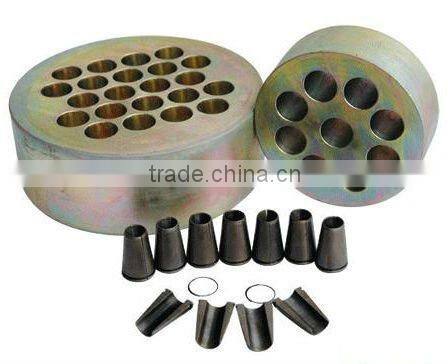

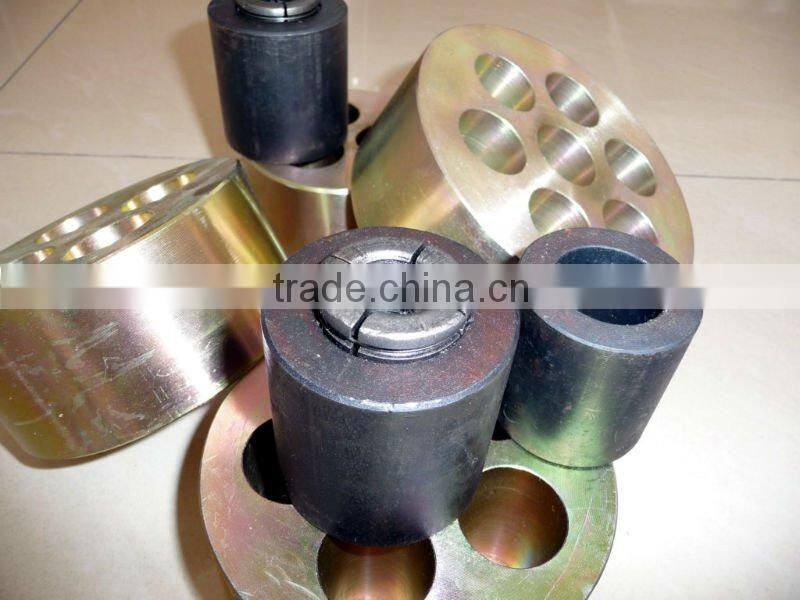

We provide anchorages complete in specifications. The BYM series wedge anchors can work automatically, have a high anchor efficiency and very good performance. They are ease to use, safe and reliable. They are crystallization of large quantity of experiences and scientific research.

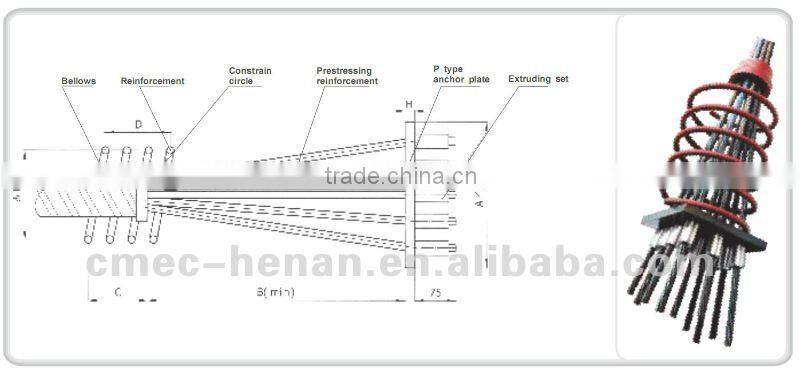

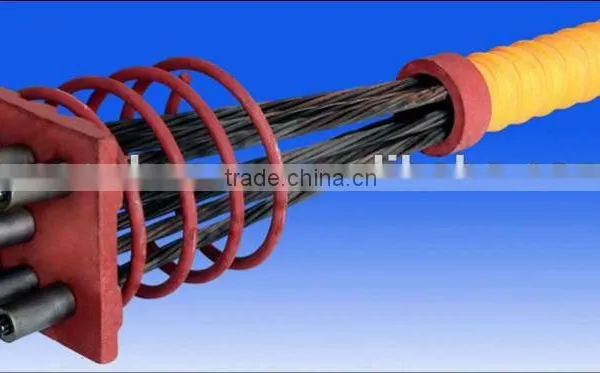

P anchorage system is used for directly transmitting post-stressing to beam end, including:Extrusion sheath (contain the triangular steel extruding spring), bursting reinforcement, anchorage ring, constraint circle etc. The extruding set, extruding spring and strand adopt the special GYJ type extrusion machine to extrude anchorage. The matched pump is ZB2x2 type.
They are used to anchor prestressing strands from 12.7mm and 15.2mm, 15.24mm. The number of holes varies from 1 to 22 and we can produce according to your specific requirements. The strength of extension of a single can be up to 2000 Mpa. Our products are very popular in China and many countries in the Middle East, Southeast Asia, and Africa etc. We produce mcore than 6.5 million holes in a single year.
Send Inquiry to This Supplier
