Home > Products > Industrial Scales > Hot Sales 3t Zebra Electronic Cattle Weighing Scales, Weighing Beams

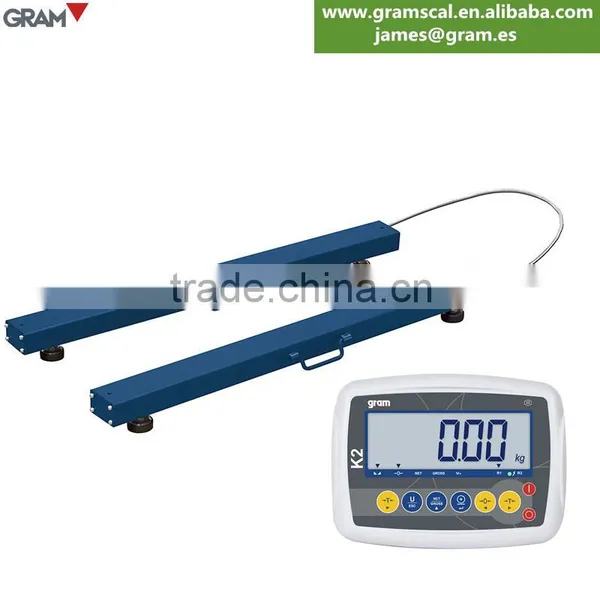

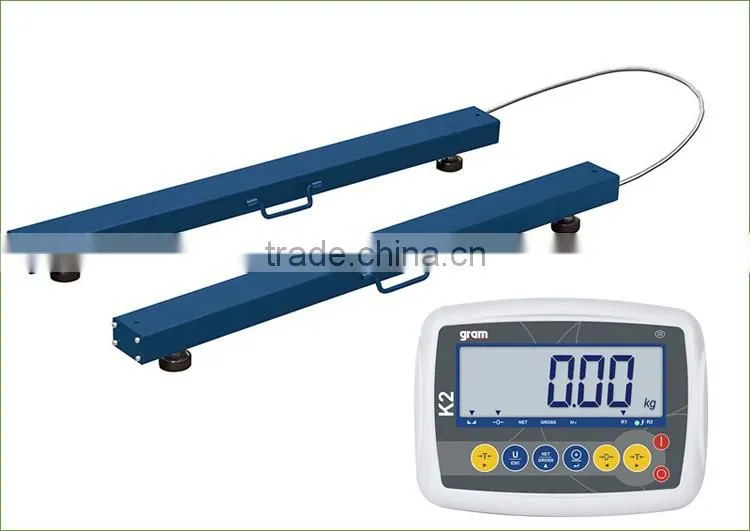

Hot Sales 3t Zebra Electronic Cattle Weighing Scales, Weighing Beams
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | GRAM | Model Number: | Zebra 12 |
Type: | Livestock Scale | Power Supply: | 100-240V | Display Type: | LCD+Back Light |
Rated Load: | 3000kg | Accuracy: | 1kg |
Product Description
Specifications
• Easy installation under any structure.
• Perfect to weigh rigid structures: beams, tanks,
animal cages, etc.
• Two load cells in each bar, IP-67 protection.
Hot Sales 3t Zebra Electronic Cattle Weighing Scales, Weighing Beams
Weigh long or special objects
• Easy installation under any structure.
• Perfect to weigh rigid structures: beams, tanks, animal cages, etc…
• Two versions: Epoxy painted structure or stainless steel version.
• Two load cells in each bar, IP-67 protection.
• Wire length: 4 meters between each bar and 4 meters between the bar and the
indicator (optional longer cable).
• Lifting handles in every bar for an easy installation and maintenance.

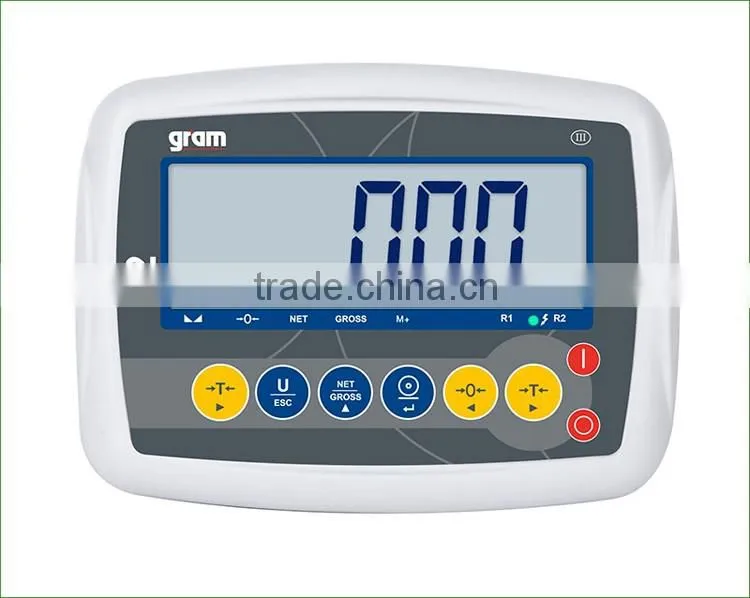

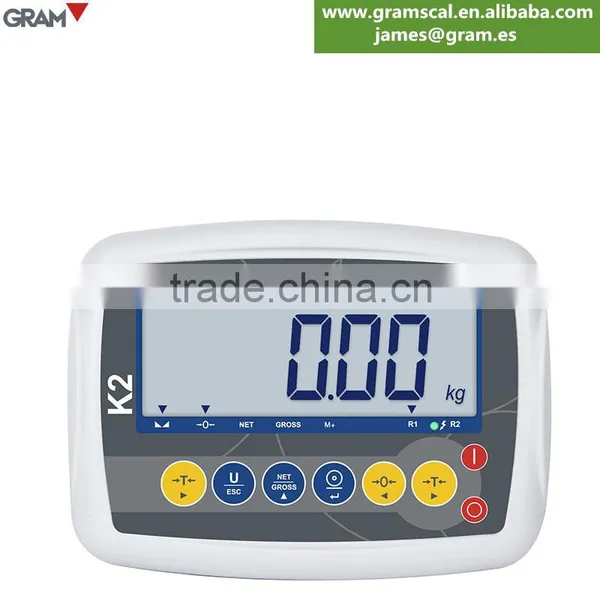

• Connecting to GRAM indicators.
Lifting handle
In order to facilitate the installation and maintenance, every bar of Zebra is equipped with a lifting handle.
Adjustable feet
The adjustable feet allow leveling the platform despite possible irregularities in the floor and they ensure an optimal force transmission to load cells.
Power: 110-230 V/50 Hz / 60Hz 11 V AC
Operation temperature: +5°C /+35°C
Technical Features
Model | Zebra 8 | Zebra 12 | Zebra 8 AI | Zebra 12 AI |
Capacity | 3000 kg | |||
Readability | 1000 g | |||
Structure | Painted steel epoxy | Painted steel | ||
Load cells | H8C Rebel OIML C3 Class | B8D Rebel stainless steel | ||
Useful size (mm) | 60 x 100 x 800 | 60 x 100 x 1200 | 60 x 100 x 800 | 60 x 100 x 1200 |
Minimal height (mm) | 95 | |||
Maximal height (mm) | 120 | |||
Total net weight (kg) | 20 | 28 | 20 | 28 |
Key Features of Cattle Weighing Scale
External Dimensions(mm)
