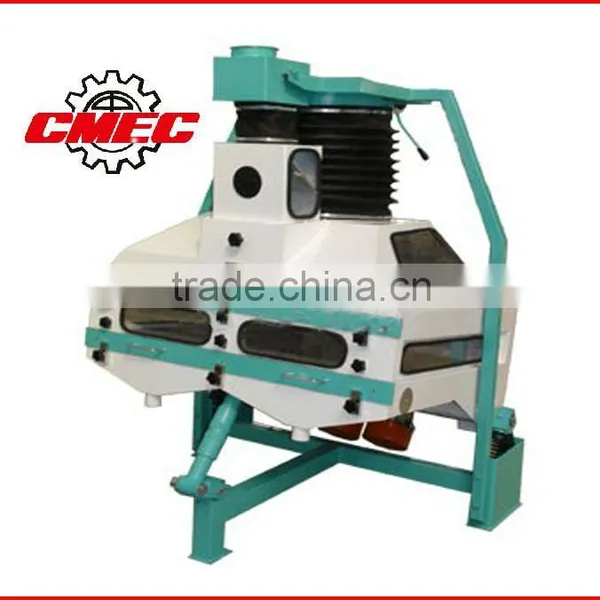

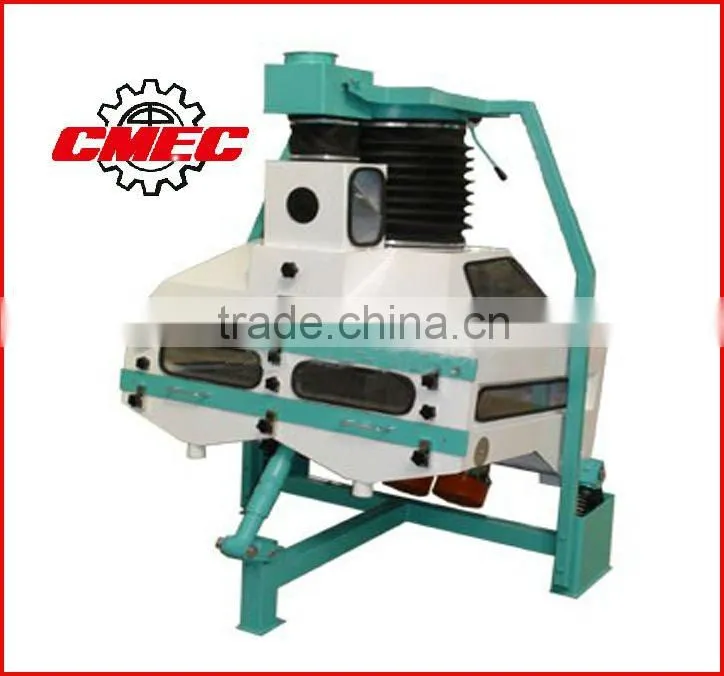

2011 Hot Sell TQSF Gravity Destoner

2011 Hot Sell TQSF Gravity Destoner thumbnail-1
2011 Hot Sell TQSF Gravity Destoner photo-1
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
CMEC, CMEC Henan
Model Number:
CMEC-TQSX
Contact Supplier Request Quote Chat Now
China Machinery Engineering Henan Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name CMEC, CMEC Henan
Model Number CMEC-TQSX
Production Capacity 85%

Specifications

Gravity destoner
1.Air-sucked, vibrated, dust-free operation
2.Operation and adjustment are easily
3.high effective capacity

Gravity destoner
1.Air-sucked, vibrated, dust-free operation
2.Operation and adjustment are easily
3.high effective capacity



FEATURE: In grain and pulse cleaning units; separates stone and other materials that have more density than the product.



PRINCIPLE OF OPERATION:

The corns to be cleaned and separated from the stone are poured down continuously over the sieve.Through the air sucked from overhead, the grains are floated and moved over the sieve. Relatively heavypieces keep standing on the sieve. Through the harmonic movement of the sieve, these heavy pieces are pushed to the upper side. Stones go out through the single outlet in the front and stone-free grains go out through the double-outlet in the back. According to the product type, the quantity of air is adjusted with the air-adjustment clacks. The slope of the tray is also set according to the product type. As standard, it is adjusted for the wheat.



Type

Sifter width. (mm)

Weight (kg)

Counter Pressure (Pa)

Dimension   (mm)

Power (Kw)

Capacity (t/h)

Air Requirement (M3/h)

TQSF40

400

215

<980

1270x700x1600

2 x 0.25

1.5-2.5

3000

TQSF50

500

230

<980

1420x780x1800

2 x 0.25

4-6

4000

TQSF63

630

280

<980

1450x876x1800

2 x 0.25

5-7

4500

TQSF80

800

340

<980

1450x1046x1800

2 x 0.25

7-9

6000

TQSF100

1000

400

<980

1500x1246x1900

2 x 0.25

9-11

8000

TQSF125

1250

500

<980

1500x1496x1920

2 x 0.25

11-16

10200

TQSF150

1500

610

<980

1500x1746x1800

2 x 0.37

12-18

12000

TQSF175

1750

680

<980

1500x1996x1800

2 x 0.37

18-23

15000

TQSF200

2000

720

<980

1500x2246x1900

2 x 0.37

16-26

17000

TQSF250

2500

980

<980

1500x2796x1920

2 x 0.37

22-32

20600
