Specifications
• Easy installation under any structure.
• Perfect to weigh rigid structures: beams, tanks,
animal cages, etc.
• Two load cells in each bar, IP-67 protection.

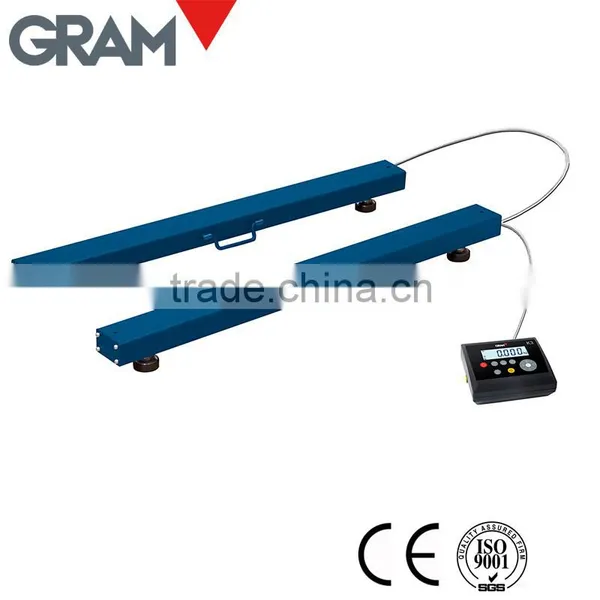

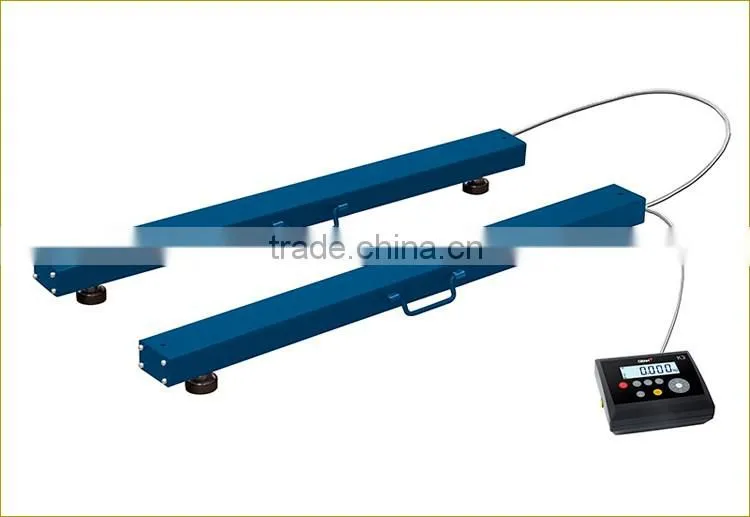

2016 Hot Sales Zebra Series Live Stock Weighing Scale
Weigh long or special objects
• Easy installation under any structure.

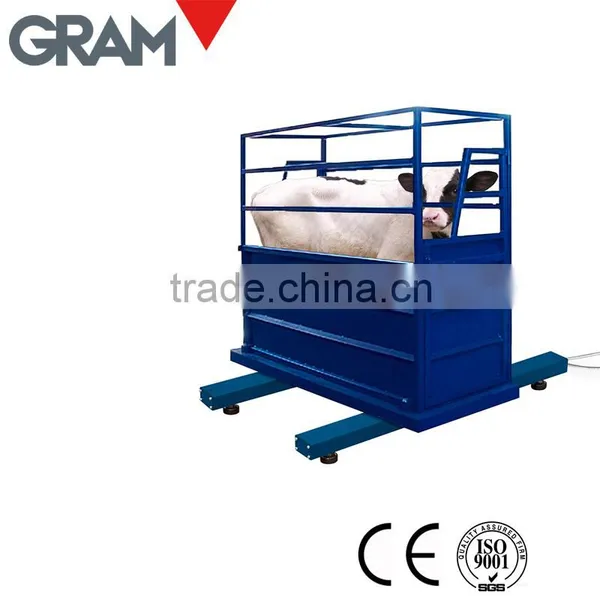

• Perfect to weigh rigid structures: beams, tanks, animal cages, etc…
• Two versions: Epoxy painted structure or stainless steel version.
• Two load cells in each bar, IP-67 protection.
• Wire length: 4 meters between each bar and 4 meters between the bar and the
indicator (optional longer cable).
• Lifting handles in every bar for an easy installation and maintenance.
• Connecting to GRAM indicators.
Lifting handle
In order to facilitate the installation and maintenance, every bar of Zebra is equipped with a lifting handle.
Adjustable feet
The adjustable feet allow leveling the platform despite possible irregularities in the floor and they ensure an optimal force transmission to load cells.
Power: 230 V/50 Hz (Euro) 11 V AC
Operation temperature: +5°C /+35°C
Technical Features
Model |
Zebra 8 |
Zebra 12 |
Zebra 8 AI |
Zebra 12 AI |
Capacity |
3000 kg |
|||
Readability |
1000 g |
|||
Structure |
Painted steel epoxy |
Painted steel |
||
Load cells |
H8C Rebel OIML C3 Class |
B8D Rebel stainless steel |
||
Useful size (mm) |
60 x 100 x 800 |
60 x 100 x 1200 |
60 x 100 x 800 |
60 x 100 x 1200 |
Minimal height (mm) |
95 |
|||
Maximal height (mm) |
120 |
|||
Total net weight (kg) |
20 |
28 |
20 |
28 |
Key Features of Digital Weight Machine
External Dimensions(mm)
