Help CenterSCorpion Series Epoxy Painted Steel Structure Digital Pallet Weighing Scale
Related Products
-
Latest Generation VMAX Series Stainless Steel Digital Platform ScaleNegotiableMOQ: 1 Piece -
2016 Hot Sales PSK-60S Waterproof IP-67 Electronic Weighing ScaleUS$ 153 - 172MOQ: 10 Pieces
-
2016 Hot Sales PSK-60ME Waterproof IP-67 Electronic Weighing ScaleUS$ 158 - 177MOQ: 10 Pieces
-
Hot Sales MISSIL F2-60 Bright LCD Display Electronic Weight ScaleUS$ 82 - 94MOQ: 20 Pieces
-
2016 Hot Sales PSK Series Waterproof IP-67 Stainless Steel ScaleUS$ 158 - 177MOQ: 20 Pieces
Specifications
• Pallet scale with four high resistant load cells.
• Three available versions: epoxy painted steel,
zinc and stainless steel.
• Load cells: C3 OIML and junction box in ABS or
stainless steel.
• A handle and front wheels to move it easily.
SCorpion Series Epoxy Painted Steel Structure Digital Pallet Weighing Scale
Technical Features
Model |
SCorpion |
SCorpion AI |
SCorpion Z |
Capacity |
1500 kg |
1500 kg |
1500 kg |
Readability |
500 g |
500 g |
500 g |
Structure |
Painted steel |
Stainless steel |
Zinc steel |
Load cells |
H8C Rebel OIML C3 Class |
B8D Rebel stainless steel |
H8C Rebel OIML C3 Class |
Junction box |
ABS or Stainless steel load cells with IP-67 protection |
||

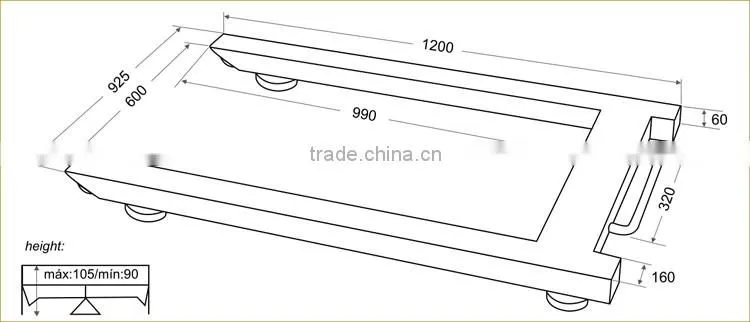

Fork dimensions (mm) |
925 x 1200 |
||
Fork dimensions int. (mm) |
990 x 600 |
||
Total dimensions (mm) |
1200 |
||
Fork height (mm) |
60 |
||
Height min. (mm) |
90 |
||
Height max. (mm) |
105 |
||
Total net weight (kg) |
47 |
67 |
50 |
Scorpion Series: easy to transport and weigh everything
• Pallet scale with four high resistant load cells.
• Three available versions: epoxy painted steel, zinc and stainless steel.
• Load cells: C3 OIML and junction box in ABS or stainless steel.
• A handle and front wheels to move it easily.
• Fork size: 920 x 1200 mm.
• High protection against corrosion and water (zinc and stainless steel models).
• Column to support indicator (optional).
• Connecting to GRAM indicators.

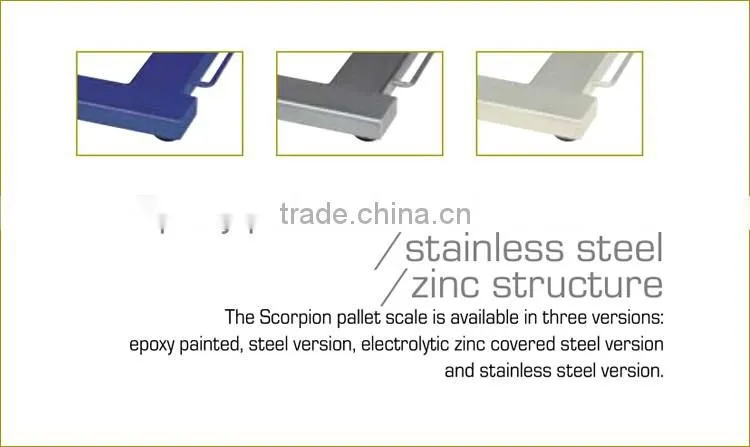

Epoxy painted steel structure/stainless steel /zinc structure
The Scorpion pallet scale is available in three versions: epoxy painted steel version, electrolytic zinc covered steel version and stainless steel version.

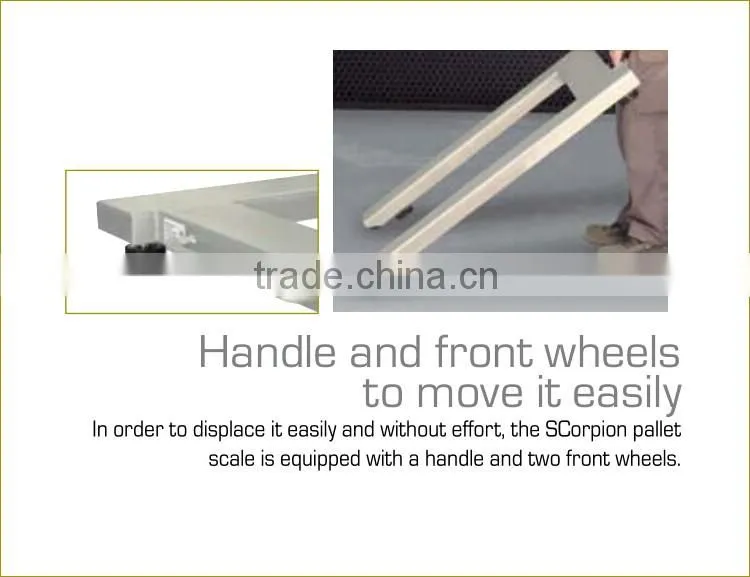

Handle and front wheelsto move it without problem
In order to displace it easily and without effort, the SCorpion pallet scale is equipped with a handle and two front wheels.
Power: 230 V / 50 Hz (Euro) 11 V AC
Operation temperature: +5°C /+35°C
AVAILABLE OPTIONS
Column
Connection cable extension
Stainless steel wall support
Indicators in Legal Metrology: IX or HK
Indicators for internal use: K3, K3i and SC
Key features of Pallet Weighing Scale
