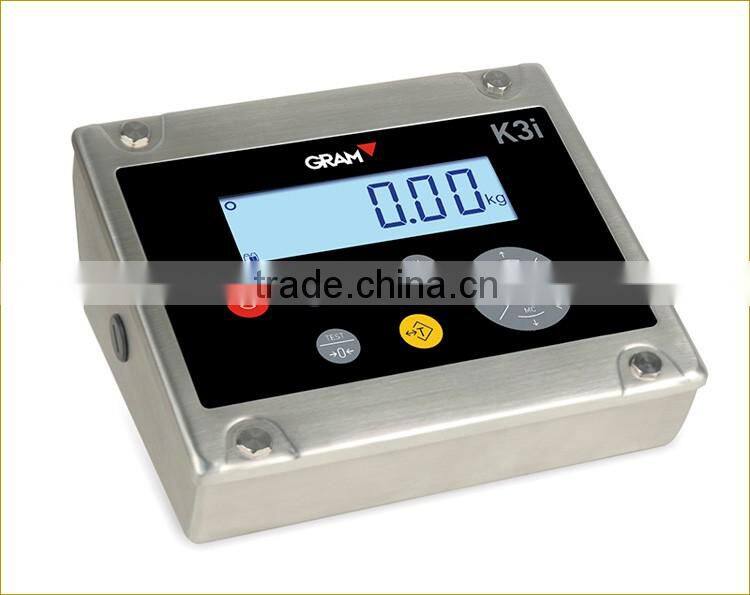

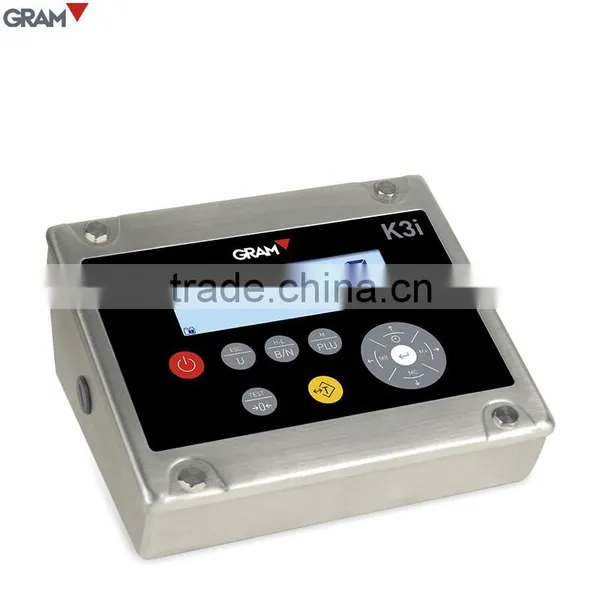

Electronic Weighing Indicator K3i, large blacklight LCD display
GRAM K3 Series is a line of high performance indicators for all types of applications.
• LCD display with automatic bright backlighting.
• 4 levels of auto hold function to weigh big-size objects.
• High/ok/low weight checking function, with visual and sound indicator.
• Classifying by weight.
• Memory of 20 digital tares.
• Last weighing memorization.
• Memory of 100 items for the parts counting function.
• PC or printer connection or remote display (optional).
• Programmable auto-off.
• Automatic tare.
Clear and easy-to-read display
K3 series are equipped with a bright backlighting LCD screen. As well, they have an auto-off
function of the backlighting which maximizes battery life.
Classification viewer
Its indication bar is very useful in classifying products. Sound indicator operates together
with visual indicator.
Many placement positions
The K3 model with the appropriate support it can be adapted for use in column or wall.
The K3i modelIt can be placed on the desktop or, simply by easy 180-degree turning of its upper
part, it adapts to the wall placement.
Tickets printing
Weighing data (net weight, gross weight, tare, parts,etc.), in 5 printer formats in Spanish, English,
French and German.
Technical Features

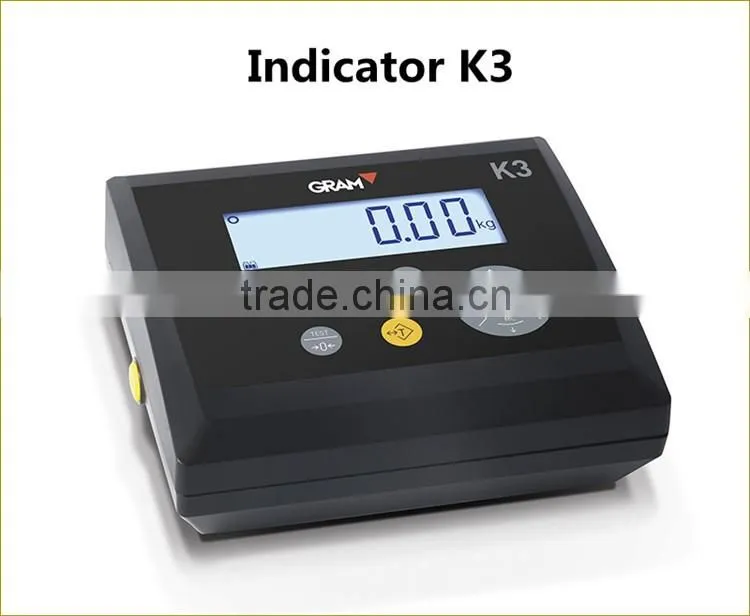

MODEL | K3 Indicator | K3i Indicator |
Description | Weight indicator | |
Divisions | 100.000 div. no OIML | |
Weight units | g (kg), lb, oz/lb | |
Waterprof protection | IP-65 | IP-67 |
External size (mm) | 220 x 180 x 83 | 220 x 180 x 83 |
Total net weight (kg) | 1.5 | 2.5 |
Power | 230 V / 50 Hz (Euro) 11 V AC or customized | |
Battery | Operation time 30/60 hours | |
Operation temperature | +5°C /+35°C | |
AVAILABLE OPTIONS | ||
Relay output | ||
External tare output | ||
Double data output, printer and RS 232-C | ||
PR3 and PR3-W printers | ||
RD3 and RD3-W remote displays | ||
Software for PC Virtual Key | ||
Tare pedal | ||

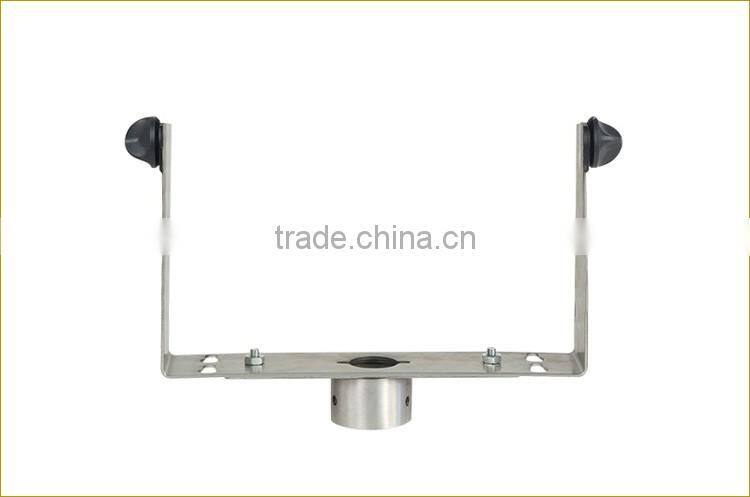

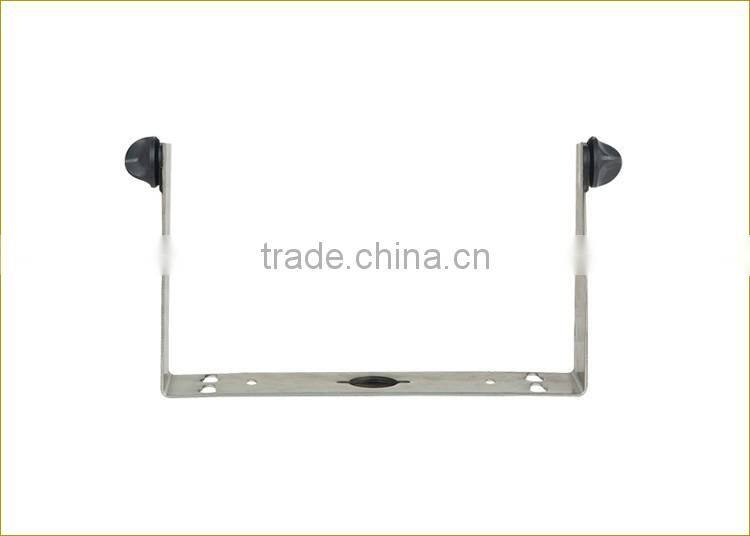

Wall / column support swaying | ||
Eletronic Weighing Indicator Photo
Related Products
Company Information

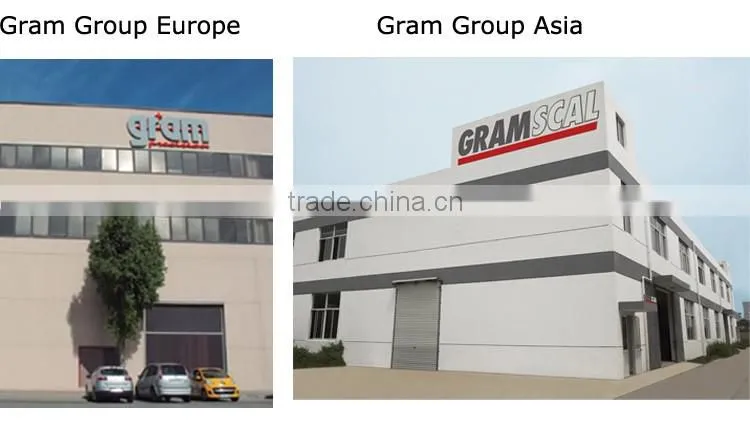

Gramscal (Suzhou) Co., Ltd is one factory of Gram Group in Suzhou. Gram Group is European Manufactuer with headquarters in Barcelona (Gram Group Europe), and factory in Suzhou (Gram Group Asia).Gram Group is among the leaders in the field of industrial weighing in Spain and occupies an increasingly important place in the European market. A pioneer on the industrial and precision scale market, Gram Precision SL has become one of the most dynamic companies since its introduction on the international market.
