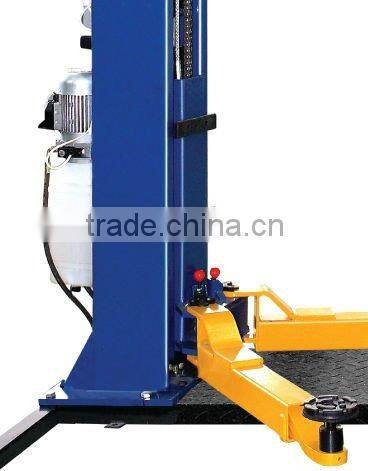

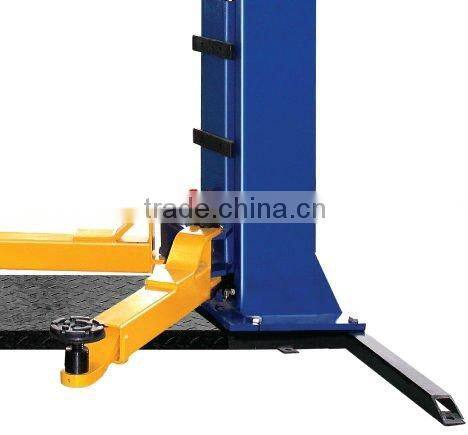

Torin BigRed 3-Ton Floor Plate With Support Base Two Post Lifts

Name: Torin BigRed 3-Ton Floor Plate With Support Base Two Post Lifts
Brand: TORIN
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Product Details

Design:	Two Post	Type:	Double Cylinder Hydraulic Lift	Certification:	CE
Lifting Capacity:	3000 kg	Lifting Height(mm):	1850 mm	Overall Width(mm):	3477 mm
Place of Origin:	Jiangsu, China	Brand Name:	TORIN	Model Number:	QJY230B-E

Torin BigRed 3-Ton Floor Plate With Support Base Two Post Lifts
Electric Safety Locking System
CE, ANSI/ASME Approval

Model	QJY230B-E
Capacity	3000 kg
Stroke	1850 mm
Overall Height	2866 mm
Overall Width	3477 mm
Drive Through Clearance	2460 mm
Support Bracket Length min	770 mm
Support Bracket Length max	1105 mm
Plate Height min	130 mm
Plate Height max	170 mm
Column Spacing, Interior Dimension	2750 mm
Moter Performance	2.2 kw
Electrical Connection	380/220 v
Lifting Time	50 sec.
G.W.	700 kg
Package Size	1# 2855720470
	2# 320055545 mm
	3# 760230330 mm
	4# 590240250 mm

Changshu Tongrun Auto Accessory Co., Ltd.: Contact nameJulie Yue; Phone86-512-52352257; AddressNew Longteng Industrial Park, Economic Development Zone Suzhou,Jiangsu
