Brand New Hydraulic precast pile driving machine TPZB420+

Hydraulic static pile driver  Model:TPZB420+

    Static pressure pile machine using it's own weight and counter weight is the pile method of precast piles buried in the ballast section. This method save steel and concrete, reduce the cost of the project, the strength grade of concrete can be reduced 1 ~ 2 grade, Compared with the hammer method can save about 40 percent of the reinforcement and construction of no noise, no vibration, no pollution.

    Unique Up and Down Short Ship Structure: Toppile designs a kind of up and down short ship structure regarding to some jobsite soft ground which easily result to trap machine, this design optimizes one short ship to two layers, the down short ship can achieve the requirements of machine stability and ground pressure, the up short ship's function is to meet the requirements of machine move and turning when machine working, up and down short ship will joint together, when machine transported, only disassemble the down short ship, no need to dismantle hydraulic units, this design features big advantage to reduce the delivery cost, improve the working efficiency, save the assembling and disassembling cost.

1. Middle piling also applies to the side piling system
2. Side piling force reaches to 50T
3. Side piling distance 400mm
4. More comfortable cabin instead of sun shield.
5. Hydraulic pile system installation inside system provides effective protection for the pipes and   hydraulics units.

Performance:

1. Low Energy Consumption

2. High Efficiency

3. High Reliability

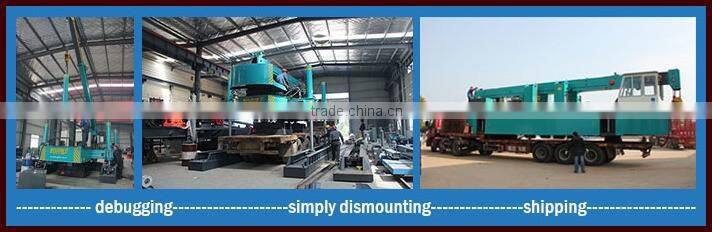

4. Convenience in dismantling,transportation and maintenance

5. Systemization and maximization of our products

6. Flexibility in designing
