Brand New Hydraulic Crawler Rotary Drilling Rig TWLD16

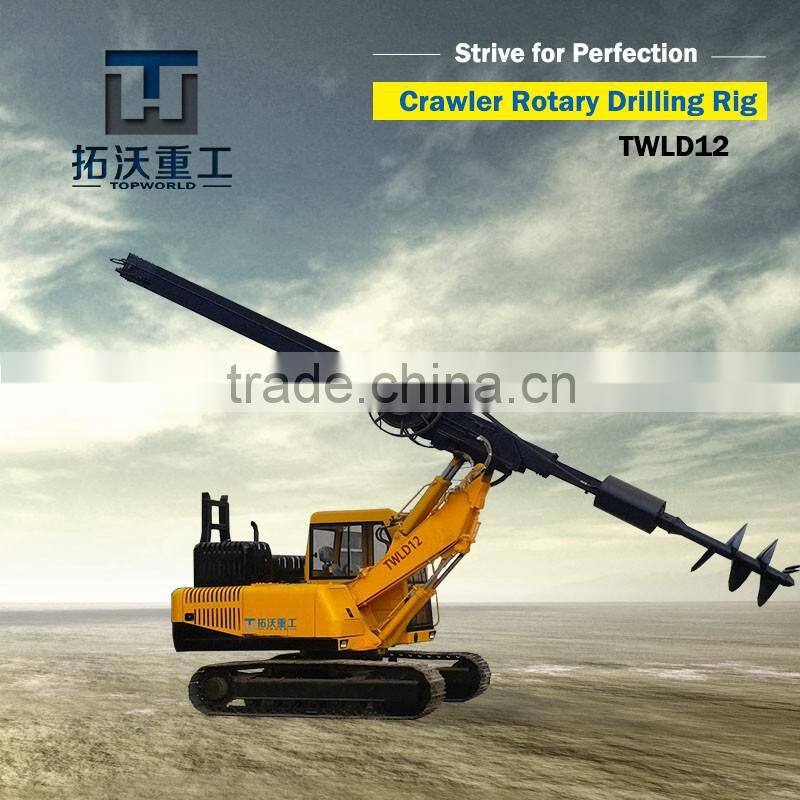

TWLD Crawler Rotary Drilling Rig
Product main parameters:
1. Drilling diameter: 400-1500mm
2. Drilling depth: 5-25m
3. Dimensions: 7.8x2.2x2.95m
4. Machine weight: 12-18T
5. Engine Model: 4108/6015
6. Power head torque: 26kn.m
7. turn into the way: dual cylinder pressure
8. Rotation angle: 360 ° unlimited rotation

Product Usage:
TWLD crawler rotary drilling rig is mainly applied to sand, clay soil, silty soil, fill soil, silt, silt layer, and portion of the formation containing pebbles, gravel, strongly weathered rock; for housing construction, high-speed rail contacts network support, piling, urban construction, civil construction, new rural construction, power grids, landscaping and other projects, in piles, diaphragm wall, a variety of basic construction foundation reinforcement are widely used.

1. The center of gravity of the stability, the mast height is low transport comparing to other manufacturers, more security;
2. Mechanical design rationality of dumplings, collocation of velocity and force more to meet the demand;
3. The safety of the hydraulic system, others do not install balance valve, hydraulic lock may lead to accident cost savings;
4. A large volume of 200L fuel tank; two days to meet the above construction.

5. Sensing technology of humanity:

6. Comfortable operating interface:
7. Tolerance margin matching: reasonable structure clearance, reduce impact, increase the service life of the components of the equipment;
8. Unique telescopic arm motion of free falling body: work, telescopic arm falling speed decided to work efficiency;
9. Technology original three square telescopic arms, anti - twisting and anti - pressure;
10. Unique telescopic arm wear resistant block replacement technology;
11. Unique engine repair window;
12. Alloy steel pin, high frequency quenching treatment, safety, wear-resistant, durable (others are ordinary steel);
