200psi/600psi Threaded Swing Check Valves
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Check
Pressure
Medium Pressure
Power
Hydraulic
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Water
Brand Name
ZQV
Specifications
Full Bore
Size 1/4 to 2
Working Pressure: 200psi/600psi
Female Threaded End: BSPT, NPT, DIN2999

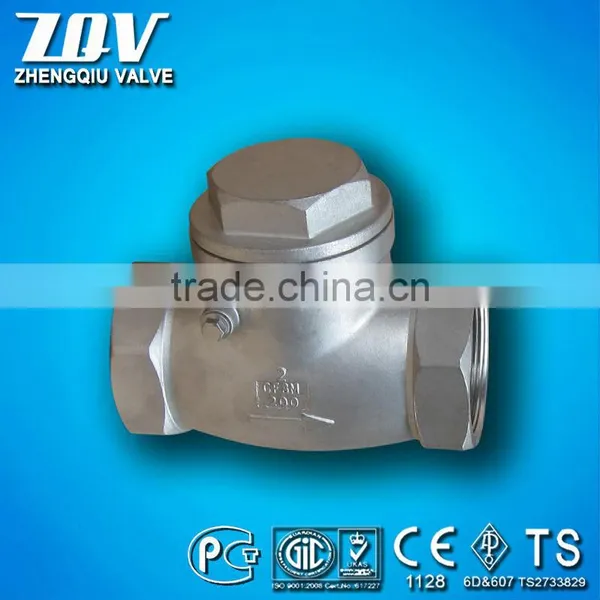

Swing Check Valve 200psi/600psi (ZQ614A)
Features:
Full Bore
Size 1/4" to 2"
Working Pressure: 200psi/600psi
Female Threaded End: BSPT, NPT, DIN2999
Main parts and materials
| NO. | Part name | Material |
| 1 | Body | Stainless steel CF8M/CF8 |
| 2 | Bonnet | Stainless steel CF8M/CF |
| 3 | Hanger pin | Stainless steel 316/304 |
| 4 | Dc | Stainless steel CF8M/CF8 |
| 5 | Plug | Stainless steel 316/304 |
| 6 | Plug gasket | PTFE |
Main connection dimesions and weight unit£ºmm
| SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" |
| A | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
| H | 42 | 51 | 60 | 67 | 75 | 81 | 93 | 104 |
| L | 65 | 80 | 90 | 105 | 120 | 140 | 180 | 200 |
| weight(kg) | 310 | 445 | 680 | 1040 | 1490 | 2020 |
....
