High Resolution 21.5 Inch 1920x1080 TFT LCD Display Module
General Description
This specification applies to the 21.5 inch-wide Color a-Si TFT-LCD Module M215HW03. The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). All input signals are 2-channel LVDS interface and this module doesn’t contain an driver board for backlight.
Display Characteristics
| ITEMS | UNIT | SPECIFICATIONS |
| Screen Diagonal | [mm] | 546.86 (21.53") |
| Active Area | [mm] | 476.64 (H)* 268.11 (V) |
| Pixels H X V | 1920(*3) * 1080 | |
| Pixel Pitch | [um] | 248.25(Per one triad) * 248.25 |
| Pixel Arrangement | R.G.B. Vertical Stripe | |
| Display Mode | TN Mode, Normally White | |
| White Luminance (Center) | [cd/m2] | 250 (Typ.) |
| Contrast Ratio | 1000 (Typ.) | |
| Optical Response Time | [msec] | 5ms (Typ., on/off) |
| Nominal Input Voltage VDD | [Volt] | +5.0 V |
|
Power Consumption (VDD line + LED line) |
[Walt] |
17 (Typ.) (without driver board, all black pattern) |
| Weight | [Grams] | 1750 |
| Physical Size | [mm] | 495.6(W) × 292.2(H) × 10.5(D) Typ. |
| Electrical Interface | Dual channel LVDS | |
| Support Color | 16.7M colors (RGB 6-bit + Hi_FRC ) | |
| Surface Treatment | Anti-Glare, 3H | |
|
Temperature Range Operating Storage (Shipping) |
[ ℃] [ ℃] |
0 to +50 |
| ROHS Compliance |
|
RoHS Compliance |
| TCO Compliance | TCO Compliance |

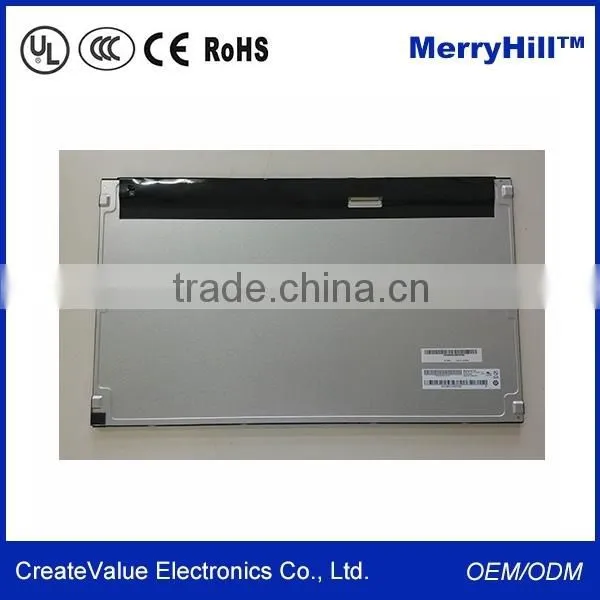

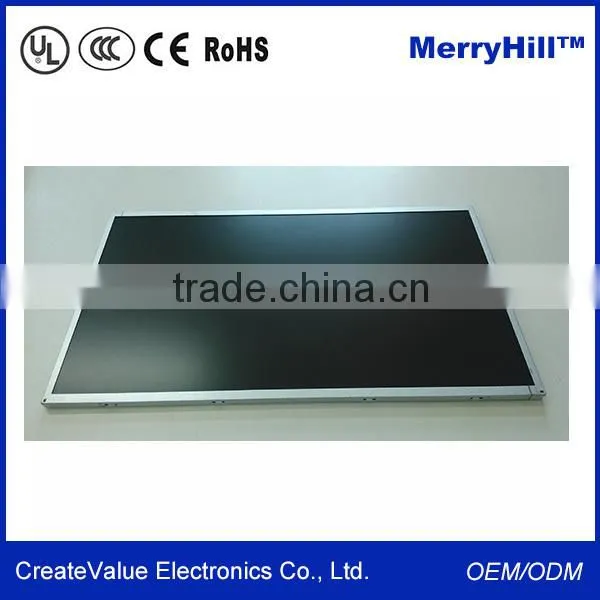

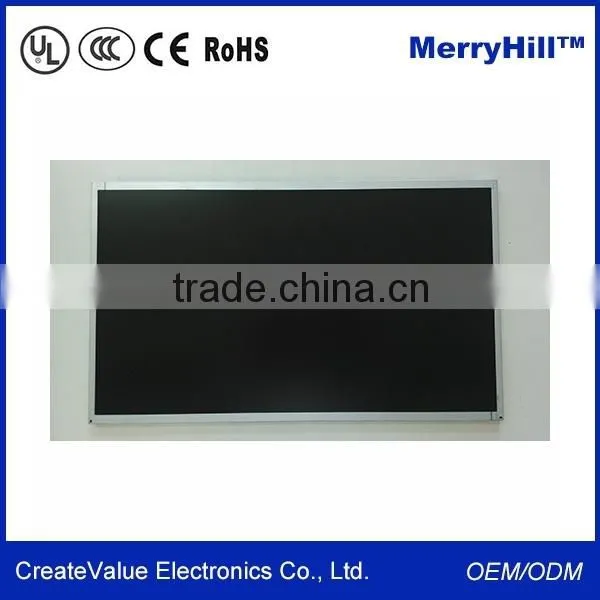

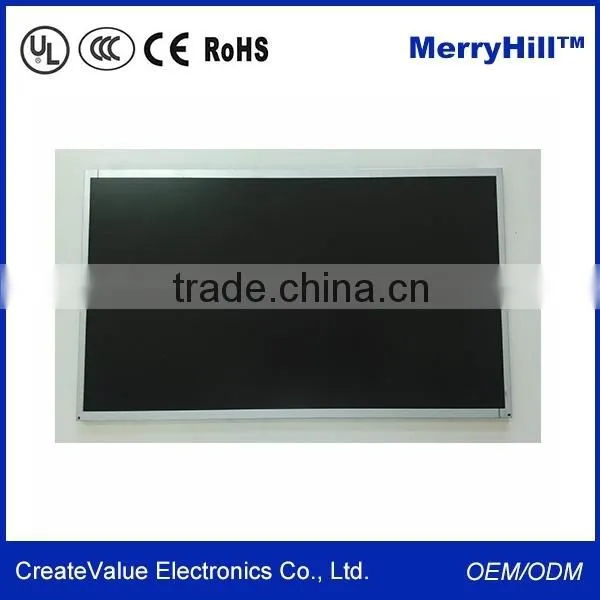

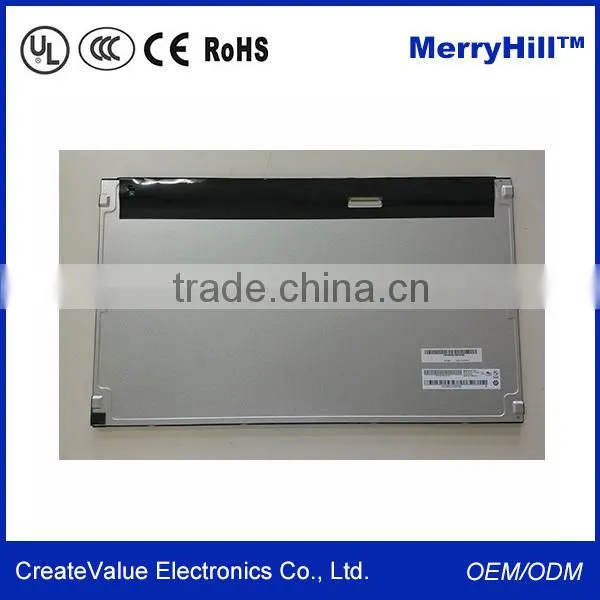

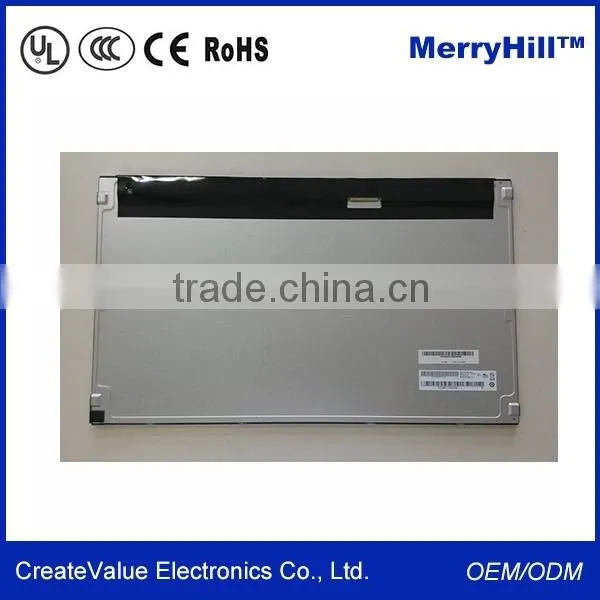

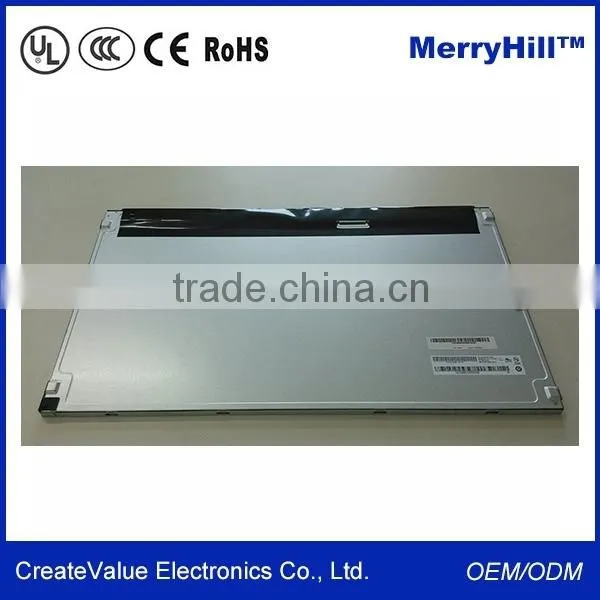

Product Pictures

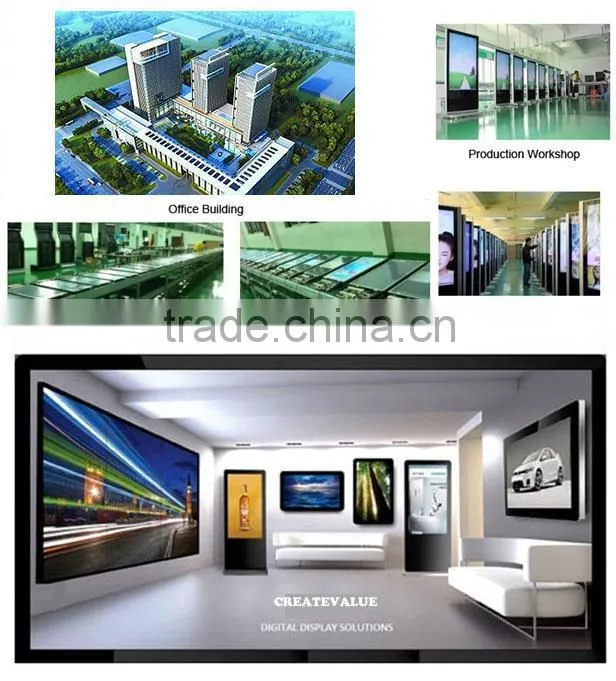

Company Profile
Nanjing CREATEVALUE Electronics Company is a high-tech enterprise specialized in R&D, manufacture and sales service. We do business on LCD-TFT products basis. The main products series include Advertising digital signage, LCD Monitor, Touch monitor, All-in-one/Tablet PC, Kiosk, Touch series and other terminal displays.
We are dedicated to providing customers with high-quality products reasonable prices and best service since founded. We possess rich industry experience, excellent R & D team and production capabilities, which makes us meet customer needs not only mess productions but also customized design.
We are located in Jiangsu - the most developed province in electronics industry in the East China. There are a large gathering of world famous companies including Sharp, HannStar, LG, Panda. After many years of exploiting market, our products are widely recognized and trusted by different customers around the world, such as America, Spain, the UK, France, Australia, Mexico, etc.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Sales Network
Service & Support
- Fast Production:
>> We accept OEM and ODM, 4-7 working days for samples with standard configurations.
- Continuous Innovation:
>> We promise releasing of new version monthly to enhance customer satisfaction.
- Favorable Pre-sell Advice:
>> Answering questions for the customer patiently; 24 hours around the clock.
- On-purchase Service:
>> Tracking sales and solving on-sale problems.
- Terrific After-sales Service:
>> Offering one more spare part for every 100 orders.
>> We guarantee that each product is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
Package Details
Payment Terms
Delivery/Shipment
Any comments, requirements or questions, please do not hesitate to contact us!
