Home > Products > New Products > High quality 2P BDL16-100 RCCB Circuit breaker
High quality 2P BDL16-100 RCCB Circuit breaker
- 100000 Piece / Pieces per Month
- Ningbo port
- T/T Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | BDL16-100 | Model Number: | BODUN |
Type: | Residual Current | Poles Number: | 2 |
Product Description
Specifications
High quality BDL16-100 RCCB Circuit breaker1.Rated current(a):25,40,63,80,100
2.Rated voltage:240/415v AC
1. Feature
Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Contact position indication
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
2. Technical Data
Model:electro-magnetic type,electronic type
Residual current characteristics:A,AC
Pole NO.:2,4
Rated making and breaking capacity:630A
Rated current(A):25,40,63,80,100
Rated voltage:240/415V AC
Rated frequency:50/60Hz
Rated residual operating current In(A):0.03,0.1,0.3,0.5
Rated residual non operating current Ino:0.5In
Rated conditional short-circuit current Inc:6kA
Rated conditional residual short-circuit Current Ic:6kA
Tripping duration:instantaneous tripping ≤0.1s
Residual tripping current range:0.5In~In
Electro-mechanical endurance: 4000 cycles
Connection capacity: Rigid conductor 25mm2
Terminal Connection Height: 21mm
Connection terminal:
Pillar terminal with clamp
Fastening torque:2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting

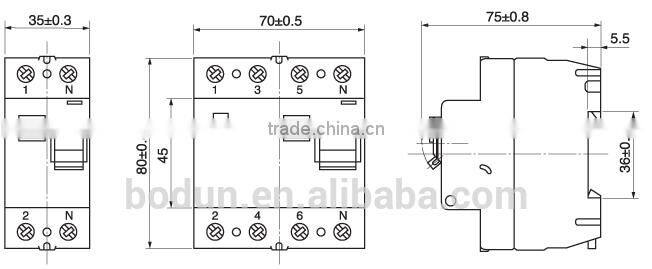

3. Overall & Installation Dimensions
