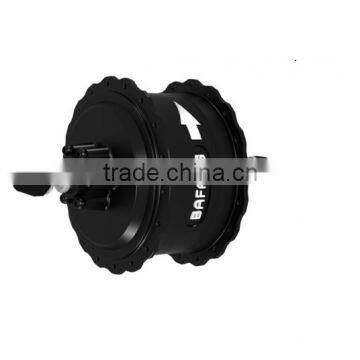

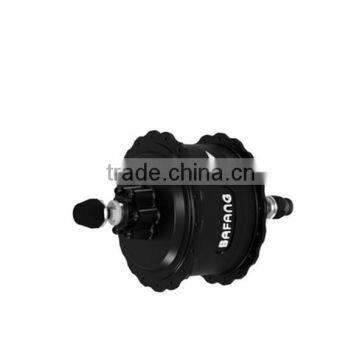

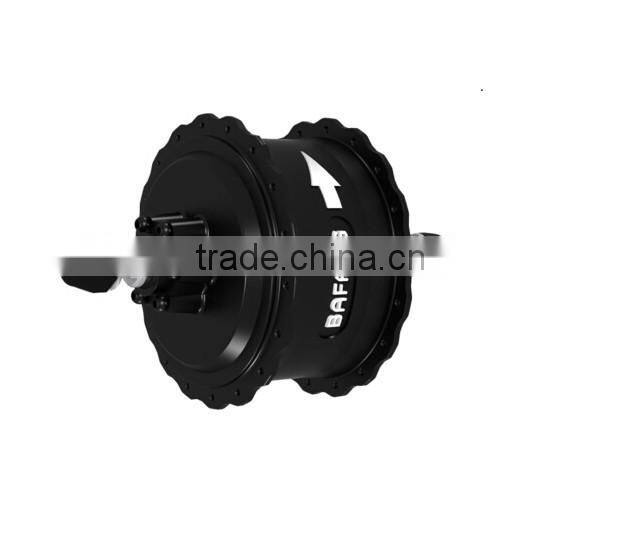

bafang snow bike rear hub motor conversion kit 36V 500W
Core data
---------------------------------------------------------------------------------------
Position : rear motor
Contruction : Gear motor
Normail Voltage 36V/ 48V
Rated power : 250W -750W
RPM : 180-420
Max torque : 80N.M
Efficiency : more than 80%
Mounting parameter
-----------------------------------------------------------------------------------
Brake : Disc brake
Weight : 4.6KGS
Installation width: 170-195mm
Max Housing Diameter : 158mm
Cabling : Shaft Center ,left
Gearshift : Cassette / freehwheel ( 8s/9s )
Spoke specification : 12 G
-------------------------------------------------------------------------------------------------------------------------------------
Further Specification
Cadence ( pulses/cycle) 6/1
Reduction Ration : 1:5
Magent Poles : 20
Noise : less than 55 dB
Hall sensor : Opitional
Connector : waterproof
-----------------------------------------------------------------------------------------------------------------------------------
Test & Certifiation
IP-code : IP 65
Certifications : ROHS /CE
1, This kits can be installed on standard normal bike frame easily, no need to change the frame.
advantage of this kits
2, High starting torque, Max torque≥80N, good performance on climbing.
3, Double clutch is used on drive unit, more safety.
4, High efficiency, low consumption, long travel distance.
