Specifications
Residual current circuit breaker1, Leakage current protector.
2, IEC1008
3, 2,4P
BDL17-100 RCCB (Residual Current Circuit Breaker)
Construction and Feature
Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Bakelite parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
Technical Data
Model:electro-magnetic type,electronic type
Residual current characteristics:A,AC
Pole NO.:2,4
Rated making and breaking capacity:630A
Rated current(A):16,25,40,63
Rated voltage:240/415V AC
Rated frequency:50/60Hz
Rated residual operating current In(A):0.03,0.1,0.3,0.5
Rated residual non operating current Ino:0.5In
Rated conditional short-circuit current Inc:10kA
Rated conditional residual short-circuit Current Ic:10kA
Tripping duration:instantaneous tripping ≤0.1s
Residual tripping current range:0.5In~In
Terminal Connection Height: 21mm
Electro-mechanical endurance: 4000 cycles
Connection capacity: Rigid conductor 25mm2
Connection terminal:
Screw terminal
Pillar terminal with clamp
Fastening torque:2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting

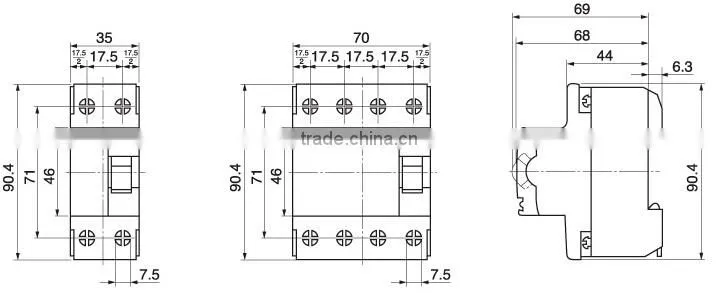

Overall & Installation Dimensions

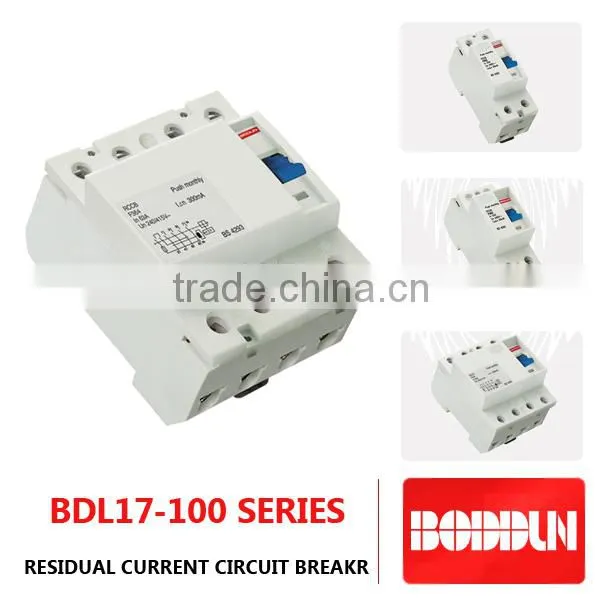

Products' Picture
Wenzhou BODUN electric Co., LTD is one leading manufacturers and exporters of low voltage electrical go ods and materials in China. Our factory is located in Liushi, Wenzhou, which has been given the title of China's electrical appliance capital.' We are very close to both Wenzhou Airport and the Port of Wenzhou,making our fac tory ideally and conveniently located for easy access to international transport connections byl and, air, and sea.
Our Services
Payment Terms
1. 30% T/T advance , 70% the balance against to the copy B/L
2. The other specific issues can negociate.
3. Pls confirm the details with us before do the prepayment.
Why choose our company
1) ISO 9001, SGS, Gold Supplier certificated
2) Monthly Production Capacity -- 1 Million Pcs
3) All goods examined before delivery by 10 QC staff
4) Prompt Reply Within 12 Hours
5) 2000 square meters work enviornment
