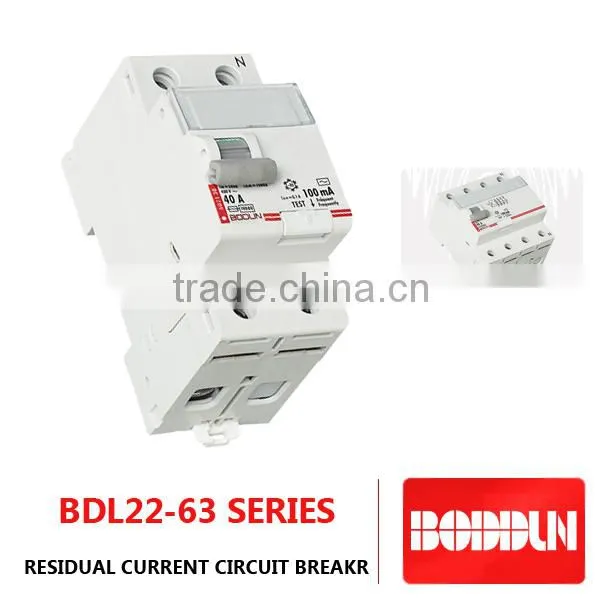

Hot Sale and High Quality Electronic & Magnetic Residual Current Circuit Breaker BDL22-63 2/4P RCCB

Hot Sale and High Quality Electronic & Magnetic Residual Current Circuit Breaker BDL22-63 2/4P RCCB photo-1
Negotiable MOQ: 30 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BODUN
Model Number:
BDL22-63
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo and Wenzhou port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name BODUN
Model Number BDL22-63
Type Residual Current
Poles Number 2

Specifications

BDL29-100 RCCB
1.Rated voltage:240/415V
2.High current rating
3,CE approval.


Company Information





   Wenzhou BODUN electric Co., LTD is one leading manufacturers and exporters of low voltage electrical go ods and materials in China. Our factory is located in Liushi, Wenzhou, which has been given the title of China's electrical appliance capital.' We are very close to both Wenzhou Airport and the Port of Wenzhou,making our fac tory ideally and conveniently located for easy access to international transport connections byl and, air, and sea.

We are OEM. Our major products are series of MCBs (mini circuit breakers), MCCBs (molded circuit breake rs), ELCBs (earth leakage circuit breakers), contactors, and relays; as well as another 100 series of electrical goods with 1,000 different specifications. Due to your high quality products and strong reputation for reliability,our products are being exported to Europe, South America, Asia, the Middle East and Russia.However, we are interested in extending our presence throughout both the Chinese and overseas markets.
hot sale and high quality electronic & magnetic residual current circuit breaker BDL22-63 2/4P RCCB





Construction and Feature

-Provides protection against earth fault/leakage current and function of isolation.
-High current rating up to 125A
-Applicable to terminal and pin/fork type busbar connection
-Fire resistant plastic parts endures abnormal heating and strong impact
-Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
-Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

Technical Data

-Model:electro-magnetic type,electronic type
-Residual current characteristics:A,AC
-Pole NO.:2,4
-Rated making and breaking capacity:630A
-Rated current(A):25,40,63,80,100,125
-Rated voltage:240/415V AC
-Rated frequency:50/60Hz
-Rated residual operating current In(A):0.03,0.1,0.3,0.5
-Rated residual non operating current Ino:0.5In
-Rated conditional short-circuit current Inc:6kA
-Rated conditional residual short-circuit Current Ic:6kA
-Tripping duration:instantaneous tripping ≤0.1s
-Residual tripping current range:0.5In~In
-Terminal Connection Height: 21mm
-Electro-mechanical endurance: 4000 cycles
-Connection capacity: Rigid conductor 35mm2
-Connection terminal:
-Pillar terminal with clamp
-Fastening torque:2.5Nm
-Installation:
-On symmetrical DIN rail 35mm
-Panel mounting

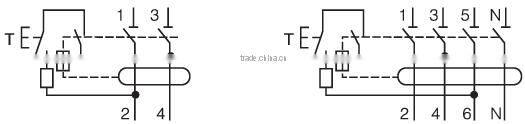

Wiring Diagram

hot sale and high quality electronic & magnetic residual current circuit breaker BDL22-63 2/4P RCCB

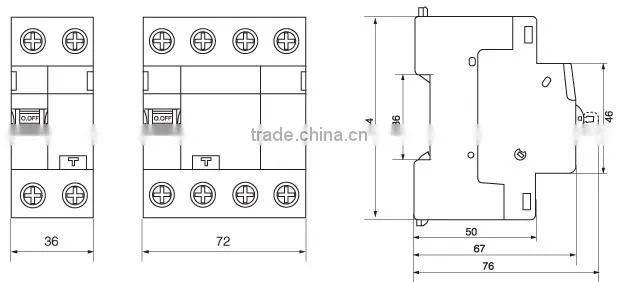

Overall & Installation Dimensions

hot sale and high quality electronic & magnetic residual current circuit breaker BDL22-63 2/4P RCCB

hot sale and high quality electronic & magnetic residual current circuit breaker BDL22-63 2/4P RCCBhot sale and high quality electronic & magnetic residual current circuit breaker BDL22-63 2/4P RCCB
