Home > Electrical & Electronics > Electric Motor > DC Motor > Mid Drive 36V 250W /350W Electric Bike Motor Conversion Kit Max

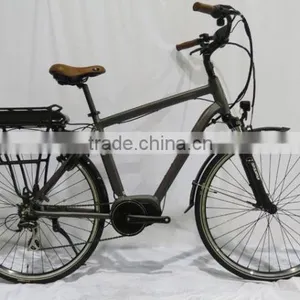

Mid Drive 36V 250W /350W Electric Bike Motor Conversion Kit Max
US$ 450 - 560
MOQ: 1 Set
Key Specifications
Get Latest Price
Voltage:
36V
Design:
Brushless
Wattage:
201 - 300w
Payment & Shipping
Payment Methods:
Port of Shipment:
fob shangha/fob ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
48V 750W HD Fat Electric Bikes Kits With 100mm Botton Braket ( 48V 750W HD )US$ 757 - 870MOQ: 1 Set -
BBSHD 8FUN48v 1000w 30A Controller Crank Mid Drive Motor Kit With 48v 11.6ah Dolphin BatteryUS$ 757 - 870MOQ: 1 Set
-
Bafang BBS03/Bbshd 48V1000W E Bike Kit With C961 DisplayerUS$ 490 - 620MOQ: 1 Set
-
24V or 36V 250W or 400W Bafang CST(Cassette Freewheel)US$ 170 - 320MOQ: 1 Set
-
350 W BW Brand Central Motor Electric Bicycle Conversion Kits for North American MarketUS$ 212 - 320MOQ: 1 Set
Voltage
36V
Design
Brushless
Wattage
201 - 300w
Product Description
The mid-drive motot constantly samples relevant information at a frequency of up to 80k Hz via a torque sensor and two speed sensors which are all highly sensitive. The resulting data on crank torque, vehicle speed and the speed of rotation of the pedals is made available to the controller, ensuring precise control of the vehicle while achieving the highest possible efficiency. The Max Drive System puts the rider in complete control. In spite of a generous power output and a maximum torque of more than 80 N.m, the motor operates in virtual silence. The modular motor design and integrated controller make disassembly easier and improve service responsiveness. This motor can be black, grey or sliver.
SPECIFICATIONS
Core Data
| Position | Mid Motor |
| Construction | Gear Motor |
| Nominal Voltage | 36/43/48 V |
| Rated Power | 250 W |
| RPM | 90-120 |
| Max Torque | 80 N.m |
| Efficiency | ≥ 80 % |
| PAS SENSOR | Torque sensor |
| Shaft Standard | JIS |
Mounting Parameters
| Comm Protocol | UART |
| Weight | 3.8 kg |
| Brake Type | Coaster Brake |
Further Specifications
| Cadence (Pulses/Cycle) | 1 |
| Reduction Ratio | 1:33.4 |
| Magnet Poles | 8 |
| Noise | < 55 dB |
| Hall Sensor | With |
| Connector | Waterproof |
Tests & Certifications
| IP-Code | IP 65 |
| Certifications | CE / EN 14764 / ROHS |
