BDL17N WITH 100 F632 RCCB 4P 100A RESIDUAL CURRENT CIRCUIT BREAKER
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BODUN
Model Number:
BDL17N-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Wenzhou Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BDL18F WITH 63 F630 RCCB 2P 25A RESIDUAL CURRENT CIRCUIT BREAKERNegotiableMOQ: 10 Pieces -
BDL18F WITH 63 F630 2P RCCB 40A RESIDUAL CURRENT CIRCUIT BREAKERNegotiableMOQ: 10 Pieces
-
BDL18F WITH 63 F630 4P RCCB 63A EARTH LEAKAGE CIRCUIT BREAKERNegotiableMOQ: 10 Pieces
-
BDL18F WITH 63 F630 RCCB 4P 63A RESIDUAL CURRENT CIRCUIT BREAKERNegotiableMOQ: 10 Pieces
-
BDL18 WITH 63 F630 RCCB CIRCUIT BREAKERNegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
BODUN
Model Number
BDL17N-100
Type
Earth Leakage
Poles Number
4
Specifications
1,F360 Series.2,IEC1008
3,16,25,40,63A
4,10ka
Product Description

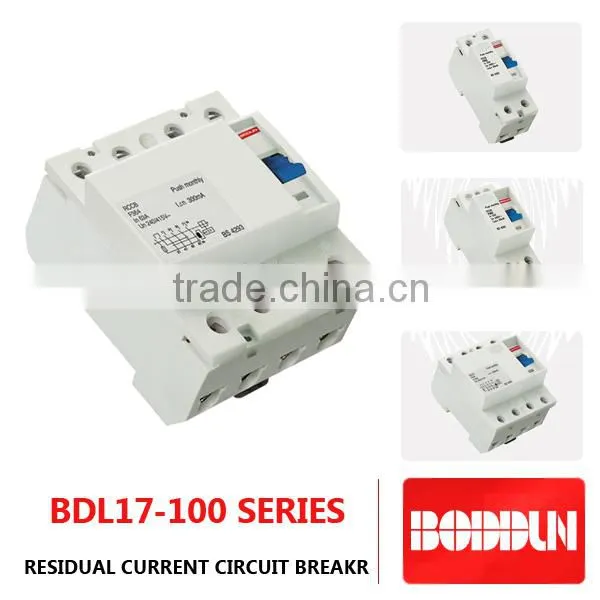

BDL17-100 RCCB (Residual Current Circuit Breaker)
| Construction and Feature |
| Provides protection against earth fault/leakage current and function of isolation. High short-circuit current withstand capacity Applicable to terminal and pin/fork type busbar connection Equipped with finger protected connection terminals Bakelite parts endures abnormal heating and strong impact Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity. Independent of power supply and line voltage, and free from external interference, voltage fluctuation. |
| Technical Data |
| Model:electro-magnetic type,electronic type Residual current characteristics:A,AC Pole NO.:2,4 Rated making and breaking capacity:630A Rated current(A):16,25,40,63 Rated voltage:240/415V AC Rated frequency:50/60Hz Rated residual operating current In(A):0.03,0.1,0.3,0.5 Rated residual non operating current Ino:0.5In Rated conditional short-circuit current Inc:10kA Rated conditional residual short-circuit Current Ic:10kA Tripping duration:instantaneous tripping ≤0.1s Residual tripping current range:0.5In~In Terminal Connection Height: 21mm Electro-mechanical endurance: 4000 cycles Connection capacity: Rigid conductor 25mm2 Connection terminal: Screw terminal Pillar terminal with clamp Fastening torque:2.0Nm Installation: On symmetrical DIN rail 35mm Panel mounting |
Our Services
Goods: We will provide concerned guarantee for our products.
We will replace it or refund for the broken ones except the natural and human factors.
If you have any question, please contact us anytime.
Our service team will provide the best service for you.
Company Information
Wenzhou BODUN Electric Co.,LTD is one leading manufacturers and exporters of low voltage electrical products and materials in P.R.China. Our factory is located in Liushi,Wenzhou, which has been given the title of 'China's Electrical Appliance Capital'. We are very close to both Wenzhou Airport and Port of Wenzhou, making our factory ideally and conveniently located for easy access to international transport connections by land, air, and sea. Http://
