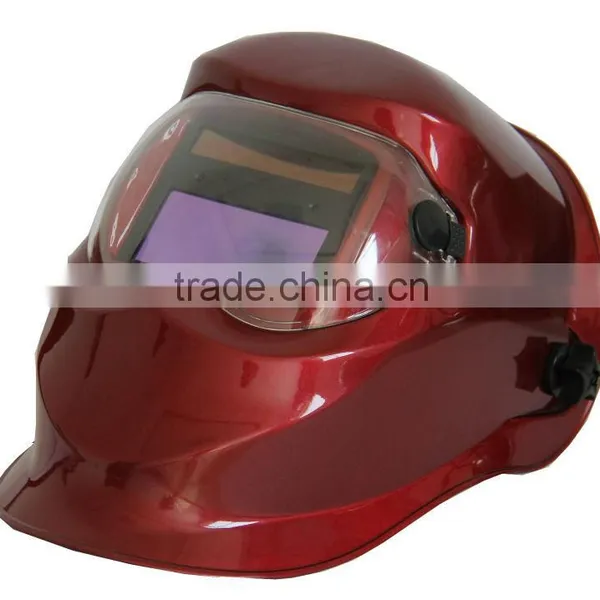

EN379 &EN175 High Quality Painting Automatic Welding Helmet

US$ 6.3 - 16.3 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

LYG

Model Number:

LYG-7413

Jiangsu Meixin Optoelectronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name LYG

Model Number LYG-7413

Auto-Darkening Yes

Switch Time 0.1~0.8s

View Area 92.5mm*42.5mm

Solar Powered Yes

Cartridge Size 110mm*90mm*9mm

Sensitivity Stepless shift

Power Supply lithium battery&Solar powered

Helmet Material PP

Specifications

automatic welding helmet
A Lithium battery
B protect operator's eyes
C Inner control
D EN379 &En 175

Product Description

Liquid crystal of high quality ,optical coating,and protection for sheilding ultraviolet and infrared rays are adopted to protect welding operator from being injured by harmful rays such as ultraviolet rays ,infrared rays .etc.
Liquid crystal light valve adpots the brand new techonology of automatically changing the light controlled by light .multilayer LCD and coated glass effectively stop ultraviolet and infrared rays and let the visible light through easily so as to protect the eyes of the operator, and enable him to observe welding object clealy ,thus reducing repeaed welding,and improve efficiency.
The original design of automatic transform technology used in controlling circuit make it possible for goggles to be able to react to the arc in 1/10000 second and change strong light to dark light . AS a result , it can protect our eyes form being injured by sudden arc.
The original design fo Anti-interference switch avoids not seeing welding object clearly due to complex surroundings nearby.
The Time of goggles' changing dark light to strong light when arc disappears can be set within 0.1 second or 0.8 seconds as required.
Automatic welding -Electric Arc welding goggles with function of setting levels manually can be divided into two levels:one is light shande---DIN4 ,and the other dark state--DIN9~DIN13.

Product Information

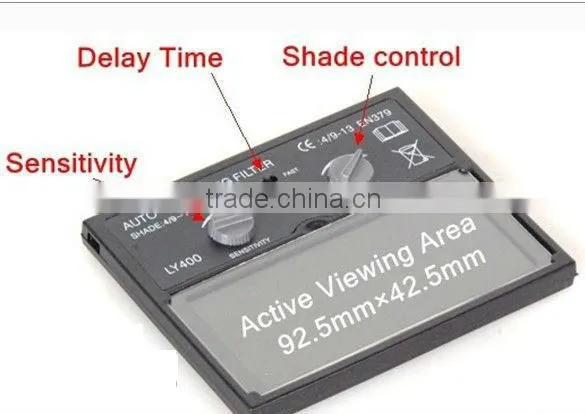

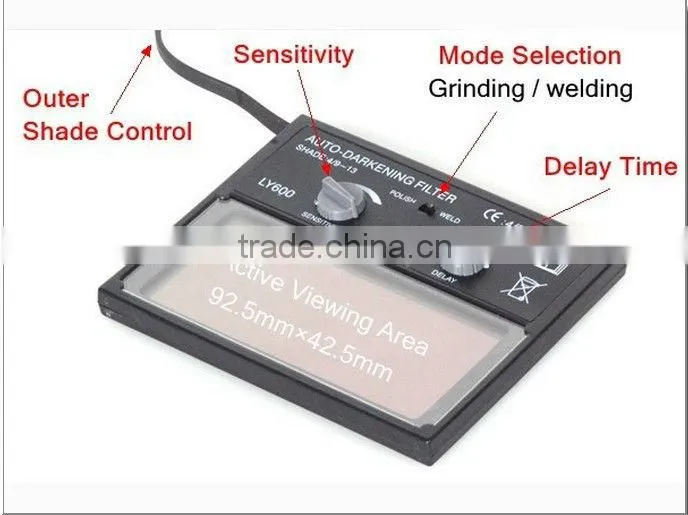

Filter Type	LYG-7413
Filter Size	110909mm
Active Viewing Area	92.5*42.5mm
Light Shade	DIn 4
Dark Shade	DIN 9~13
Way to shift Dark State	Inner control ,stepless shift
Switching TIme	1/10000s
Sensitivity Adjustment	Stepless shift
Delay Time	0.1~0.8s
Power Supply	Solar Powered & Lithium Battery
Rated capacity fo Lithium Battery	600mAh
Operating Temperature	-10°c~65°c
Sensors to weld Arc	2
Mask Material	PA/PP
Protect Grade Against UVB	DIN15
Grind	NO
Test	NO
LOw Battery	NO
