Help CenterBDL26-32 RCBO 1P+N
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BODUN
Model Number:
BDL16-32
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Wenzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
BODUN
Model Number
BDL16-32
Type
Residual Current
Poles Number
Other, 1P+N
Specifications
1,DPN Model RCCB.2,Pole:1P+N
3,6-32A.
4,Conform to IEC standard.

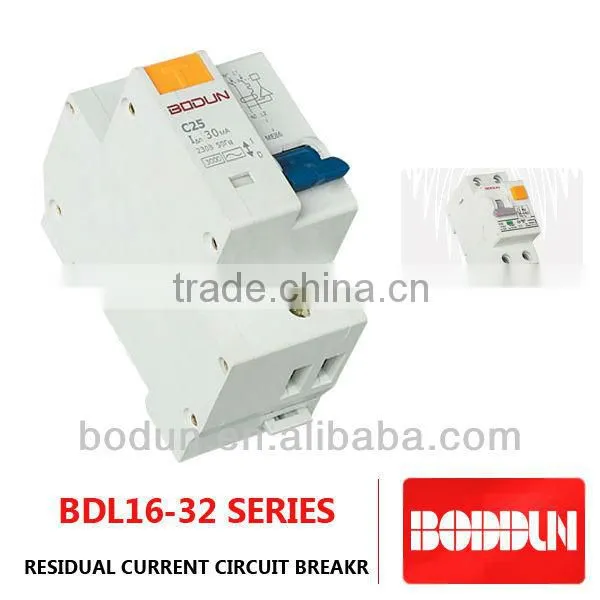

BDL16-32 Residual Current Circuit Breaker With Over-current Protection
| Technical Data |
| Type: Electronic type Residual current characteristics: AC Pole NO.: 1P+N Tripping curve: B,C,D Rated short-circuit capacity: 4.5kA Rated current(A): 6,10,16,20,25,32 Rated voltage: 240V AC Rated frequency: 50/60Hz Rated residual operating current(mA): 0.03,0.1,0.3 Tripping duration:instantaneous ≤0.1s Electro-mechanical endurance: 4000 cycles Connection terminal: pillar terminal with clamp Terminal Connection Heigth:H1=16mm H2=21mm Over-voltage tripping: 280±5% Connection capacity: Flexible conductor 10mm2 Rigid conductor 16mm2 Installation: On symmetrical DIN rail 35mm Panel mounting |
| Wiring Diagram |
| S2 Shunt Tripper U2+O2 Over-voltage and under-voltage tripper |
