BDM2-X 3P 630A MOULDED CASE CIRCUIT BREAKER

BDM2-X 3P 630A MOULDED CASE CIRCUIT BREAKER thumbnail-1
BDM2-X 3P 630A MOULDED CASE CIRCUIT BREAKER photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BODUN
Model Number:
BDM2X
Contact Supplier Request Quote Chat Now
Yueqing BODUN Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Wenzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BODUN
Model Number BDM2X
Type Moulded Case
Poles Number 3

Specifications

1,IEC60947-2 Standard.
2,Up to 1600A.
3,3,4Pole.
4,Reasonable Price and Perfermance.

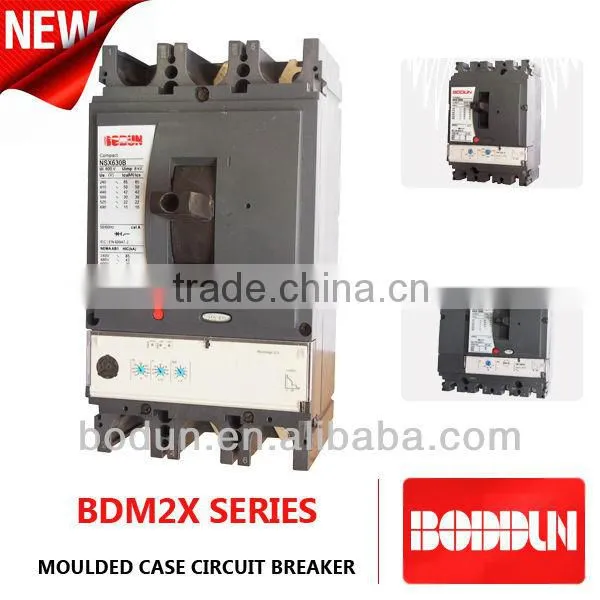

BDM2X Moulded Case Circuit Breaker ( MCCB )



 Application
BDM2X series moulded case circuit breaker is one of breaker which adopts international
advanced design, manufacture technology to develop. The rated insulating voltage is 750V,
suitable for AC 50Hz(60Hz),rated working voltage 690V or below, rated working current is
12.5A to 1250A of circuit and used in distributing electric energy, and non-frequent breaking
in the normal conditions , protecting the current equipment from overloadunder voltage,
circuit breaker with rated frame current 400A or below,can be used in mousecage motor’s
non-frequent start, breaking during working, protecting motor from overload, short circuit
undervoltage,the product conforms to IEC60947-2 standard.

Type

Pole

Rated

Insulating

Voltage(V)

Rated

Operating

Voltage(V)

Rated Ultimate

Short Circuit

Breaking Capacity

Icu(KA) at

380/415V(KA)

Rated Service

Short Circuit

Breaking Capacity

Lcs at

380/415V(KA)

Operation

Performance

Utilization

Category

ON

OFF

BDM2X-100N

3,4

Pole

750

690

And

Below

25

25

1500

8500

A

BDM2X-100H

70

70

1000

BDM2X-100L

170

150

1000

BDM2X-160N

36

36

1000

7000

BDM2X-160H

70

70

1000

BDM2X-160L

150

150

1000

BDM2X-250N

36

36

1000

BDM2X-250H

70

70

1000

BDM2X-250L

150

150

1000

BDM2X-400N

45

45

1000

4000

BDM2X-400H

70

70

1000

BDM2X-400L

150

150

1000

BDM2X-630N

45

45

1000

BDM2X-630H

70

70

1000

BDM2X-630L

150

150

1000

BDM2X-1250N

3Pole

50

37.5

1000

BDM2X-1600N

50

37.5

1000

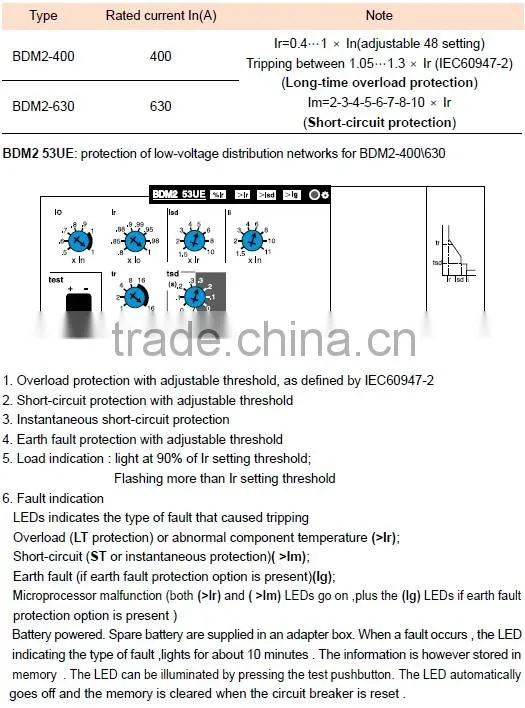

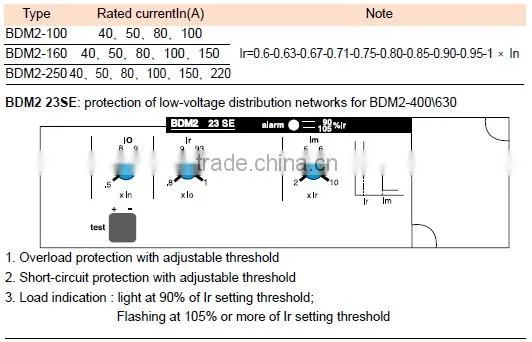

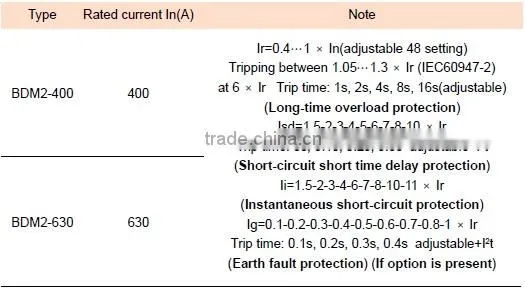

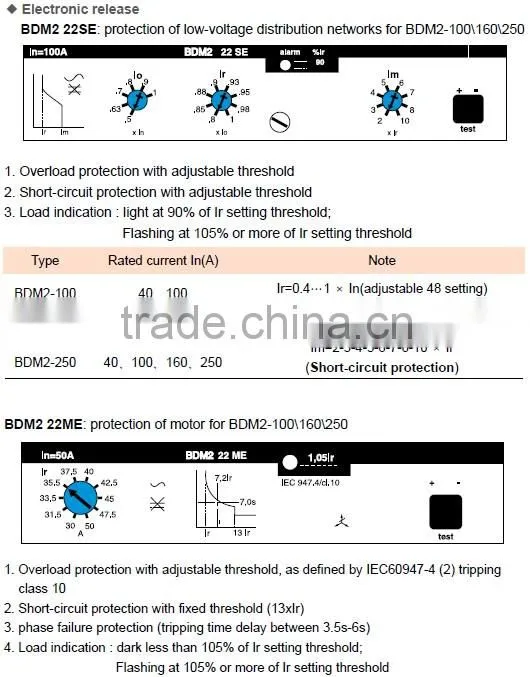

Trip units main technical parameter

Type

Rated Current In(A)

Note

BDM2X-100

12.5,16,20,25,32,40,50,63,80,100



BDM2X-160

16,20,25,32,40,50,63,80,100,125,160

T adjustable (0.8-1ln)

M adjustable (0.8-1ln)

BDM2X-250

160,180,200,225,250

BDM2X-400

315,350,400

BDM2X-630

400,500,630

BDM2X-1250

800,1000,1250

T adjustable (0.8-1ln)

M fixed

BDM2X-1600

1000,1250,1600
