BDM15 NEW DESIGN MOULDED CASE CIRCUIT BREAKER
Negotiable
/ Piece
10 Pieces(Min. Order)
- Ningbo Wenzhou
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BODUN | |
| Model Number | BDM15 | Type | Moulded Case | |
| Poles Number | 3 |
Product Description
Specifications
1,IEC60947-2 Standard.2,Upto 800A.
3,3Pole.
4,IEC standard.

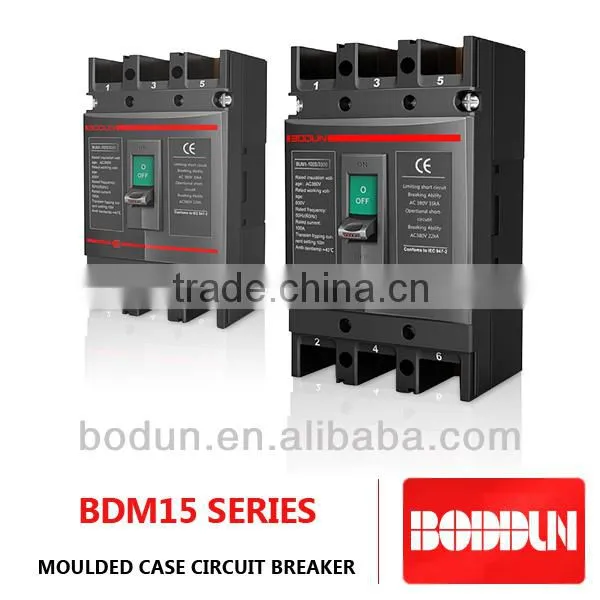

BDM15 SERIES MOULDED CASE CIRCUIT BREAKER
BDM15 series of moulded case circuit breaker is one of our new type products developed and manufactured by adopting internation.
| Application |
| BDM1 series of moulded case circuit breaker is one of our new type products developed and manufactured by adopting international advanced technology. It is suplied with rated insulating voltage 800V and used for circuit of A.C. 50Hz, rated operating voltage AC 400V. (or below), rated operating current up to 800A for infrequent changing over and starting of the motors. Equiped with the protection devices for over-current, short circuit and undervoltage, the products are capable of preventing damage of circuits and supply units. The products conforms to GB14048.2, IEC 60947-2 stardands. |
| Specifications |
Type | Rated current (A) | Poles | Rated insulation voltage (V) | Rated operating voltage (V) | Arcing over distance (mm) | Ultimate short circuit breaking capacity | Servies short circuit breaking capacity | Operating perform ance (times) | |
On Off | |||||||||
BDM15-63L | 6,10,16, 20,25,32, 40,50,63 | Three four pole | 660V | 380V | 0 | 25 | 18 | 1500 | 8500 |
BDM15-63M | 0 | 50 | 35 | ||||||
BDM15-100C | 10,16,20, 25,32,40, 50,63,80, 100 | 0 | 25 | 18 | |||||
BDM15-100L | 0(≤50) | 35 | 22 | 1500 | 7000 | ||||
BDM15-100M | 0(≤50) | 50 | 35 | ||||||
BDM15-100H | 0(≤50) | 85 | 50 | ||||||
BDM15-225C | 100, 125 160, 180 200, | ≤50 | 25 | 18 | 1000 | 7000 | |||
BDM15-225L | ≤50 | 35 | 22 | ||||||
BDM15-225M | ≤50 | 50 | 35 | ||||||
BDM15-225H | ≤50 | 85 | 50 | ||||||
BDM15-400C | 225, 250 315, 350 400 | ≤50 | 35 | 25 | 1000 1000 | 4000 4000 | |||
BDM15-400L | ≤50 | 50 | 35 | ||||||
BDM15-400M | ≤50 | 65 | 42 | ||||||
BDM15-630C | ≤100 | 35 | 25 | ||||||
BDM15-630L | 400 500 630 | ≤100 | 50 | 35 | |||||
BDM15-630M | ≤100 | 65 | 42 | ||||||
BDM15-630H | ≤100 | 100 | 65 | ||||||
BDM15-800M | 630,700 800 | ≤100 | 65 | 42 | |||||
BDM15-800H | ≤100 | 100 | 65 | ||||||
