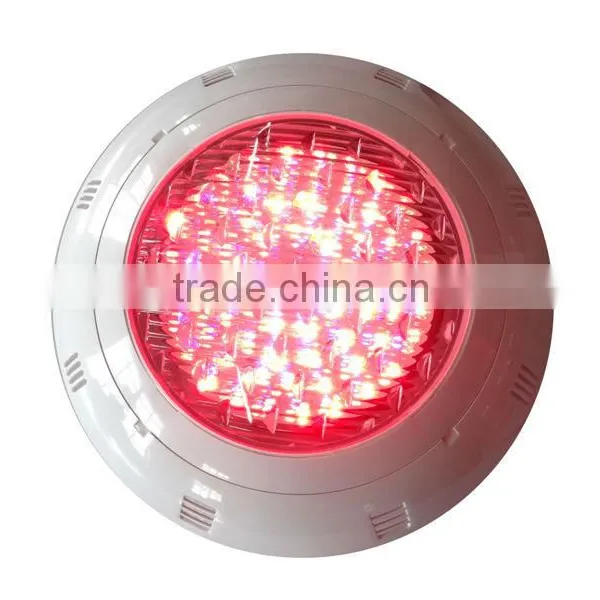

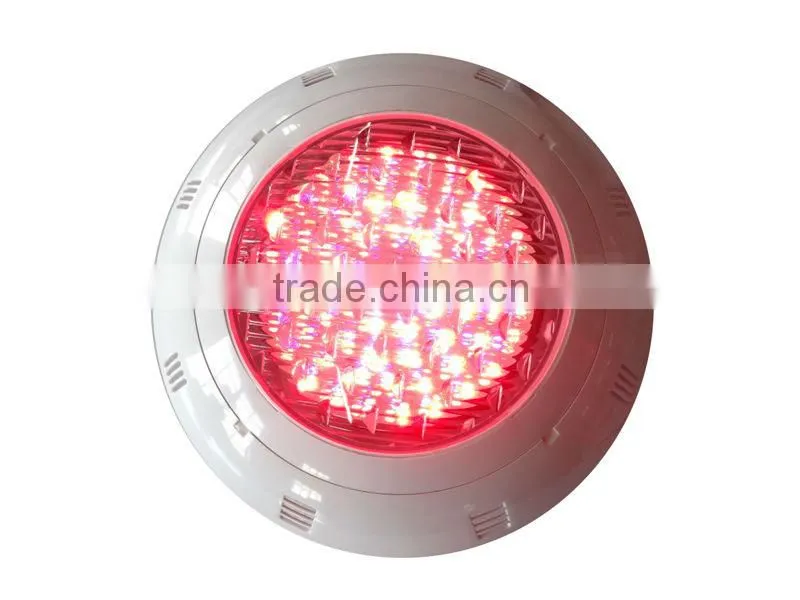

Poolstar P1971 RGB ABS flat lamp 198LEDs

Specifications

1. Super brightness 5mm LEDs
2. ABS materials shell and PC cover
3. wall mounting kit for easy installation
4. IP68

Poolstar P1971 LED underwater lights



a, wall mounted kit for easy installation for vinyl pools

b. 15 working modes( for RGB, for RGB remote)

c. UV protection and chemical resistance



1. Typical features:

 (1) Our lights are filled waterproof ring inside the lamp, whiches make the lights 100% waterproof;



 2. Parameter:



Working Temperature	-40C to +80C
Working Humidity	10% to 90% RH
Electric Parameter
Input Voltage	AC/DC12V
Input Current	1000mA
Dynamic Current	< 800mA
Power	12W to 30W



3. Description:





Item No.	Description	Package	PCS/CTN	G.W./CTN	NW./CTN	Measurement (CM/ CTN)			CBM/CTN	MOQ
				(KG)	(KG)	L	W	H
P1971/RGB	pool light, 198 LED, 12V, 12W, 3000-4000MCD	box	4	8.0	7.0	62	32.5	33	0.0665	100pcs
P1971/white	pool light, 198 LED, 12V, 12W, 5000MCD	box	4	8.0	7.0	62	32.5	33	0.0665	100pcs
P1971/RGB/RM	pool light, 198 LED, 12V, 12W, 3000-4000MCD, with remote control	box	4	8.0	7.0	62	32.5	33	0.0665	100pcs











4. Color Mode (16 programs of RGB LED bulb):



 1. White: sun white



2. Red: one color red



3. Green: one color green



4. Blue: one color blue



5. Green-blue: fixed color green/blue



6. Red-green: fixed color red/green



7. Blue-red: fixed color blue-red



8. Evening sea: slow animation red/blue



9. Evening rivers: slow animation red/green



10. Riviera: slow animation green/blue



11. White: neutral white



12. Rainbow: slow animation blue/red/green



13. River of colors: program 12, followed by program 15



14. Disco: fast animation



15. Four seasons: slow animation in red/blue/green/violet





5. Installation:



 All lamps should be placed on the wall of the pool at approximately 700mm below the water surface, in areas that are  easily accessible from the upper edge of the pool.



It is highly recommended to use the underwater cable gland



• All lamps should be installed on the same transformer and switch.



• The lamp is supplied with cable of 2m, 4m, 6m, 10m, 16m or 20m according to the need of the user, making it possible  to install multiple lamps connected to a single junction box.



Dissemble the bracket from the back of the lamp. Place the bracket over the desired location, mark the holes, drill the  holes, insert the roll plugs, and fasten the bracket on the pool wall using the stainless steel screws provided. Wind the  cable behind the lamp, and then fasten the lamp on the bracket. See drawings on last page for more detail.





Different working modes are available if your quantity could reach up to 1000 pieces!
