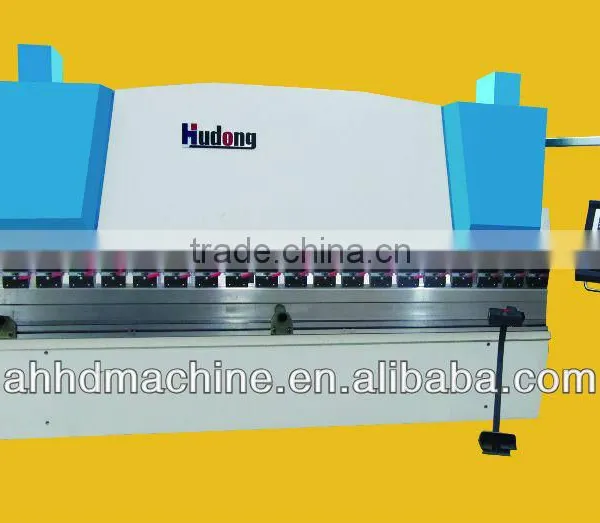

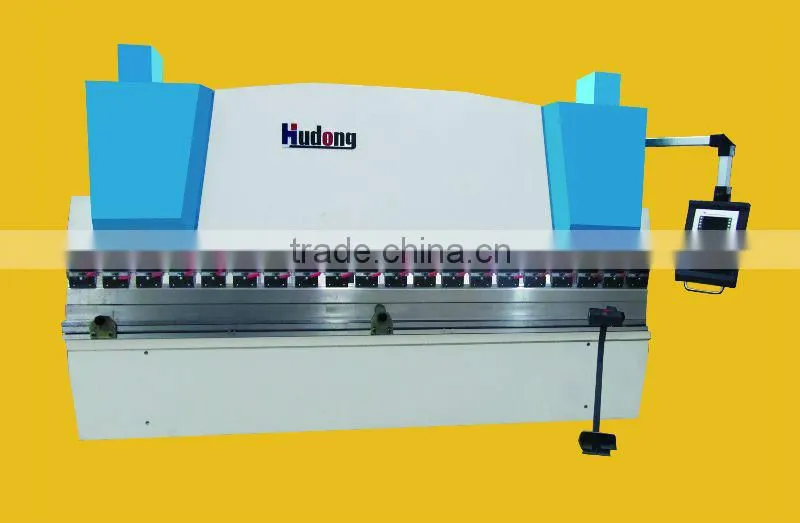

Hydraulic Servo Cnc Steel Plate Press Brake

Hydraulic Servo Cnc Steel Plate Press Brake thumbnail-1
Hydraulic Servo Cnc Steel Plate Press Brake photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Hudong
Contact Supplier Request Quote Chat Now
Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name Hudong
Model Number WF67K-200T/4000-DA52
Machine Type Press Brake
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Automatic
Extra Services End Forming
Certification ISO 9001:2000
After-sales Service Provided Engineers available to service machinery overseas

hydraulic CNC metal sheet press brake





1:S530 CNC system
2:Ball screw & Rextroth valve
4:Schneider and Omron electrics
5:Fast clamper







No.

Name

Brand

Location

1

Motor

Dangpeng

Zhenjiang, China

2

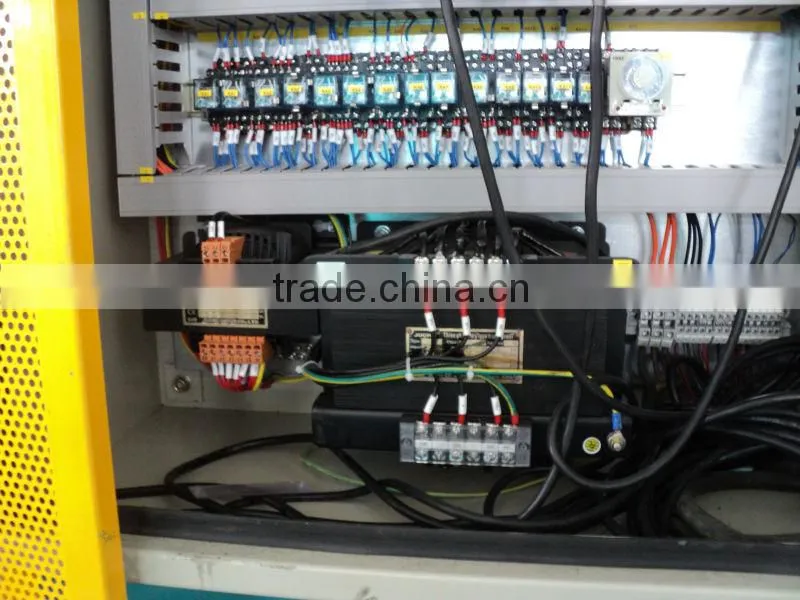

Electrics

Schneider/OMROM

Eruopean brand

3

Oil Cylinder

Wuyang

Maanshan, China

4

Seal ring



NOK

Japan

5

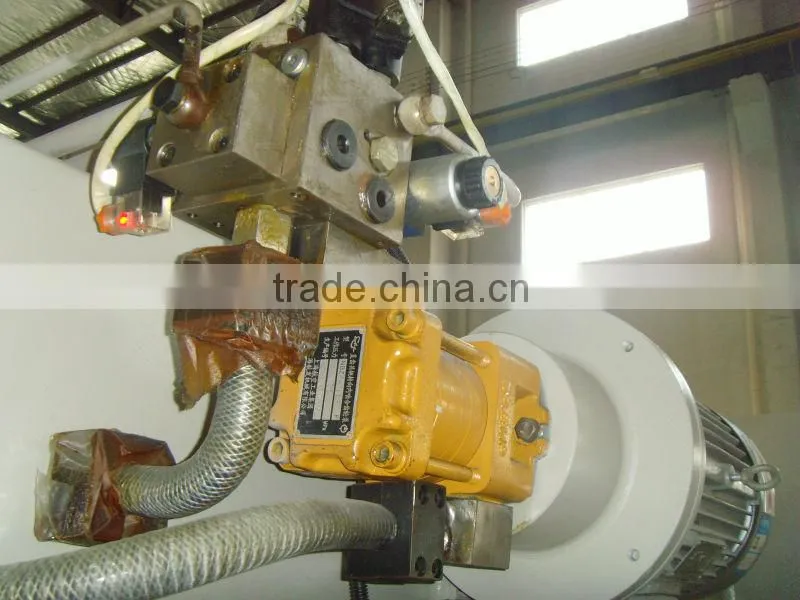

Pump

Hangfa

Shanghai, China

6

Hydraulic system

Rextroth

Rexroth ,Germany

7

Two axes Controller

E200

Estun,China

8

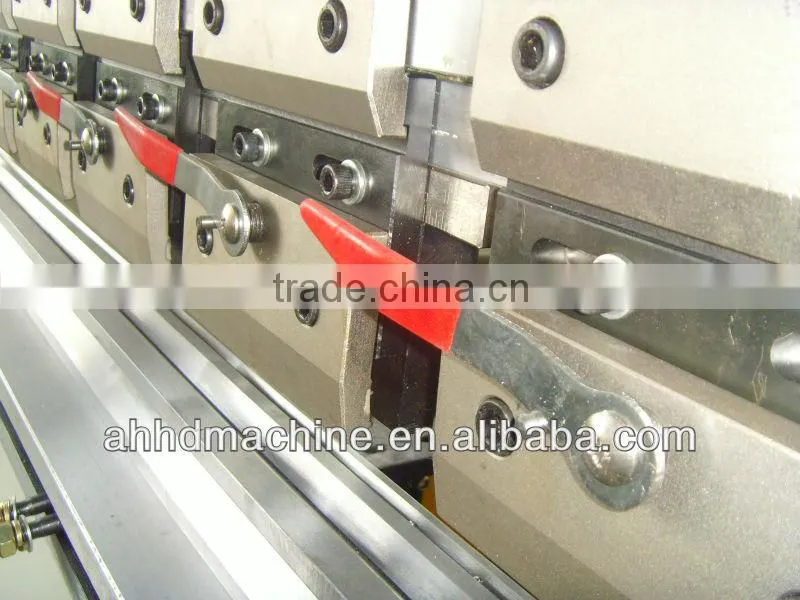

Punch and Die

Xinming / Lianmeng

Maanshan, China

9

Pipe connector

EMB

Germany

10

Foot Switch

Karcon

South Korea

11

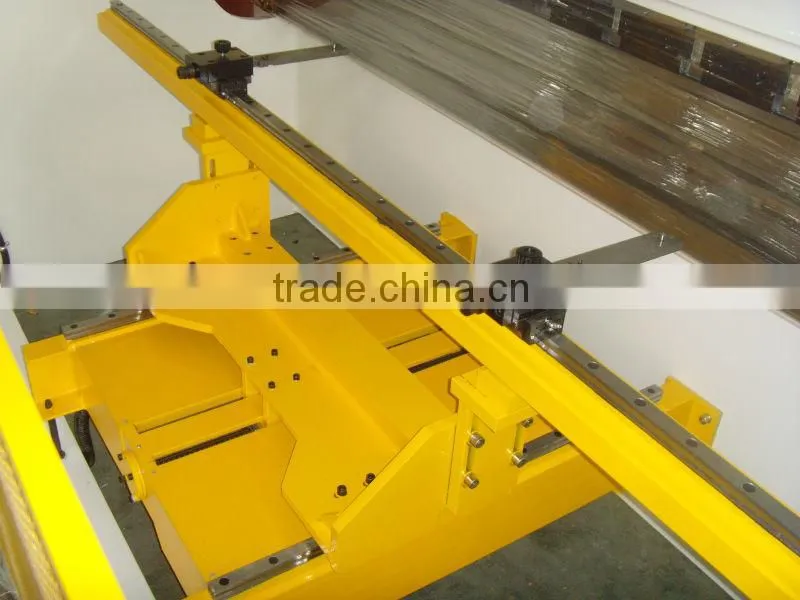

Ball lead screw

HIWIN

Taiwan

12

Straight-line guide

HIWIN

Taiwan



Model: WF100T/3200

No



Name

Amount

Unit

1

Nominal pressure

1 000

KN

2

Poles distance

2 600

mm

3

Throat depth

320

mm

4

Slipper stroke

120

mm

5

Max. opening height

380

mm

6

Slipper stroke adjustment

100

mm

7

Diameter of cylinder

180

mm

8

Main motor power

7.5

kw

9

Oil pump power

25

ml/r

10

System pressure

22

Mpa

11

Wallboard thickness

40

mm

12

Slipper thickness

50

mm

13

Machine weight

6 600

Kg

14

Work bench length

3 200

mm

15

Dimension (LxWxH)

3 300x1 750x2 420

mm



Hydraulic servo cnc steel plate press brakeHydraulic servo cnc steel plate press brakeHydraulic servo cnc steel plate press brake

Hydraulic servo cnc steel plate press brakeHydraulic servo cnc steel plate press brakeHydraulic servo cnc steel plate press brake

Hydraulic servo cnc steel plate press brake
