Help CenterW11S-50X2500 Hydraulic Upper Roller Universal Plate Rolling Machine
Related Products
-
Angle Steel Roll Round MachineNegotiableMOQ: 1 Set -
JY-50 Angle Steel Roll Round MachineNegotiableMOQ: 1 Set
-
Hydraulic Upper Roller Universal Plate Rolling MachineNegotiableMOQ: 1 Set
-
TXW12-16*2500 Hydraulic Four-roller Plate Rolling MachineNegotiableMOQ: 1 Set
-
Hydraulic 4-roller Plate Rolling MachineUS$ 9,999 - 99,999MOQ: 1 Set
Specifications
W11S-50X2500 hydraulic upper roller universal plate rolling machine1)good price
2)excellent after sales service
3)CE,ISO

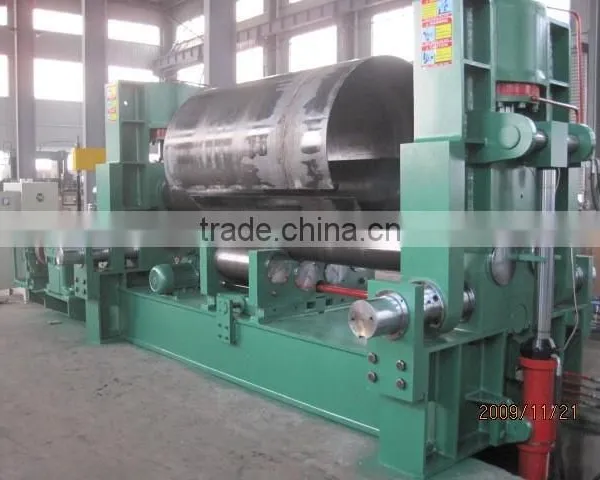

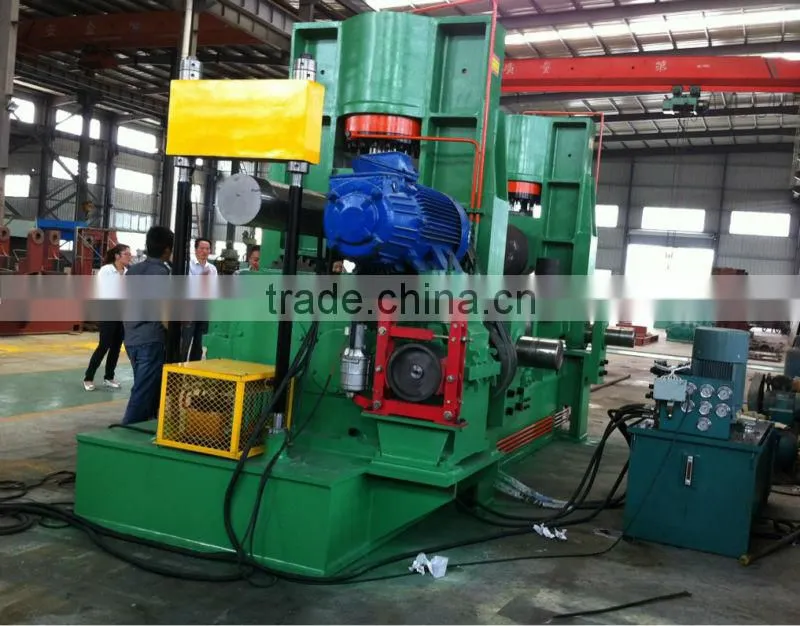

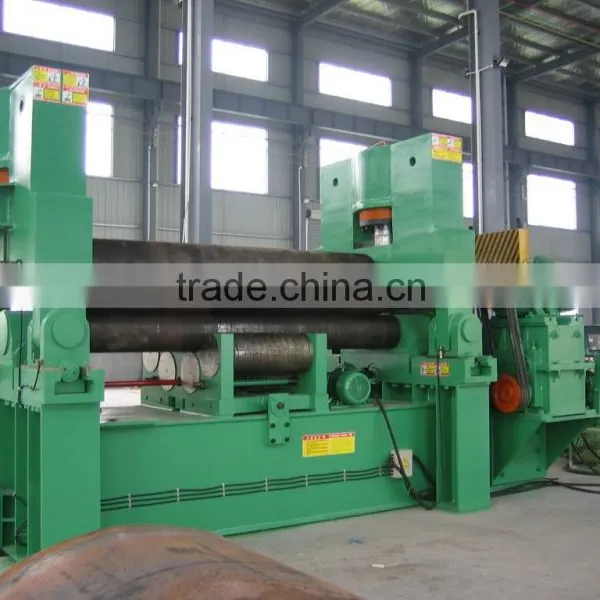

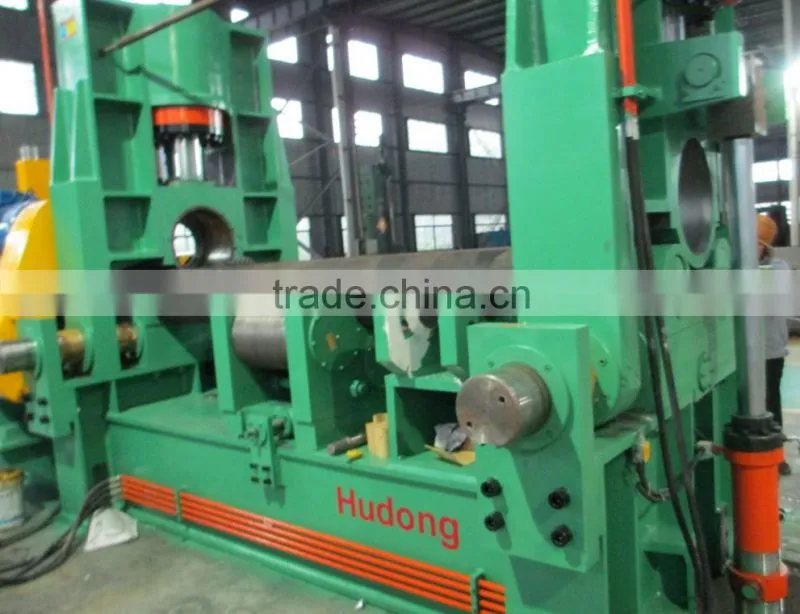

W11S-50X2500 hydraulic upper roller universal plate rolling machine
1)good price
2)excellent after sales service
3)CE,ISO
Movement of upper and bottom roller
1,rolling machine Upper roller can do both level movement (move from left to right)and vertical movement(move from up to down).
2,Bottom roller is fixed. It just does rotation clockwise and counterclockwise.
3,rolling machine pre-bending is achieved by horizontal movement of upper roller and presses the end of plate .High precision pre-bending, freely control the straight side of plate.
4,rolling round, it is achieved by means of the motor and reducer to drive two bottom rollers.
Main Part and Techniques
| Number | Main Machine part | Technical Requirement | |
| 1 | Top Roller Device | Material | 42CrMo |
| Techniques |
forging piece go through rough machining then quenching and tempering treatment at HB260~300 |
||
|
finish turning then medium frequency quenching of surface at HRC48~52 |
|||
| 2 | Bottom Roller Device | Material | 45# |
| Techniques |
forging piece go through rough machining then quenching and tempering treatment at HB260~280 |
||
|
finish turning then medium frequency quenching of surface at HB190~220 |
|||
| 3 | Support Roller Device | Number | 1 group , 4 bar |
| Material and Techniques |
Middle carbon steel , quenching and tempering treatment at HB190~220 |
||
| 4 | Side Frame and Chassis | Material | Q235 steel |
| Techniques |
Fixed and tipping side frame and chassis are welding pieces of steel plate. |
||
|
1,welding 2,anneal and vibration 3,the stress shall be eliminated |
|||
| 5 | Drive Device | Motor | From china famous supplier |
| Reducer | From china famous supplier | ||
| 6 | Hydraulic System | hydraulic valve | From china famous supplier |
| sealing element | From china famous supplier | ||
| Oil Cylinder | From china famous supplier | ||

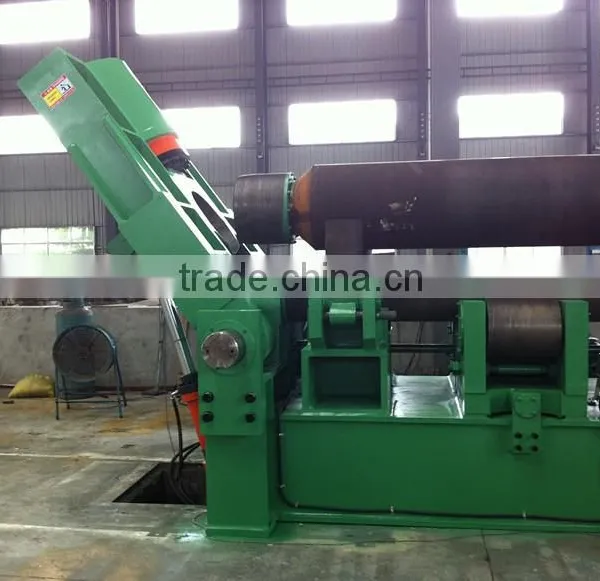

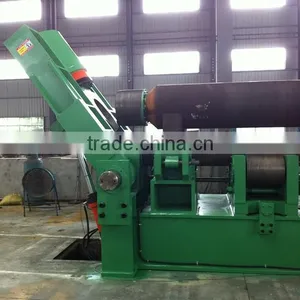

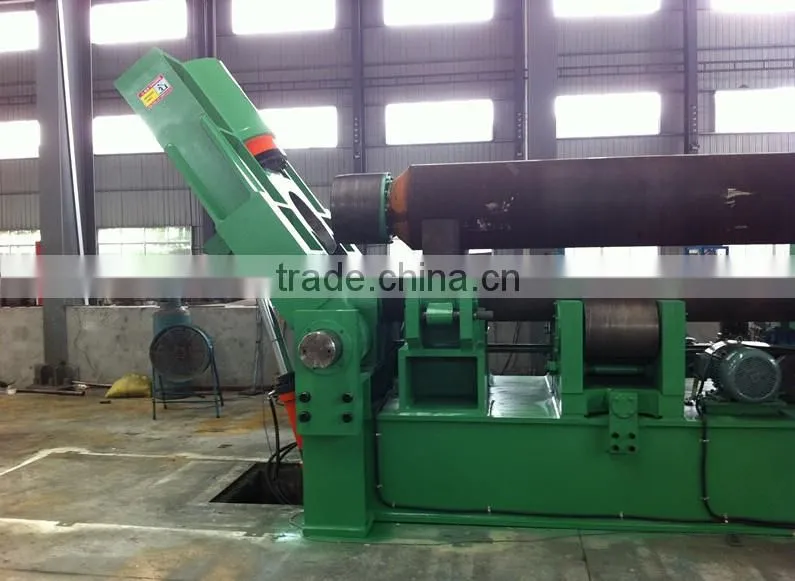

| 7 | Tipping Device | Function | Get bended work piece |
| 8 | Control System | Low Voltage Apparatus | SIEMENS GERMAN |
| PLC | OMRON JAPAN | ||
| Touch Screen | TaiWan | ||
| Control Console | From china famous supplier | ||
| Control program | From china famous supplier | ||

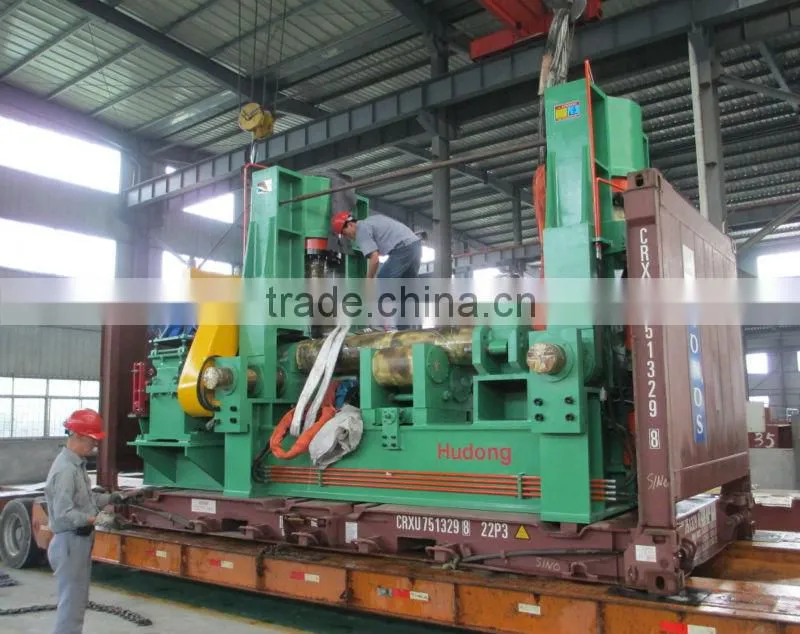

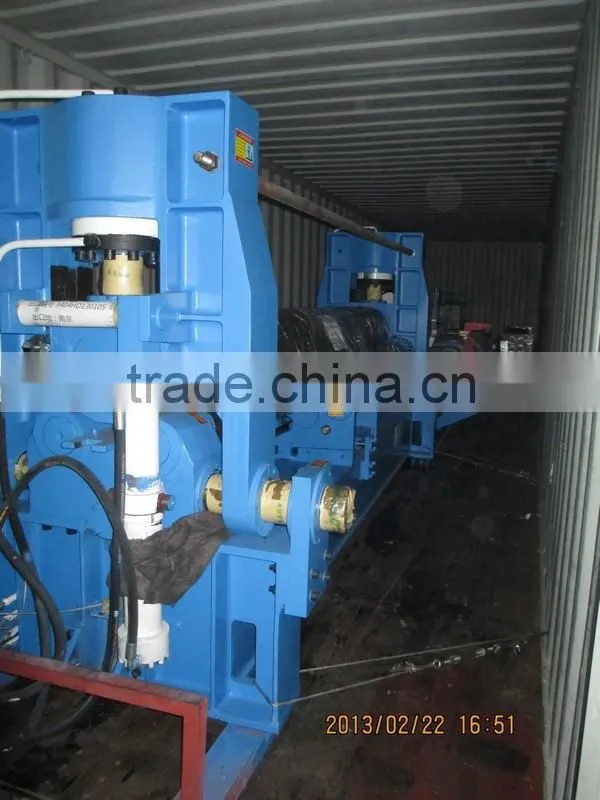

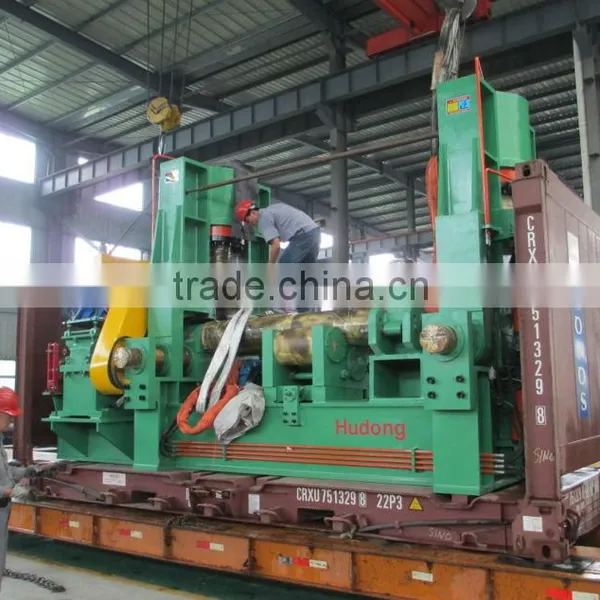

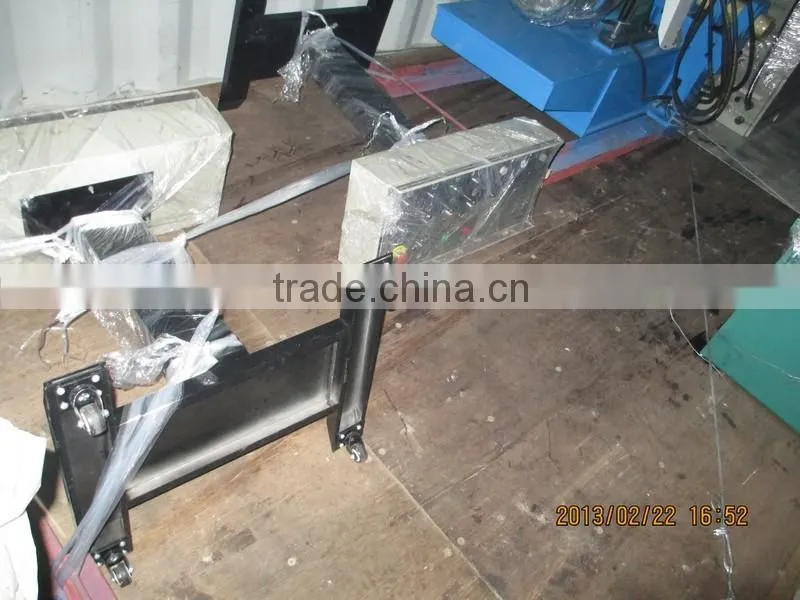

we will use steel wire fix machine into container. Rusty local oiled above machine, Plastic film wrapped. please check the following photo images
Sales-service: we provide technical service during warranty
1). Free installation, trial start and adjustment, training. But the machine quotation doesn’t including the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
2).Warranty period is 2 years. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24hours.
We are professional hydraulic press brake and hydraulic shearing machine manufacture with more than 30
years manufacturing expereience . all of our machines meet CE and ISO Certification .we have sold our machines
to more than 80 countries
1)What's kinds of metal material you want to bend or roller ?
2)what's the max thickness ?
3)what's the max beding widt ?
4)do you need corn bening and pre-bending or no ?
