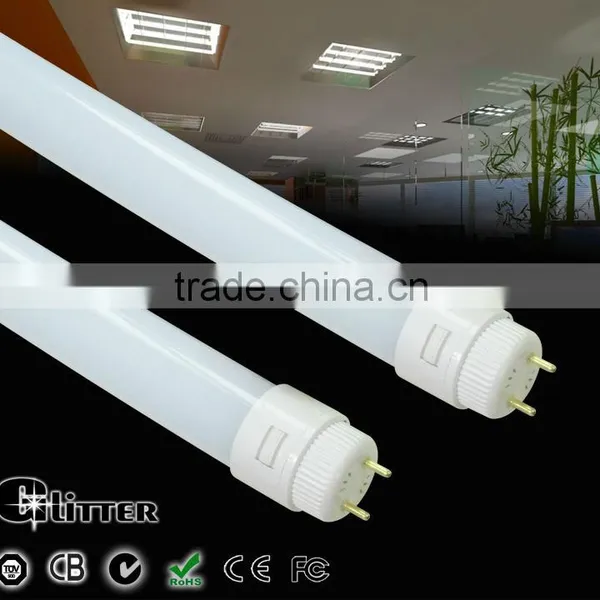

t8 led tube fixture 1200mm 18W, 20W,TUV, CE, CB, SAA, PSE
USD $16 - $23
/ Piece
10 Pieces(Min.Order)
- 0 per Month
- Shenzhen
- T/T Credit Card
You May Like
-
1200mm led tube 18w Rotary lockable end caps(100lm/W,TUV/CB/CE/SAA/C-Tick led tube 18w)
-
1200mm led circular fluorescent tube Rotary lockable end caps(100lm/W,TUV/CB/CE/SAA/C-Tick led circular fluorescent tube)
-
1200mm 24 led tv tube Rotary lockable end caps tube8 new led tube(100lm/W led tube,TUV/CB/CE/SAA/C-Tick 24 led tv tube)
-
4ft led tube light fixture 18W, 20W,SAA,C-Tick,TUV,CE,RoHS,CB, KC
-
led tube 20Watt ,SAA,C-Tick,TUV,CE,RoHS,CB, KC
-
1200mm t8 led tube lamp, 20W, 2000lm ,SAA,C-Tick,TUV,CE,RoHS,CB, KC
Product Details
| LED Light Source | SMD 3014 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC 85-265V | Lamp Power(W) | 20 | |
| Lamp Luminous Flux(lm) | 2000 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Other, 2700-6500K | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP50 | Certification | CCC, CE, C-tick, EMC, FCC, GS, GOST, LVD, PSE, SAA, SASO | |
| Place of Origin | Guangdong, China | Brand Name | Glitter | |
| Model Number | T8 |
Product Description
Specifications
t8 led tube fixture 1200mmInductance balast and Electronic balast compatible
TUV, CE, CB, SAA, PSE, RoHS, C-Tick, KC, GOST
Australia standard t8 led tube 1200mm, 18W,20W 100-110lm/W
Main feature:
- 100-110 lm/ W with SMD 3014
- Single-end Power, isolated design, safe and convenient
- Rotary caps, 0-180° adjustable
- Instant on, no annoying warming up
- 3 years warranty
Technical Specifications
A: Electrical Parameter
Item No. | Length(mm) | Voltage | Power | LED QTY | LED Type | Lumen | Color Temperature |
T8-03-12-01 | L1198xØ26 | AC85V-240V | 20 W | 204pcs | SMD3014 | 2000lm | 2700-3200 K |
B. Photometric Parameter
Item No. | Power Factor | Power supply Efficiency | LED Luminous Efficiency | THD | Operation Temperature |
T8-03-12-01 | >0.95 | >90% | Up to 100lm/W | ≤15% | -20 to 40 ºC |
C. Mechanical Specifications
Item No. | Beam Angle | LED driver Type | Type of End Cap | Pin Type | Material | Optional Cover |
T8-03-12-01 | 120 degree | Isolated | 180 °Rotatary Cap | T8-G13 | Aluminum housing, PC cover | Milky,Clear,Stirp |
One minute Installing:
Inductance balast and Electronic balast compatible
Application
Hotels
Conference/meeting rooms
Factories
Offices
Commercial complexes
Residential/institution buildings
Schools, colleges, and universities
Hospitals
Supermarkets
Subways
Warehouses
Railway Stations
Airports
Packing information
| Length | Single Box Packing | Carton Package | |||||
| QTY/Box | Box Size | Volume Weight | QTY/CTN | Carton Size | G.W. | Volume Weight | |
| 120cm | 1 pcs | 40x1245mm | 0.398kg | 25pcs | 1245*218*220mm | 15.0kgs | 11.94kgs |
Certificate:
