Home > Lights & Lighting > LED Interior Lighting > LED Tube > Factory Price t8 Led Tube 1200mm 18W, 20W, 100lm/W

Factory Price t8 Led Tube 1200mm 18W, 20W, 100lm/W

Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Factory Price t8 Led Tube 1200mm 18W, 20W, 100lm/W thumbnail-1
Factory Price t8 Led Tube 1200mm 18W, 20W, 100lm/W photo-1
US$ 16 - 23 MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD 3014
Warranty(Years):
3
Input Voltage(V):
AC 85-265V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD 3014
Warranty(Years) 3
Input Voltage(V) AC 85-265V
Lamp Power(W) 20
Lamp Luminous Flux(lm) 2000
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2700-6500K
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating Other, IP50
Certification CCC, CE, C-tick, EMC, FCC, GS, GOST, LVD, PSE, SAA, SASO
Place of Origin Guangdong, China
Brand Name Glitter
Model Number T8

Specifications

Factory price t8 led tube 1200mm,18W20W
Inductance balast and Electronic balast compatible
TUV(LVD,EMC),CE,RoHS,CB,SAA,C-Tick



Factory price t8 led tube 1200mm, 18W,20W 100-110lm/W



 Factory price t8 led tube 1200mm 18W, 20W, 100lm/W



Main feature:

  1. 100-110 lm/ W with SMD 3014
  2. Single-end Power, isolated design, safe and convenient

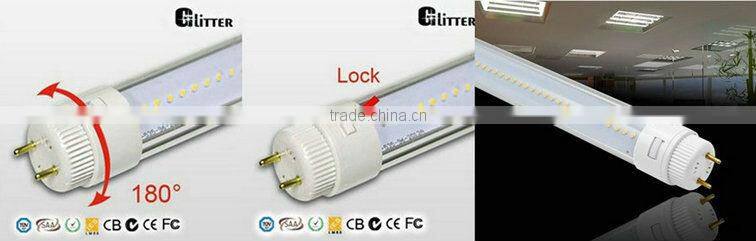

  3. Rotary caps, 0-180° adjustable
  4. Instant on, no annoying warming up
  5. 3 years warranty



Technical Specifications



A: Electrical Parameter

Item No.

Length(mm)

Voltage

Power

LED QTY

LED Type

Lumen

Color Temperature

T8-03-12-01

L1198xØ26

AC85V-240V

   20 W

204pcs

SMD3014

2000lm

2700-3200 K
4000-5000 K
5500-7000 K



B. Photometric Parameter

Item No.

Power Factor

Power supply Efficiency

LED Luminous Efficiency

THD

Operation Temperature

T8-03-12-01

>0.95

>90%

Up to 100lm/W

≤15%

-20 to 40 ºC



C. Mechanical Specifications

Item No.

Beam Angle

LED driver Type

Type of End Cap

Pin Type

Material

Optional Cover

T8-03-12-01

120 degree

  Isolated

180 °Rotatary  Cap

T8-G13

Aluminum housing, PC cover

Milky,Clear,Stirp

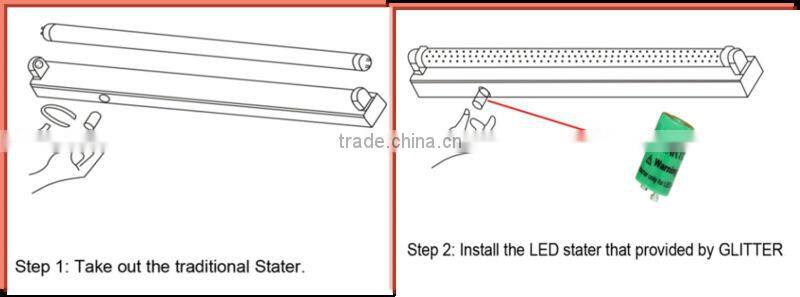

One minute Installing:



Inductance balast and Electronic balast compatible



Factory price t8 led tube 1200mm 18W, 20W, 100lm/W



Application



Hotels

Conference/meeting rooms

Factories

Offices

Commercial complexes

Residential/institution buildings

Schools, colleges, and universities

Hospitals

Supermarkets

Subways

Warehouses

Railway Stations

Airports

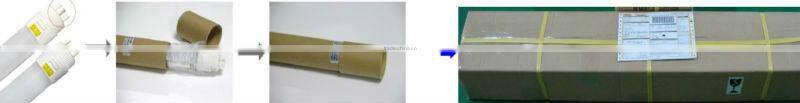

Packing information




LengthSingle Box PackingCarton Package
QTY/BoxBox SizeVolume WeightQTY/CTNCarton SizeG.W.Volume Weight
120cm1 pcs40x1245mm0.398kg25pcs1245*218*220mm15.0kgs11.94kgs



Certificate:

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Business Type
Manufacturer
Year Established
2010
Factory Size
1,000-3,000 square meters
Total Employees
51 - 100 People
