Product Details
| LED Light Source: | SMD 3014 | Warranty(Years): | 5 | Input Voltage(V): | AC 85-265V |
| Lamp Power(W): | 20 | Lamp Luminous Flux(lm): | 2000 | Lamp Luminous Efficiency(lm/w): | 100 |
| Color Temperature(CCT): | Other, 2700-6500K | Working Temperature(℃): | -20, 40 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum | IP Rating: | Other, IP50 | Certification: | C-tick, CCC, CE, EMC, FCC, GOST, GS, LVD, PSE, SAA, SASO |
| Place of Origin: | Guangdong, China | Brand Name: | Glitter | Model Number: | T8 |
Product Description

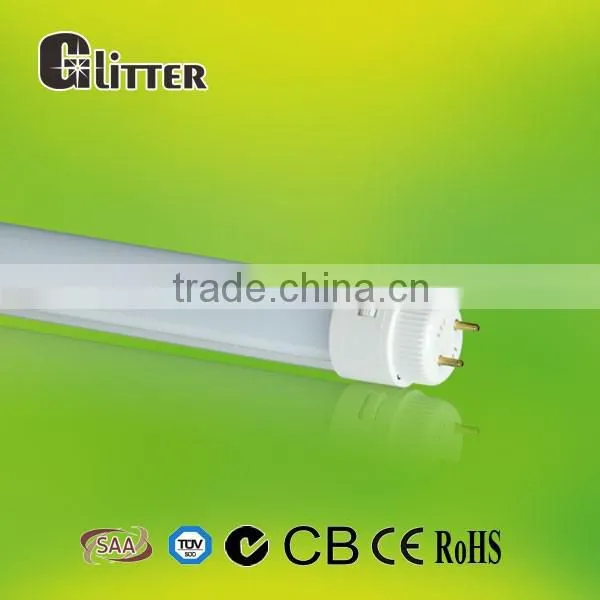

SAA CB TUV 1200mm led T8 tube , 4 fit t8 led tube, 20W, 100lm/W , 5 years warranty
Main feature of tuv 1200mm led t8 tube :
- 100-110 lm/ W with SMD 3014
- Single-end Power, isolated design, safe and convenient

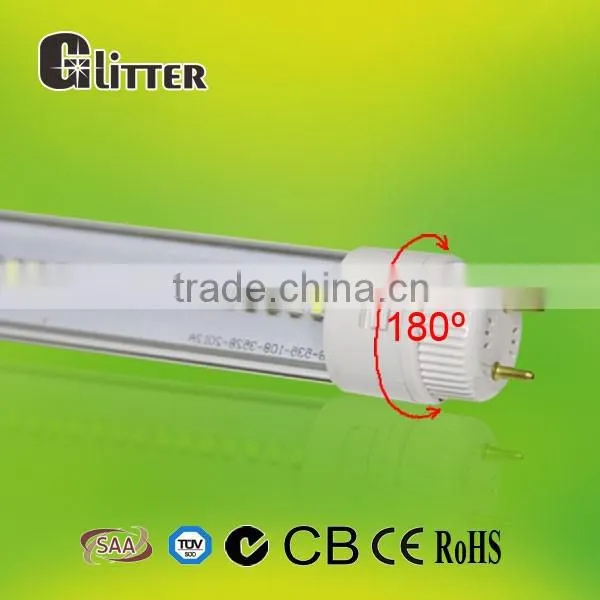

- Rotary caps, 0-180° adjustable
- Instant on, no annoying warming up
- 5 years warranty
Technical Specifications of tuv 1200mm led t8 tube
A: Electrical Parameter
Item No. | Length(mm) | Voltage | Power | LED QTY | LED Type | Lumen | Color Temperature |
T8-03-12-01 | L1198xØ26 | AC85V-240V | 20 W | 204pcs | SMD3014 | 2000lm | 2700-3200 K |
B. Photometric Parameter
Item No. | Power Factor | Power supply Efficiency | LED Luminous Efficiency | THD | Operation Temperature |
T8-03-12-01 | >0.95 | >90% | Up to 100lm/W | ≤15% | -20 to 40 ºC |
C. Mechanical Specifications
Item No. | Beam Angle | LED driver Type | Type of End Cap | Pin Type | Material | Optional Cover |
T8-03-12-01 | 120 degree | Isolated | 180 °Rotatary Cap | T8-G13 | Aluminum housing, PC cover | Milky,Clear,Stirp |
One minute Installing of tuv 1200mm led t8 tube
Application of tuv 1200mm led t8 tube
Hotels
Conference/meeting rooms
Factories
Offices
Commercial complexes
Residential/institution buildings
Schools, colleges, and universities
Hospitals
Supermarkets
Subways
Warehouses
Railway Stations
Airports
Packing information of tuv 1200mm led t8 tube
| Length | Single Box Packing | Carton Package | |||||
| QTY/Box | Box Size | Volume Weight | QTY/CTN | Carton Size | G.W. | Volume Weight | |
| 120cm | 1 pcs | 40x1245mm | 0.398kg | 25pcs | 1245*218*220mm | 15.0kgs | 11.94kgs |
Certificate of tuv 1200mm led t8 tube
