Home > Lights & Lighting > LED Interior Lighting > LED Tube > 1200mm Chinese Sex Led Tube(100lm/W,TUV/CB/CE/SAA/C-Tick Approved t8 Chinese Sex Led Tube)

1200mm Chinese Sex Led Tube(100lm/W,TUV/CB/CE/SAA/C-Tick Approved t8 Chinese Sex Led Tube)

Name: 1200mm Chinese Sex Led Tube(100lm/W,TUV/CB/CE/SAA/C-Tick Approved t8 Chinese Sex Led Tube)
Brand: Glitter
SKU: 129701909
Availability: InStock

1200mm Chinese Sex Led Tube(100lm/W,TUV/CB/CE/SAA/C-Tick Approved t8 Chinese Sex Led Tube) thumbnail-1

1200mm Chinese Sex Led Tube(100lm/W,TUV/CB/CE/SAA/C-Tick Approved t8 Chinese Sex Led Tube) photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

LED Light Source:

Epistar

Warranty(Years):

Input Voltage(V):

220

Contact Supplier Request Quote Chat Now

Shenzhen Glitter Optoelectronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Epistar

Warranty(Years) 3

Input Voltage(V) 220

Lamp Power(W) 20

Lamp Luminous Flux(lm) 2000

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Pure White

Working Temperature(℃) -20, 40

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP44

Certification CE, C-tick, EMC, FCC, GS, LVD, PSE, SAA

Brand Name Glitter

Model Number T8

Specifications

Rotary lockable end caps,factory smd3014 85-265v t8 chinese sex led tube,CB/TUV/SAA/CE approved, up to 100lm/W with Epistar

Specifications

1200mm newest rotating end cap factory smd3014 85-265v t8 chinese sex led tube (100lm/W,TUV/CB/CE/SAA/C-Tick Approved chinese sex led tube )

Main Features for T8 led light tube :

1. All LED tubes are approved by TUV, SAA, C-Tick, CB, PSE. You can easily get local certificate according to the CB certificate.

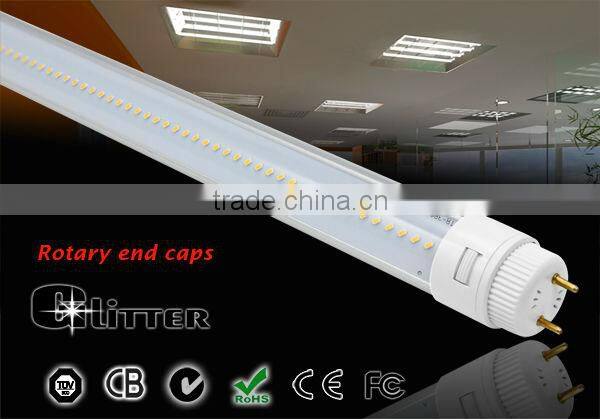

2. Lockable 180° rotating end caps
3. Lighting efficiency up to 100-110lm/W
4. Own designed isolated LED driver (TUV approved) which can ensure better compatibility
5. Single end power wiring-Safe Application
6. Good alternative to replace traditional fluorescent tubes. Just replace fluorescent tube starter with our LED starter,simply easy,no need any rewiring!

3 years warranty

Technical Specifications

A: Electrical Parameter

Item No.	T8-03-18-01
Dimension	L1198xØ26mm
Power	20W
Voltage	AC85V - 265V 50/60HZ
LED Type	SMD3014
LED Quantity	192pcs
Luminous Flux	2000lm
Color Temperature (CCT)	2800 -3500K, 4000 - 4500K, 5500 - 6500K
Beam Angle	120°-180°
Color Rendering Index (CRI)	Ra >70
Power Supply Efficiency	>90%
LED Luminous Efficiency	100 lm/W
Power Factor (PF)	>0.95
IP Rank	IP 44
Certificate	TUV,SAA,C-TICK,CB,PSE

B: Mechanical Specifications

LED Transformer Type	Isolated LED Transformer
End Cap Type	G13
Pin Type	T8-G13
Material	Aluminum and plastic (PMMA)
Optional Cover	Clear & Frosted

C. Environmental

Temperature Range Operating	-20ºC to max 50ºC
Humidity Range Operating	10 % to 80 %
Temperature Range Storage	-40ºC to 65ºC
Humidity Range Storage	10 % to 85 %

Remark:

1. Make sure far away from harmful gas, combustible, explosive goods and corrosive chemicals.

2. Package should keep at least 20cm from the ground and 50cm from wall, heat source, and window or air entrance.

Application

Replacement for conventional fluorescent tubes
Hotels
Conference/meeting rooms
Factories
Offices
Commercial complexes
Residential/institution buildings
Schools, colleges, and universities
Hospitals
Supermarkets
Subways
Warehouses
Railway Stations
Airports

Packing Information:

1. 50 CM T8	25 pcs/Carton, Carton size (LxWxH): 495218220mm, G.W.: 6.70 kgs/Carton, With Fragile Mark outside.
2. 60 CM T8	25 pcs/Carton, Carton size (LxWxH): 645218220mm, G.W.: 9.0 kgs/Carton, With Fragile Mark outside.
3. 90 CM T8	25 pcs/Carton, Carton size (LxWxH): 945218220mm, G.W.: 12.0 kgs/Carton, With Fragile Mark outside.
4. 120 CM T8	25 pcs/Carton, Carton size (LxWxH): 1245218220mm, G.W.:15.0 kgs/Carton, With Fragile Mark outside.
5. 150 CM T8	25 pcs/Carton, Carton size (LxWxH): 1545218220mm, G.W.: 20.0 kgs/Carton, With Fragile Mark outside.
6. 180 CM T8	25 pcs/Carton, Carton size (LxWxH): 1845218220mm, G.W.: 24.0 kgs/Carton, With Fragile Mark outside.
