Home > Lights & Lighting > LED Interior Lighting > LED Tube > TUV SAA C-tick CB PSE T8 Led Lamp 1800mm 28W 2800 lm LED Tube

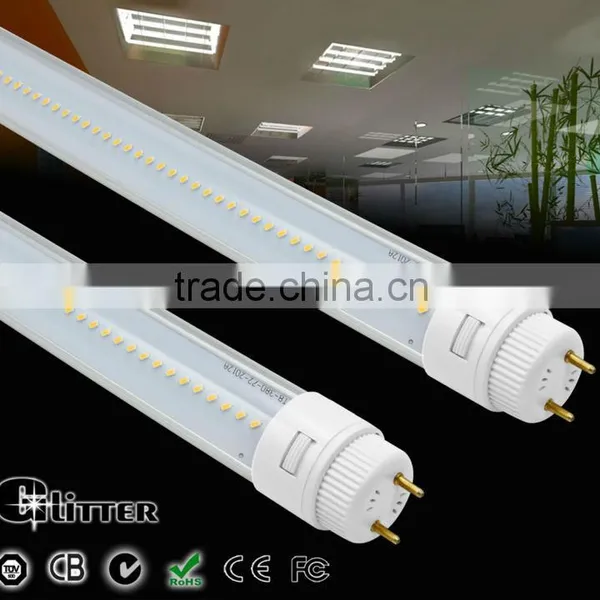

TUV SAA C-tick CB PSE T8 Led Lamp 1800mm 28W 2800 lm LED Tube

Name: TUV SAA C-tick CB PSE T8 Led Lamp 1800mm 28W 2800 lm LED Tube
Brand: glitter
SKU: 129701643
Availability: InStock

Shenzhen Glitter Optoelectronic Technology Co., Ltd.

TUV SAA C-tick CB PSE T8 Led Lamp 1800mm 28W 2800 lm LED Tube thumbnail-1

TUV SAA C-tick CB PSE T8 Led Lamp 1800mm 28W 2800 lm LED Tube photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

LED Light Source:

Epistar 3014

Warranty(Years):

Input Voltage(V):

85-265

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Epistar 3014

Warranty(Years) 5

Input Voltage(V) 85-265

Lamp Power(W) 28

Lamp Luminous Flux(lm) 2800

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, 2700k-7000k

Working Temperature(℃) -20, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP44

Certification CCC, CE, C-tick, EMC, FCC, GS, PSE, SAA

Place of Origin Guangdong, China

Brand Name glitter

Model Number T8

Specifications

Approved by TUV, SAA, C-tick,CB , PSE
Rotary And Lockable Caps,
Isolated Driver,Safe & Reliable.Single-end Power Input Wirin

Products Information

T8 LED Tube T8-03-18-01

Advantages

1. All LED tubes are qualified with TUV, SAA, CB, C-Tick, you can easily get local certificate according to the CB certificate.
2. Lockable 180° rotating end caps
3. Lighting efficiency up to 100-110lm/W
4. Own designed isolated LED driver (TUV approved) which can ensure better compatibility
5. Single end power wiring-Safe Application
6. Good alternative to replace traditional fluorescent tubes. Just replace fluorescent tube starter with our LED starter,simply easy,no need any rewiring!

3 years warranty

Application

Replacement for conventional fluorescent tubes
Hotels
Conference/meeting rooms
Factories
Offices
Commercial complexes
Residential/institution buildings
Schools, colleges, and universities
Hospitals
Supermarkets
Subways
Warehouses
Railway Stations
Airports

Dimension (Unit: mm)

Technical Specifications

A: Electrical Parameter

Item No.	Length	Voltage	Power	LED QTY	LED Type	Lumen (Clear)	Color Temperature
T8-03-18-01	L1798xØ26mm	AC110V-240V 50/60HZ	30W	504pcs	SMD3014	3000lm	2700-3200K 4000-5000K 5500-7000K

B. Photometric Parameter

Item No.	Power Factor	Power supply Efficiency	LED Luminous Efficiency	THD	Operation Temperature
T8-03-18-01	>0.95	>90%	Up to 100lm/w	≤15%	-20°C to 40°C

C. Mechanical Specifications

Item No.	Beam Angle	LED driver Type	Type of End Cap	Pin Type	Material	Optional Cover
T8-03-18-01	120 degree	Isolated LED driver	180 degree lockable Rotatable End Cap	T8-G13	Aluminum housing, PC cover	Clear & Frost

D. Plane Isolux Curve

Installation

Warning:
Please use the product within the specified range of voltage
Please follow the correct installation steps to install the product, and Do NOT touch the tube when it is working.
Please cut the power off when install and remove the products to avoid risk of electric shock k.
Please install the tube in the correct sized fixture.
Do not look directly at LED light source for a long time.

Notice:
Electronic components are exposed to rain or other liquids.
Products release smell gas, abnormal sound and unusual flash.
The shell is broken. Debris goes into the bracket or the tube.

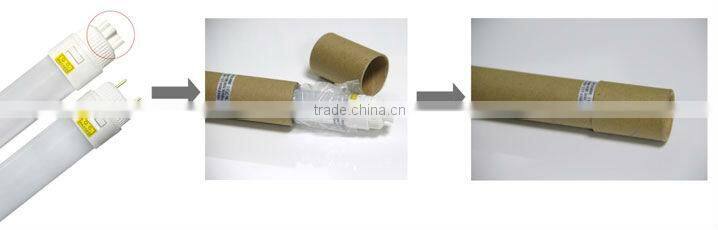

Packing Information

Length	Single Box Packing			Carton Package
Length	QTY/Box	Box Size	Volume Weight	QTY/CTN	Carton Size	G.W.	Volume Weight
180cm	1 pcs	40x1845mm	0.495kg	25pcs	1845218220mm	26.5kgs	17.69kgs

Warranty

3-year warranty since the date of purchase is offered for all Standard T8 LED Tube Light.

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.

2. GLITTER will provide paid maintenance service under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service, GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.

4. GLITTER reserves the right for final explanation of aforesaid terms.

Caution: GLITTER will not be responsible for any other failure or damage by incorrect usage.
