Home > Lights & Lighting > LED Interior Lighting > LED Down Light > 3inch 15W Sharp COB1215 Fire Rated 80 Lm/w 15w Square Cob Led Downlight With SAA/C-Tick/CE/CB Approved

3inch 15W Sharp COB1215 Fire Rated 80 Lm/w 15w Square Cob Led Downlight With SAA/C-Tick/CE/CB Approved

3inch 15W Sharp COB1215 Fire Rated 80 Lm/w 15w Square Cob Led Downlight With SAA/C-Tick/CE/CB Approved thumbnail-1
3inch 15W Sharp COB1215 Fire Rated 80 Lm/w 15w Square Cob Led Downlight With SAA/C-Tick/CE/CB Approved photo-1
US$ 20 - 26 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Sharp COB1215
Warranty(Years):
5
Input Voltage(V):
220
Contact Supplier Request Quote Chat Now
Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Sharp COB1215
Warranty(Years) 5
Input Voltage(V) 220
Lamp Power(W) 15
Lamp Luminous Flux(lm) 1300
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50.000
Lamp Body Material Aluminum Alloy
IP Rating IP44
Certification C-tick, GS, PSE, SAA
Model Number CL-C2-15W
Brand Name Glitter

Specifications

1.15W fire rated 15w square cob led downlight
2.Sharp COB 1215, Fire Rated, CE Approved
3.80 lm/w, CRI>85

3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved

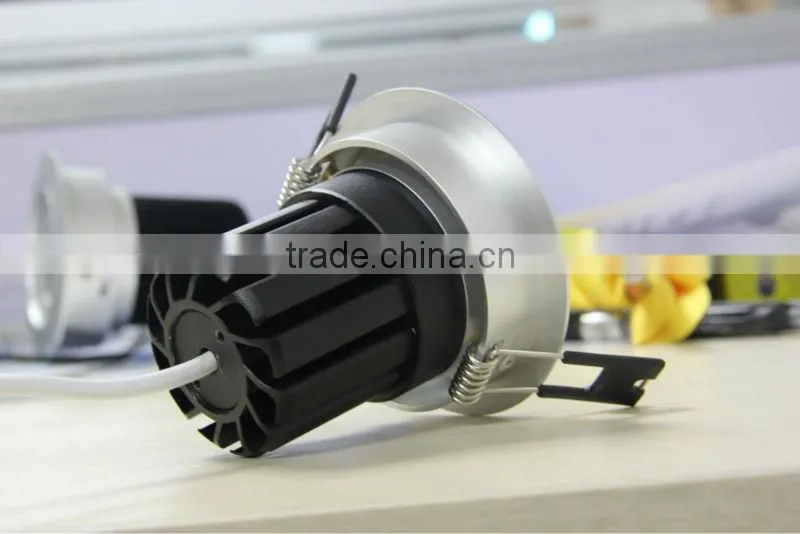

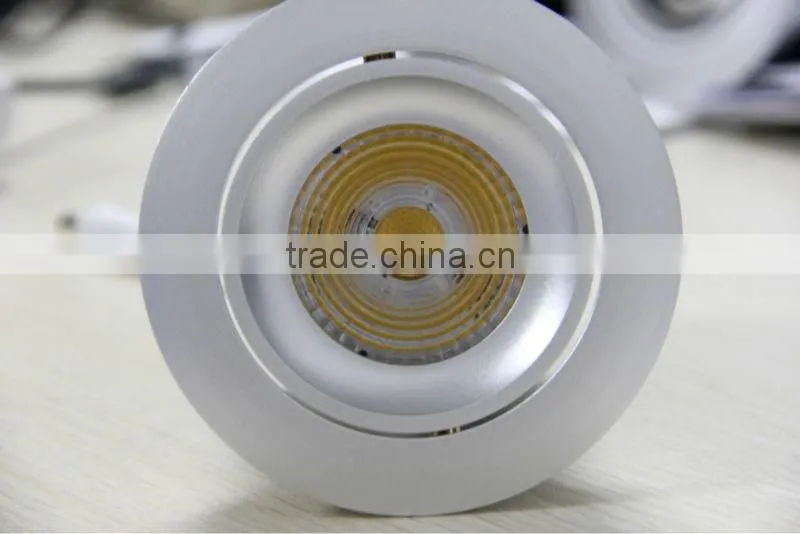

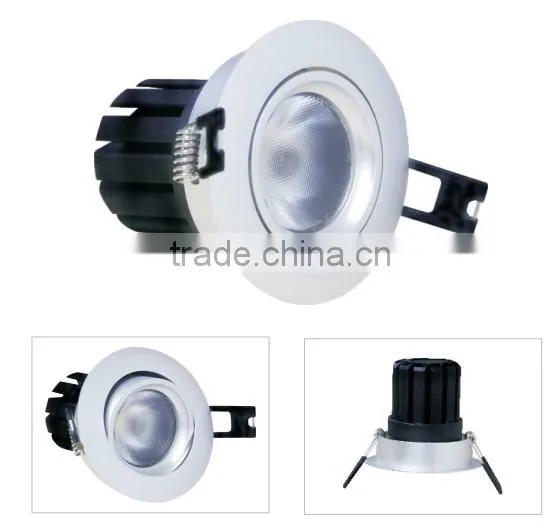

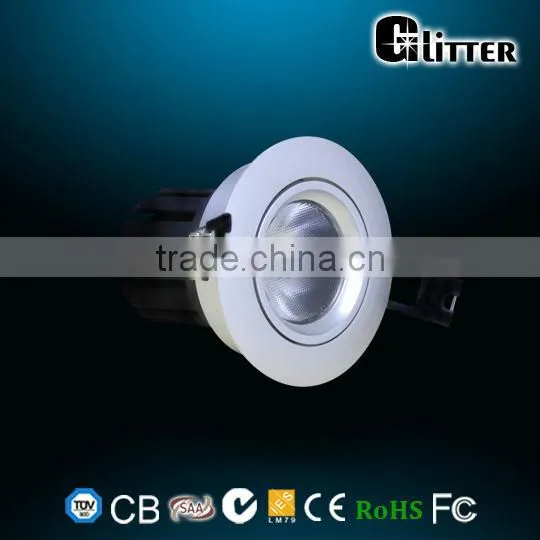

GLITTER COB LED Ceiling Lamp use COB1215 as the light source and aluminum alloy for the shell.

The external cover is oxidation brushed finishing and high -polished,which can ensure the outstanding performance of Heat Dissipation but also with elegant appearance.
Meanwhile, the main features include low heat,lower power consumption, energy saving, long lifespan etc. White, Warm white and Cool white are available.

 It is easy to install and use with external LED transformer.



Feature:



(1)1070 AL Housing

(2) Cold Forging Heat Dissipation Tech

(3) Thermal Conductivity:2.6

(4) Unique Lens Just For Perfect Replacement Of Haloge

(5) SHARP COB

(6) Adjustable light angel

(7) Fire-Proof, Vo Class

(8) Isolated Driver, CB,GS,SAA approval



3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved



Dimension(Unit:mm)
3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved

Technical Specification

1: Electronical Data

No. Item Description
1 Dimension Ø96x90mm
2 Construction Hole Size Ø85mm
3 Voltage AC85-265V
4 Current Frequency 50/60 Hz
5 Power 15W
6 LED Type & Qty 1pcs COB1215
7 Beam Angle 15 25 35 60 degree
8 Color Temp. Warm white 3000K
Neutral white 4000K
Cool white 5000K
9 Lumen Warm white >1100lm
Neutral white >1200lm
Cool white >1250lm
10 Color Rendering Index >80
11 Material The acrylic lens, Housing:Aluminum 1070
12 Operating temperature -20~+50 °C
13 Humidity 20-85%
14 Certificate CE, RoHS, SAA, TUV
15 Luminaires Class Ⅲ


2: Light Distribution Curve & Max CD Distribution Curve

3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved

3. Illumination Diameter

3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved

3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved 3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved

Packing Information:

Item    Single Box Packing      Carton Package
  QTY/Box Box Size G.W. QTY/CTN Carton Size G.W. Volume Weight
CL-C2-15W 1pcs 135*135*100mm 0.45KG 40pcs 710*300*440mm 17.85kg 18.75kg


Safety Assurance:

1. Insulation Resistance
The IR shall be at least 50MΩ when apply 500Vdc between primary and secondary

2. Dielectric Strength (Hi-pot)
Input To Output 3750Vac 60Hz 1minute ≤3MA
When AC voltage of 3.75KV is applied, and the voltage applied to the insulation under test is gradually raised from zero to the prescribed voltage in 1s, and held at that value for 60s
between the inputs.and output and between the input and housing, the current sensitivity shall be le ss than 5mA. After this test, the adapter shall exhibit no electrical and mechanical
abnormalities.

3. Leakage Current
The leakage current shall be less than 0.25m A for class II when power supply is operate maximum input voltage and maximum load.

4. Safety Standard
IEC:60598-1:2008
EN60598-1/A11:2009
IEC61347-1/A1:2010
EN61347-2-13:2006
IEC61347-2-13:2006
EN61347-1/A1:2011
IEC62031:2008
EN62031:2008
IEC62471:2006 IEC62471-2:2009 Passed:
EN62471:2008 EN61195:1999 EN62493:2010: Passed

5. EMI/EMS Standard
EN55015: Passed
EN61000-3-2: Passed
EN61000-4-2: Passed



Application

Hotels, Display, Shopping Mall,Gym, Underground Parking,Corridors, Exhibitions, Clubs.
Family illumination and other indoor lighting.



3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved



Certificates:

3inch 15W Sharp COB1215 fire rated 80 lm/w 15w square cob led downlight with SAA/C-Tick/CE/CB approved



Ageing Test(18-24 hours):


Warranty

3-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.

2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.

4. GLITTER reserves the rights for final explanation of aforesaid terms.

Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.



Any colors, any logo acceptable. Leave an inquiry to know more details about pricing, packing shipping and discount.
