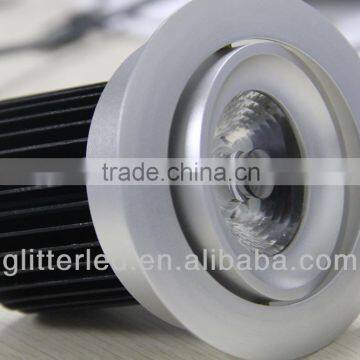

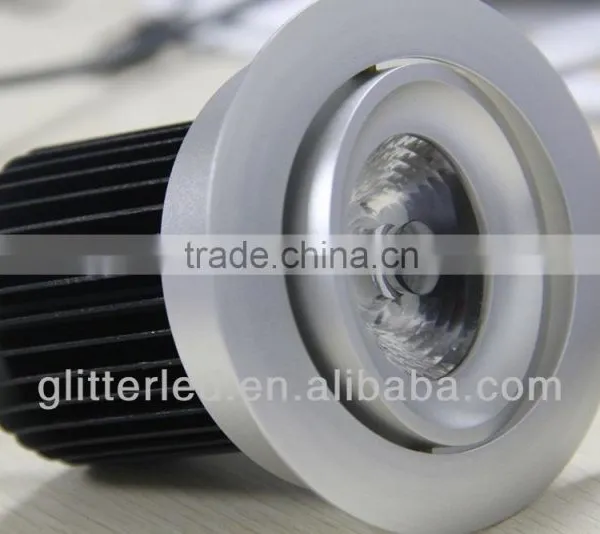

25W 8"Fire-Rated Round LED Cob Downlight With 200mm Hole Size

Shenzhen Glitter Optoelectronic Technology Co., Ltd.
25W 8"Fire-Rated Round LED Cob Downlight With 200mm Hole Size thumbnail-1
25W 8"Fire-Rated Round LED Cob Downlight With 200mm Hole Size photo-1
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
Sharp COB1215
Warranty(Years):
5
Input Voltage(V):
85-265
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Sharp COB1215
Warranty(Years) 5
Input Voltage(V) 85-265
Lamp Power(W) 10
Lamp Luminous Flux(lm) 800
Lamp Luminous Efficiency(lm/w) 75
Color Temperature(CCT) Other, 2700K-7000K
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 40000
Lamp Body Material Aluminum
IP Rating IP44
Certification CE, C-tick, PSE, SAA
Model Number SHARP COB Downlight CL-C1-10W
Place of Origin Guangdong, China
Brand Name GLITTER

Specifications

Advantages COB Downlight Series
* 1070 AL Housing,SHARP COB
* Adjustable light angel,Fire-Proof
* DriverCB,GS,SAA approval

Products Information

SHARP COB Downlight CL-C1-10W

Feature:

GLITTER COB LED Ceiling Lamp use COB1215 as the light source and aluminum alloy for the shell.

The external cover is oxidation brushed finishing and high -polished,which can ensure the outstanding performance of Heat Dissipation but also with elegant appearance.
Meanwhile, the main features include low heat,lower power consumption, energy saving, long lifespan etc.
White, Warm white and Cool white are available.



It is easy to install and use with external LED transformer.

25W 8"Fire-Rated Round LED cob downlight with 200mm hole size




Application

Hotels, Display, Shopping Mall,Gym, Underground Parking,Corridors, Exhibitions, Clubs.
Family illumination and other indoor lighting.
 ,
Dimension(Unit:mm)


25W 8"Fire-Rated Round LED cob downlight with 200mm hole size
Technical Specification

1: Electronical Data

No.ItemDescription
1DimensionØ86x78mm
2Construction Hole SizeØ75mm
3VoltageAC85-265V
4Current Frequency50/60 Hz
5Power10W
6LED Type & Qty1pcs COB1215
7Beam Angle15 25 35 60 degree
8Color Temp.Warm white3000K
Neutral white4000K
Cool white5000K
9LumenWarm white>750lm
Neutral white>750lm
Cool white>800lm
10Color Rendering Index>80
11MaterialThe acrylic lens, Housing:Aluminum 1070
12Operating temperature-20~+50 °C
13Humidity20-85%
14CertificateCE, RoHS, SAA, TUV
15Luminaires ClassⅢ


2: Light Distribution Curve & Max CD Distribution Curve


25W 8"Fire-Rated Round LED cob downlight with 200mm hole size
3. Illumination Diameter


25W 8"Fire-Rated Round LED cob downlight with 200mm hole size
Packing Information:

ItemSingle Box PackingCarton Package
QTY/BoxBox SizeG.W.QTY/CTNCarton SizeG.W.Volume Weight
CL-C1-10W1pc135x135x100 mm0.45kg40pcs710x300x440 mm17.85kg

18.75kg

Safety Assurance:

1. Insulation Resistance
The IR shall be at least 50MΩ when apply 500Vdc between primary and secondary

2. Dielectric Strength (Hi-pot)
Input To Output 3750Vac 60Hz 1minute ≤3MA
When AC voltage of 3.75KV is applied, and the voltage applied to the insulation under test is gradually raised from zero to the prescribed voltage in 1s, and held at that value for 60s
between the inputs.and output and between the input and housing, the current sensitivity shall be le ss than 5mA. After this test, the adapter shall exhibit no electrical and mechanical
abnormalities.

3. Leakage Current
The leakage current shall be less than 0.25m A for class II when power supply is operate maximum input voltage and maximum load.

4. Safety Standard
IEC:60598-1:2008
EN60598-1/A11:2009
IEC61347-1/A1:2010
EN61347-2-13:2006
IEC61347-2-13:2006
EN61347-1/A1:2011
IEC62031:2008
EN62031:2008
IEC62471:2006 IEC62471-2:2009 Passed:
EN62471:2008 EN61195:1999 EN62493:2010: Passed

5. EMI/EMS Standard
EN55015: Passed
EN61000-3-2: Passed
EN61000-4-2: Passed

Warranty

3-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.

2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.

4. GLITTER reserves the rights for final explanation of aforesaid terms.

Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.
